  • The structure of each port of this patch panel is same which makes sure that the performance of each port is consistent.
  • According to the standard of ISO/IEC 11801:2000 CLASS D and ANSI/TIA/EIA/568B Cat.5e standard. T568A punching sequence and T568B punching sequence are both compatible. Fitting for horizontal distribution in the equipments room and equipments connecting.
  • Connecting: FCC port for Cat.5e UTP patch cord and IDC for horizontal distribution cables.
  • Compatibility: Compatible for UTP Cat.5e general cable distribution systems.
  • IDC: LSA type or dual use type for your choice.
manufacture:Patch Panel





Product

Number

Discription

   C512NL    (UTP Cat,5e)

   C612NL    (UTP Cat.6)

• LSA IDC

• 12 Port

• Carton size(mm):560*200*380

• Wall-Mounted type

   C624NL    (UTP Cat.6)

• LSA IDC

• 24 Port

• Carton size(mm):550*200*270

C624NLB (UTP Cat.6e)

• LSA IDC

• 24 Port

• Carton size(mm):530*290*320

• With Back Bar

   C524YL    (UTP Cat.5e)

   C624YL    (UTP Cat.6)

• LSA IDC

• 24 Port

• Carton size(mm):550*200*270

C516NTB (UTP Cat.6)

• LSA IDC

• 24 Port

• Carton size(mm):550*270*270

• With back bar

C6A24NTB (UTP Cat.6A)

• LSA or 110 IDC for your choice

• 24 Port

• Carton size(mm):530*290*320

• With Back Bar

C612NTB (UTP Cat.6)

• LSA or 110 IDC for your choice

• 12 Port

• Carton size(mm):530*290*320

• With Back Bar

   C516NT    (UTP Cat.5e)

• LSA or 110 IDC for your choice

• 16 Port

• Carton size(mm):530*290*320

 C618NTB  (UTP Cat.6)

• LSA or 110 IDC for your choice

• 18 Port

• Carton size(mm):550*200*270

• With Back Bar

 C524NT3  (UTP Cat.5e)

• LSA or 110 IDC for your choice

• 24 Port

• Carton size(mm):530*290*320

 C524NT4  (UTP Cat.5e)

• LSA or 110 IDC for your choice

• 24 Port

• Carton size(mm): 530*290*320

C524NTB (UTP Cat.5e)

C624NTB (UTP Cat.6)

• LSA or 110 IDC for your choice

• 24 Port

• Carton size(mm):530*290*320

• With Back Bar

   C524NT    (UTP Cat.5e)

• LSA or 110 IDC for your choice

• 24 Port

• Carton size(mm): 530*290*320

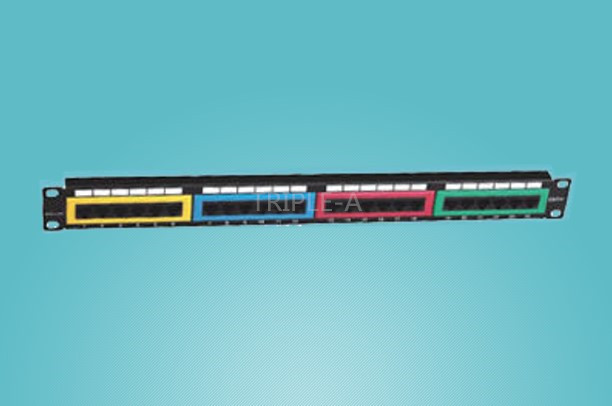

• Colorful Bezel

  C532CN   (UTP Cat.5e)

• LSA or 110 IDC for your choice

• 24 Port

• Carton size(mm):550*270*270

• Colorful Bezel

   C548NT    (UTP Cat.5e)

• LSA or 110 IDC for your choice

• 48 Port

• Carton size(mm):530*320*320

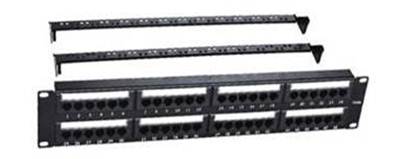

C548NTB (UTP Cat.5e)

C648NTB (UTP Cat.6)

• LSA or 110 IDC for your choice

• 48 Port

• Carton size(mm):530*320*320

• With Back Bar




NumberIDC TypePicking(Pcs)GW(KG)ColorQuantity
C512NLLSA IDC209.5Black
C512NLLSA IDC209.5Beige
C612NLLSA IDC209.5Black
C612NLLSA IDC209.5Beige
-----

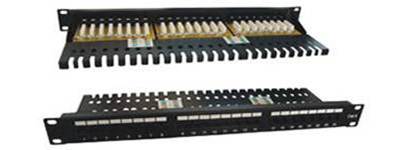

C624NLLSA IDC58.5Black
C624NLLSA IDC58.5Beige
-----

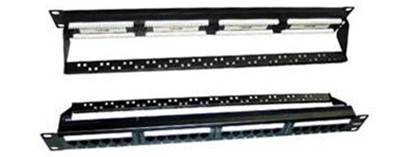

C624NLBLSA IDC1513Black
C624NLBLSA IDC1513Beige
-----
C524YLLSA IDC512Black
C524YLLSA IDC512Beige
C624YLLSA IDC512Black
C624YLLSA IDC512Beige
-----
C516NTBLSA IDC1013Black
C516NTBLSA IDC1013Beige
-----
C6A24NTB110 IDC1511.5Black
C6A24NTB110 IDC1511.5Beige
C6A24NTBLSA IDC1511.5Black
C6A24NTBLSA IDC1511.5Beige
-----
C612NTB110 IDC1510Black
C612NTB110 IDC1510Beige
C612NTBLSA IDC1510Black
C612NTBLSA IDC1510Beige
-----
C516NT110 IDC1510.5Black
C516NT110 IDC1510.5Beige
C516NTLSA IDC1510.5Black
C516NTLSA IDC1510.5Beige
-----
C618NTB110 IDC512Black
C618NTB110 IDC512Beige
C618NTBLSA IDC512Black
C618NTBLSA IDC512Beige
-----
C524NT3110 IDC1512Black
C524NT3110 IDC1512Beige
C524NT3LSA IDC1512Black
C524NT3LSA IDC1512Beige
-----
C524NT4110 IDC1510.5Black
C524NT4110 IDC1510.5Beige
C524NT4LSA IDC1510.5Black
C524NT4LSA IDC1510.5Beige
-----
C524NTB110 IDC1511Black
C524NTB110 IDC1511Beige
C524NTBLSA IDC1511Black
C524NTBLSA IDC1511Beige
C624NTB110 IDC1511Black
C624NTB110 IDC1511Beige
C624NTBLSA IDC1511Black
C624NTBLSA IDC1511Beige
-----
C524NT110 IDC1512Black
C524NT110 IDC1512Beige
C524NTLSA IDC1512Black
C524NTLSA IDC1512Beige
-----
C532CN110 IDC109Black
C532CN110 IDC109Beige
C532CNLSA IDC109Black
C532CNLSA IDC109Beige
-----
C548NT110 IDC1013Black
C548NT110 IDC1013Beige
C548NTLSA IDC1013Black
C548NTLSA IDC1013Beige
-----
C548NTB110 IDC1013Black
C548NTB110 IDC1013Beige
C548NTBLSA IDC1013Black
C548NTBLSA IDC1013Beige
C648NTB110 IDC1013Black
C648NTB110 IDC1013Beige
C648NTBLSA IDC1013Black
C648NTBLSA IDC1013Beige




Features:
01.Entire high-carbon steel outer frame, with plastic powder cladding.
02.RJ45 jack frame material: PBT, golden plated phosphor bronze pins, Shielding shell of the RJ45 jack:
     Brass housing with nicket-plated; IDC clip: Tinned phosphor bronze pins.
03.Fitting for 22AWG/23AWG/24AWG cables, punching duration: 250 times. FCC ports inserting duration: 750
     times.
04.Cabling sequence: T568A & B.
05.Punching tool: Standard 110 tool for 110 IDC, Standard LSA tool for LSA IDC,Standard 110 tools or LSA
     tool for dual IDC
06.Testing condition of transmitting capability: 100MHz


Adjustable Drawer PP1061 P25AMTDC60
PE4C - EC100C v2.0 XCEX V1.1 P23S-P27F
BODW U0909A PE220-HP060A
