Wall Mount/ARW
ARW

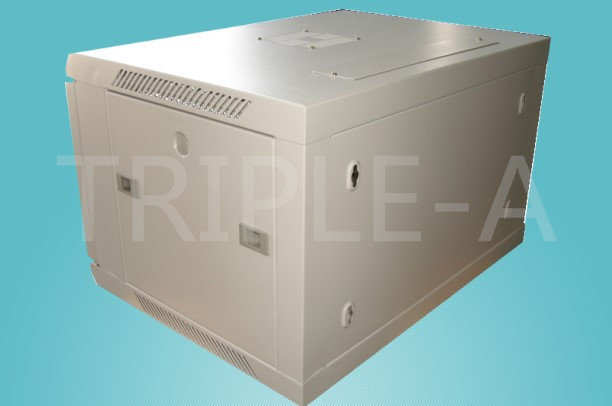

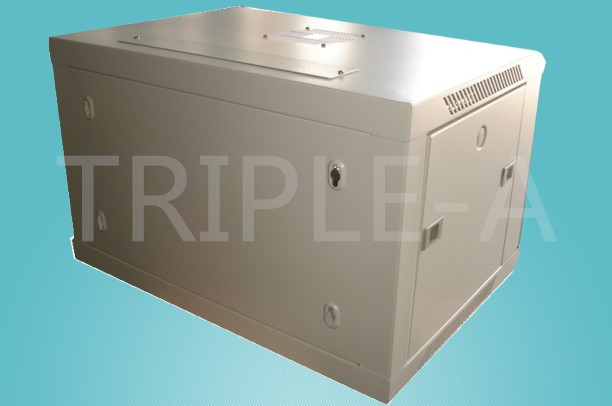

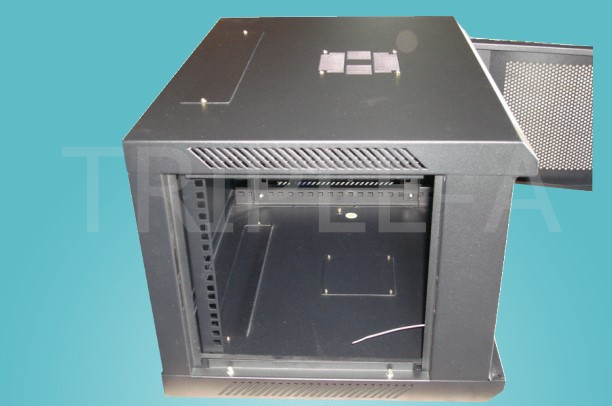

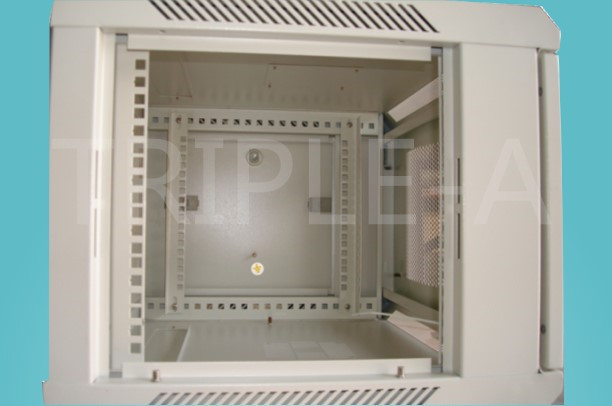

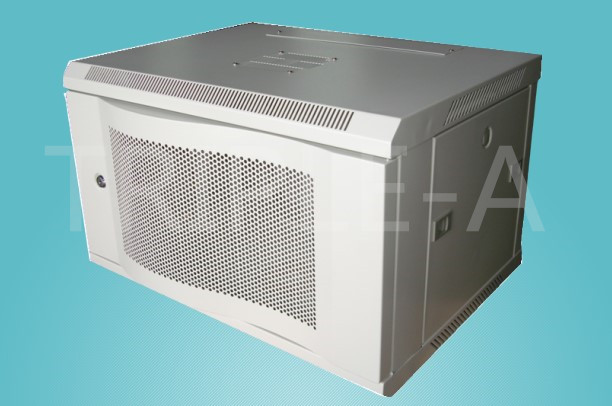

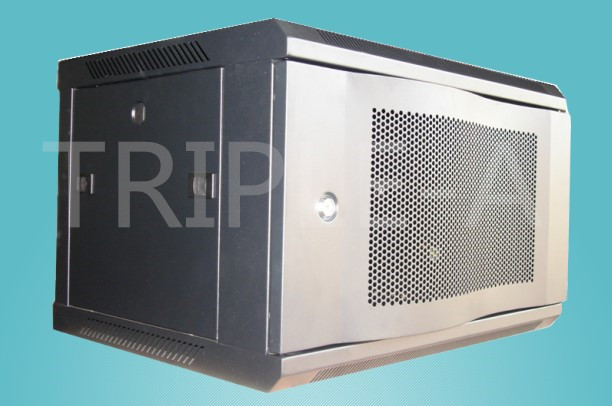

  • This refurbished 19in Wall Mounted Server Rack Cabinet is perfect for safely mounting routers, switches, media converters, and other networking equipment. Features a sturdy steel design and a vented tempered glass door to keep your equipment safe and cool.
  • Suited for server rooms, wiring closets, manufacturing areas, warehouses, or anywhere where networking equipment needs to be protected.
  • Ideal for housing LAN, WAN, phone, and voice mail equipment.
  • Designed to integrate wall-mounting, easy equipment access, and cable management in IT network applications with limited floor space.
  • Store your servers, network and telecommunications equipment securely in this refurbished 19"" wall-mountable rack.
  • Specifically designed for space-constrained applications.
manufacture:Cabinet





Packing :
Product're wrapped with plastic wrap and PU foam inside to protect the corner areas.
Top panel & front door are protected by Styrofoam or PU plate. Thick & High Quality carton or wooden box.
label on product.

Buyer can choose OEM or our standard:
Color of Rack: Black / Beige or other color like Blue / Yellow / Red / Orange
Top of fan hole: 1 or 2 Bottom of fan hole: 1 or 2
Side panel of luck

Please contact with us if you like to change anything for other parts and make sure your order,
also we have many difference type for your any new idea.



ItemHeightNumberWidth(mm)Depth(mm)Quantity
ARW18UARW-6618600600
ARW18UARW-6418600450
ARW15UARW-6615600600
ARW15UARW-6415600450
ARW12UARW-6612600600
ARW12UARW-6412600450
ARW9UARW-6609600600
ARW9UARW-6409600450
ARW6UARW-6606600600
ARW6UARW-6406600450



Features:
Meet IP20 Protection Grade
01.In accordance with ANSI/EIA;RS-310-D;IEC297-2;
01.DIN41491:PART1;DIN41494:PART7;GB/T3047.2-92 standard.
02.Material: SPCC high-quality cold roll steel.
03.Surface finish: degreasing, pickling, phosphoric, static electricity, power coat.

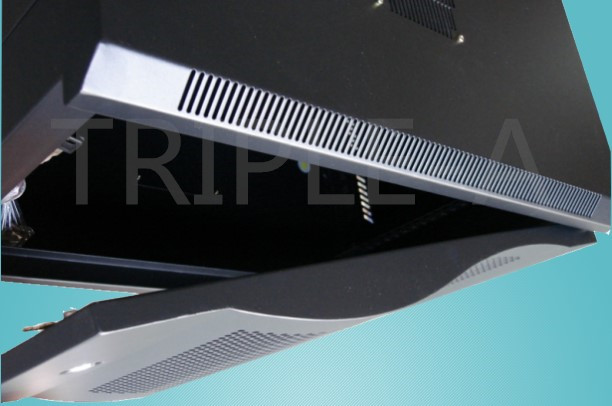

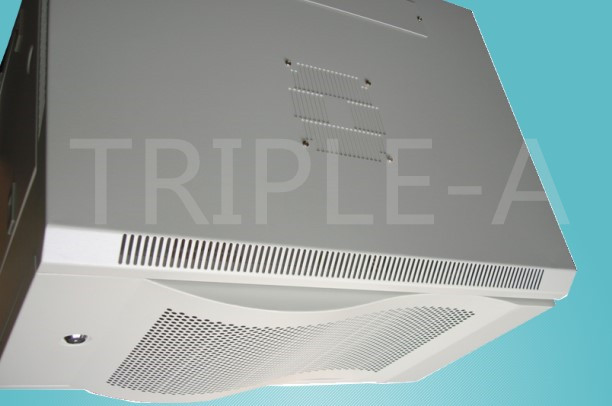

04.Top and Bottom cover with ventilation for cooling.
05.Upper and bottom hole with install fans.

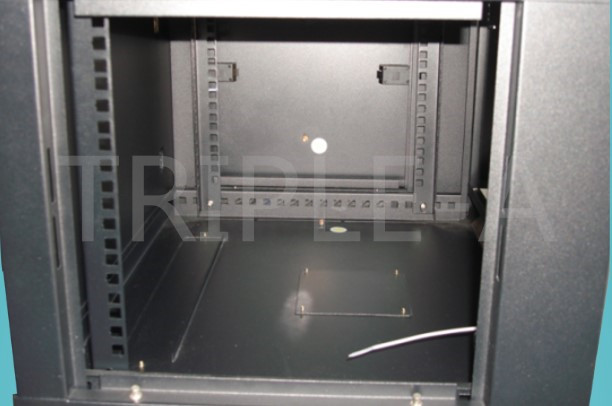

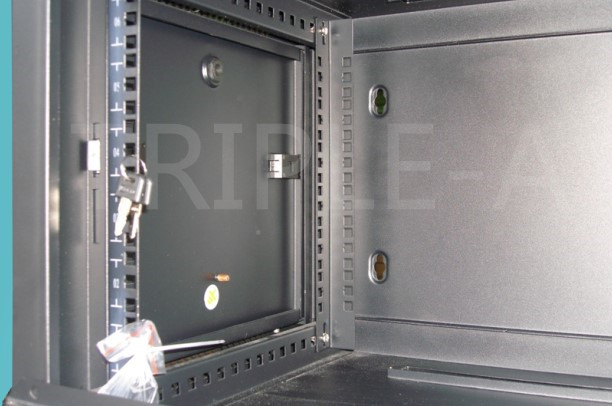

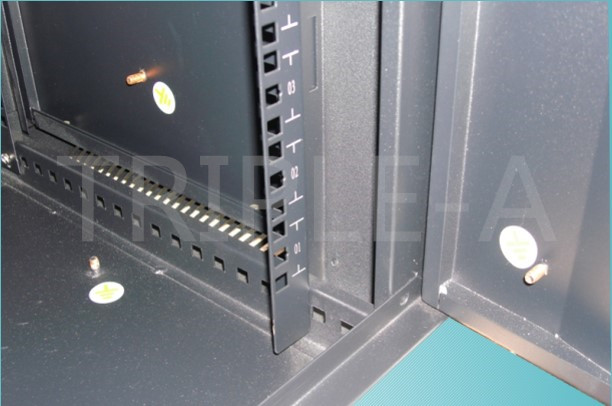

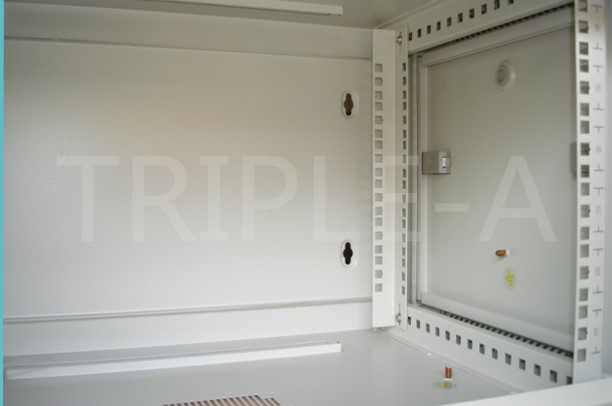

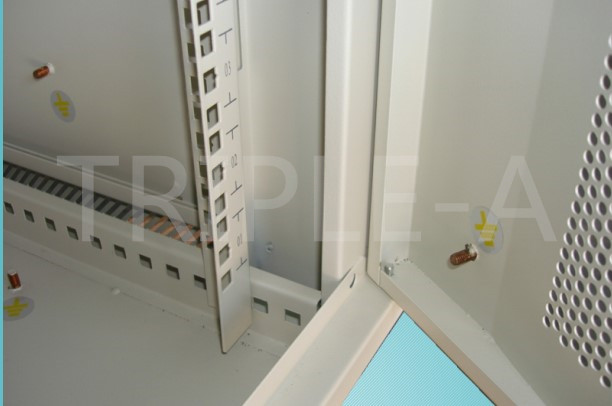

06.Adjustable rails 19”.

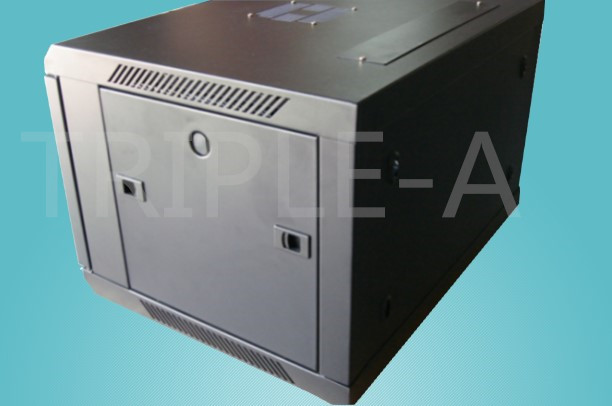

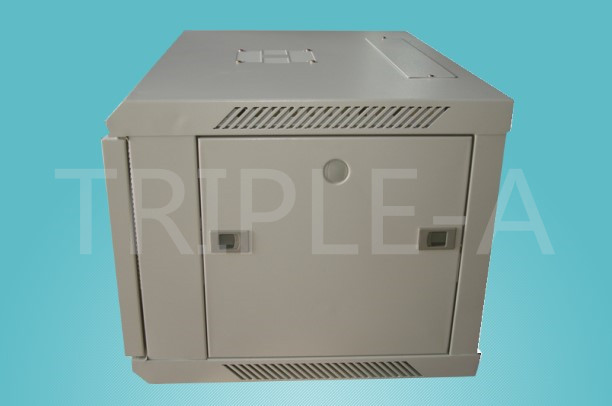

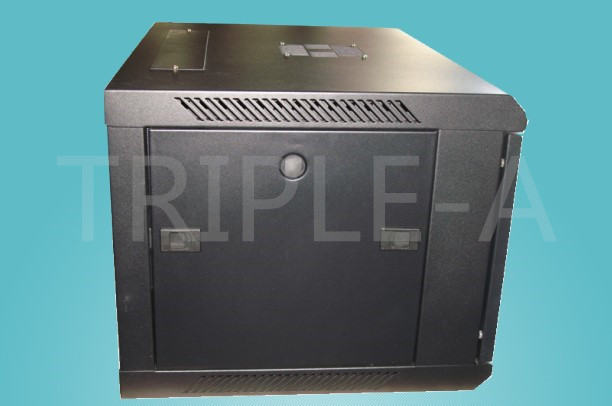

07.Quick release side panels with spring latch.
08.Multiple access at rear for cable.
09.Powder coat tough to reduce scratching and chipping.
10.Cage nuts and screws.

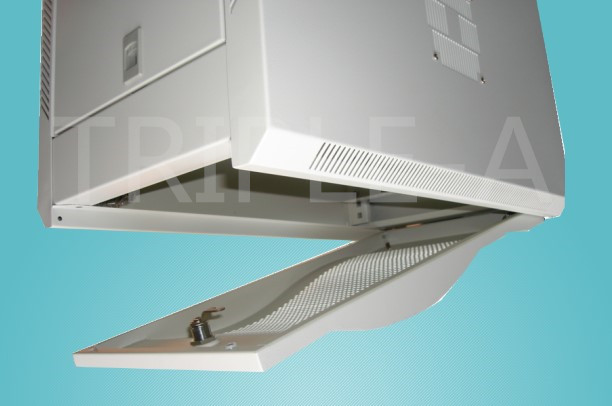

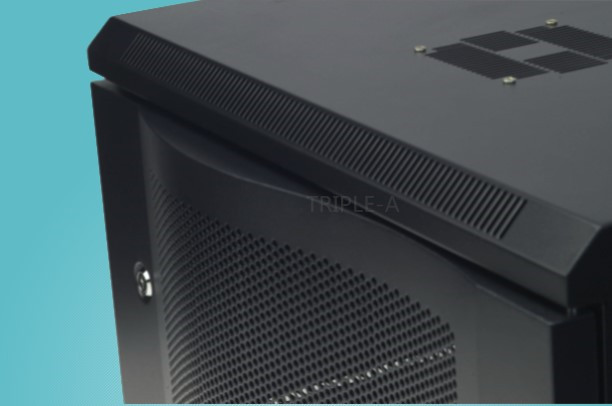

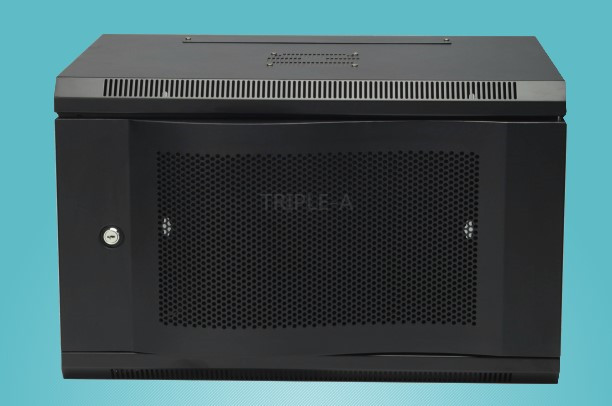

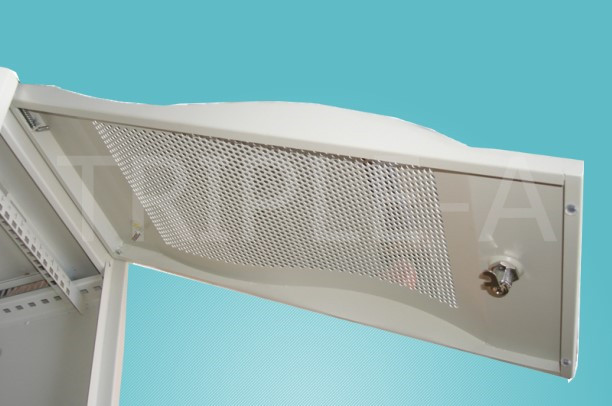

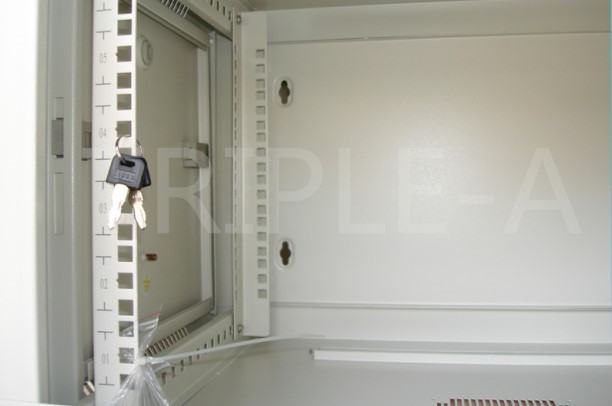

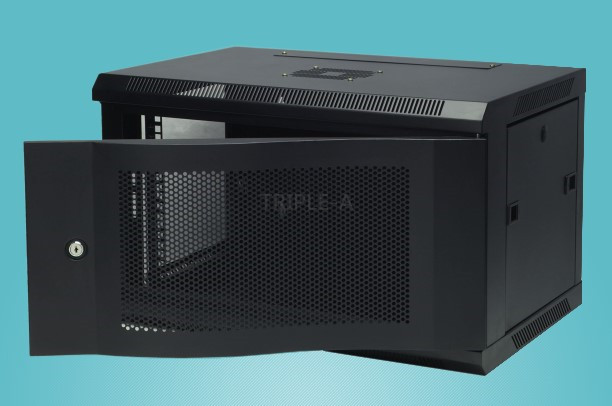

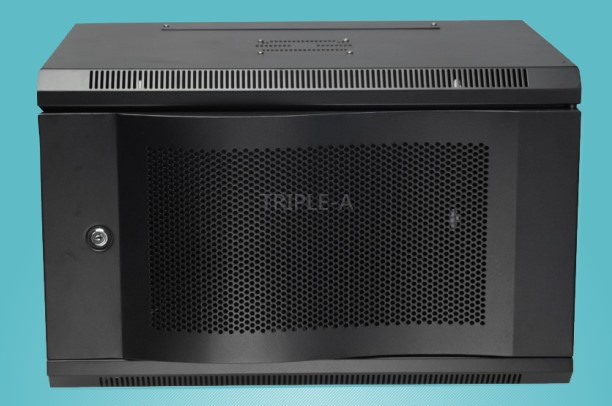

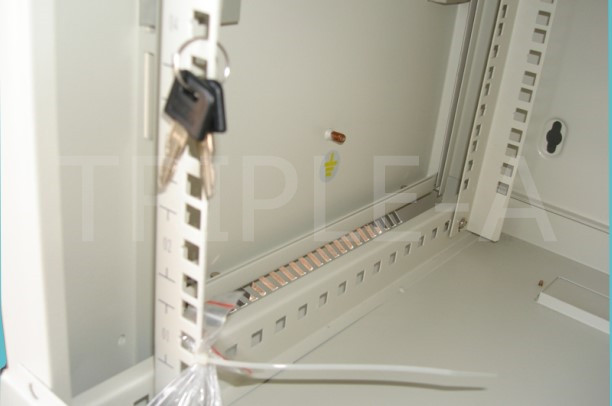

11.Wave Front Door with Security Key Lock.

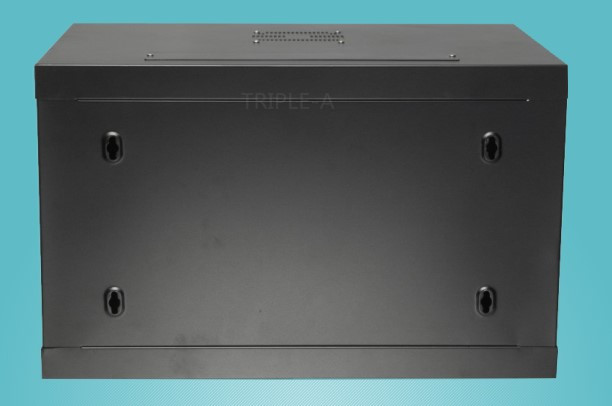

12.Wallmount or Desktop Standalone.
13.Excellent Air Ventilation Design with Optional Dual AC Cooling Fans.
