Outdoor/ODD

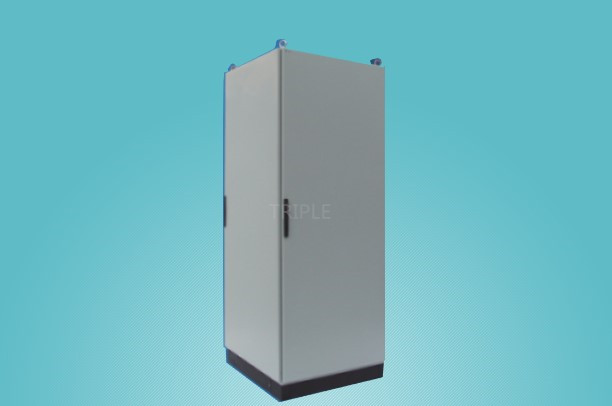

ODD

The main body is made of special structure steel and welded by 3-Tees. It is pure symmetrical around. The cabinet has two layers installation plane which make the installing standard. The accessories are compatible with 14 folds structure; there is more choice for you to do the inner installation.

The cabinet can achieve four sides opening. It gives the customers more choice to using the cabinet.

The installation panel can adjust the installation place what take 25mm as unit. The cabinet inside can also use mounting angle to make the installation easily.

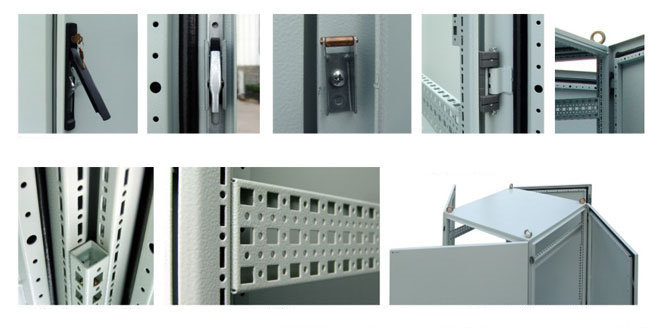

manufacture:Cabinet

01.The top cover and bottom panel are fixed by screws and nuts which make the installation and uninstall easy.

The installation in cabinet inside more convenience.

02.The special polyurethane gasket and three point lock make the cabinet be sealed well.IP54.

03.The three part bottom panels for input line hole are replaced, which can move freely. These can make the

cable entry easily.

04.It is easy to install and uninstall the base (optional accessories)

05.We can manufacture the cabinet according to the customer special requirements also.

Item NO.	Width(mm)	Depth(mm)	Height(mm)	Color
ODD-4684	600	400	1800	Black
ODD-4684	600	400	1800	Beige
ODD-4685	600	500	1800	Black
ODD-4685	600	500	1800	Beige
ODD-4686	600	600	1800	Black
ODD-4686	600	600	1800	Beige
ODD-4688	600	800	1800	Black
ODD-4688	600	800	1800	Beige
ODD-4604	600	400	2000	Black
ODD-4604	600	400	2000	Beige
ODD-4605	600	500	2000	Black
ODD-4605	600	500	2000	Beige
ODD-4606	600	600	2000	Black
ODD-4606	600	600	2000	Beige
ODD-4608	600	800	2000	Black
ODD-4608	600	800	2000	Beige
ODD-4624	600	400	2200	Black
ODD-4624	600	400	2200	Beige
ODD-4625	600	500	2200	Black
ODD-4625	600	500	2200	Beige
ODD-4626	600	600	2200	Black
ODD-4626	600	600	2200	Beige
ODD-4628	600	800	2200	Black
ODD-4628	600	800	2200	Beige
ODD-4884	800	400	1800	Black
ODD-4884	800	400	1800	Beige
ODD-4885	800	500	1800	Black
ODD-4885	800	500	1800	Beige
ODD-4886	800	600	1800	Black
ODD-4886	800	600	1800	Beige
ODD-4888	800	800	1800	Black
ODD-4888	800	800	1800	Beige
ODD-4804	800	400	2000	Black
ODD-4804	800	400	2000	Beige
ODD-4805	800	500	2000	Black
ODD-4805	800	500	2000	Beige
ODD-4806	800	600	2000	Black
ODD-4806	800	600	2000	Beige
ODD-4808	800	800	2000	Black
ODD-4808	800	800	2000	Beige
ODD-4824	800	400	2200	Black
ODD-4824	800	400	2200	Beige
ODD-4825	800	500	2200	Black
ODD-4825	800	500	2200	Beige
ODD-4826	800	600	2200	Black
ODD-4826	800	600	2200	Beige
ODD-4828	800	800	2200	Black
ODD-4828	800	800	2200	Beige
ODD-4084	1000	400	1800	Black
ODD-4084	1000	400	1800	Beige
ODD-4085	1000	500	1800	Black
ODD-4085	1000	500	1800	Beige
ODD-4086	1000	600	1800	Black
ODD-4086	1000	600	1800	Beige
ODD-4088	1000	800	1800	Black
ODD-4088	1000	800	1800	Beige
ODD-4004	1000	400	2000	Black
ODD-4004	1000	400	2000	Beige
ODD-4005	1000	500	2000	Black
ODD-4005	1000	500	2000	Beige
ODD-4006	1000	600	2000	Black
ODD-4006	1000	600	2000	Beige
ODD-4008	1000	800	2000	Black
ODD-4008	1000	800	2000	Beige
ODD-4024	1000	400	2200	Black
ODD-4024	1000	400	2200	Beige
ODD-4025	1000	500	2200	Black
ODD-4025	1000	500	2200	Beige
ODD-4026	1000	600	2200	Black
ODD-4026	1000	600	2200	Beige
ODD-4028	1000	800	2200	Black
ODD-4028	1000	800	2200	Beige
ODD-4284	1200	400	1800	Black
ODD-4284	1200	400	1800	Beige
ODD-4285	1200	500	1800	Black
ODD-4285	1200	500	1800	Beige
ODD-4286	1200	600	1800	Black
ODD-4286	1200	600	1800	Beige
ODD-4288	1200	800	1800	Black
ODD-4288	1200	800	1800	Beige
ODD-4204	1200	400	2000	Black
ODD-4204	1200	400	2000	Beige
ODD-4205	1200	500	2000	Black
ODD-4205	1200	500	2000	Beige
ODD-4206	1200	600	2000	Black
ODD-4206	1200	600	2000	Beige
ODD-4208	1200	800	2000	Black
ODD-4208	1200	800	2000	Beige
ODD-4224	1200	400	2200	Black
ODD-4224	1200	400	2200	Beige
ODD-4225	1200	500	2200	Black
ODD-4225	1200	500	2200	Beige
ODD-4226	1200	600	2200	Black
ODD-4226	1200	600	2200	Beige
ODD-4228	1200	800	2200	Black
ODD-4228	1200	800	2200	Beige
