Outdoor/ODS
ODS

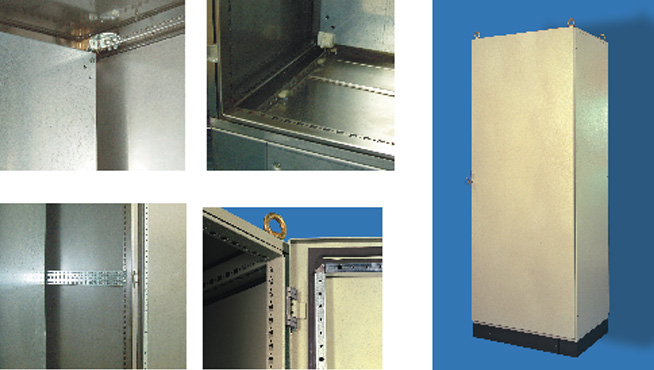

  • The main frame is made of nine folds structure and welded by special3-Tees. Fine appearance and firmed configuration.
  • The distance between the lower rim of the cabinet and the ground is about 25mm; there are round holes in each 25MM distance on the upper board. Which can not only strengthen the stress of the door but also can install other accessories.
  • The installation panel takes 25mm distance as unit that can be moved fore-and-aft and adjust the depth.
  • There are round holes and square holes in each 25mm distance on the nine folds structure frame which can make the inner installation and fixed machine easily.
manufacture:Cabinet



01.The top cover, side panel, rear panel and bottom panel are all fixed by screws which is easy for installing and
     uninstalling; the installation in cabinet inside is more convenience.
02.The cabinet be processed by professional Automatic polyurethane gasket filling machine and using 3 points
     lock which can make sure the cabinet be sealed well.IP55.
03.The three part bottom panels for input line hole are replaced. Which can move freely. These can make the
     cable entry easily.
04.It is easy to install and uninstall the base (optional accessories)
05.Optional accessories.
06.We can manufacture the cabinet according to the customer special requirements also.





Item NO.Width(mm)Depth(mm)Height(mm)ColorQuantity
ODS-46846004001800Black
ODS-46846004001800Beige
ODS-46856005001800Black
ODS-46856005001800Beige
ODS-46866006001800Black
ODS-46866006001800Beige
ODS-46886008001800Black
ODS-46886008001800Beige
ODS-46046004002000Black
ODS-46046004002000Beige
ODS-46056005002000Black
ODS-46056005002000Beige
ODS-46066006002000Black
ODS-46066006002000Beige
ODS-46086008002000Black
ODS-46086008002000Beige
ODS-46246004002200Black
ODS-46246004002200Beige
ODS-46256005002200Black
ODS-46256005002200Beige
ODS-46266006002200Black
ODS-46266006002200Beige
ODS-46286008002200Black
ODS-46286008002200Beige
ODS-48848004001800Black
ODS-48848004001800Beige
ODS-48858005001800Black
ODS-48858005001800Beige
ODS-48868006001800Black
ODS-48868006001800Beige
ODS-48888008001800Black
ODS-48888008001800Beige
ODS-48048004002000Black
ODS-48048004002000Beige
ODS-48058005002000Black
ODS-48058005002000Beige
ODS-48068006002000Black
ODS-48068006002000Beige
ODS-48088008002000Black
ODS-48088008002000Beige
ODS-48248004002200Black
ODS-48248004002200Beige
ODS-48258005002200Black
ODS-48258005002200Beige
ODS-48268006002200Black
ODS-48268006002200Beige
ODS-48288008002200Black
ODS-48288008002200Beige
ODS-408410004001800Black
ODS-408410004001800Beige
ODS-408510005001800Black
ODS-408510005001800Beige
ODS-408610006001800Black
ODS-408610006001800Beige
ODS-408810008001800Black
ODS-408810008001800Beige
ODS-400410004002000Black
ODS-400410004002000Beige
ODS-400510005002000Black
ODS-400510005002000Beige
ODS-400610006002000Black
ODS-400610006002000Beige
ODS-400810008002000Black
ODS-400810008002000Beige
ODS-402410004002200Black
ODS-402410004002200Beige
ODS-402510005002200Black
ODS-402510005002200Beige
ODS-402610006002200Black
ODS-402610006002200Beige
ODS-402810008002200Black
ODS-402810008002200Beige
ODS-428412004001800Black
ODS-428412004001800Beige
ODS-428512005001800Black
ODS-428512005001800Beige
ODS-428612006001800Black
ODS-428612006001800Beige
ODS-428812008001800Black
ODS-428812008001800Beige
ODS-420412004002000Black
ODS-420412004002000Beige
ODS-420512005002000Black
ODS-420512005002000Beige
ODS-420612006002000Black
ODS-420612006002000Beige
ODS-420812008002000Black
ODS-420812008002000Beige
ODS-422412004002200Black
ODS-422412004002200Beige
ODS-422512005002200Black
ODS-422512005002200Beige
ODS-422612006002200Black
ODS-422612006002200Beige
ODS-422812008002200Black
ODS-422812008002200Beige



Features:
01.Surface Treatment : Degreasing, phosphate, powder coating.
02.Material:Cold rolled steel or stainless steel
03.Color :
     Body color: RAL 7032
     Installing panel:RAL1003
     Base:RAL7022
