Cabinet/FE
FE
  • Specification:

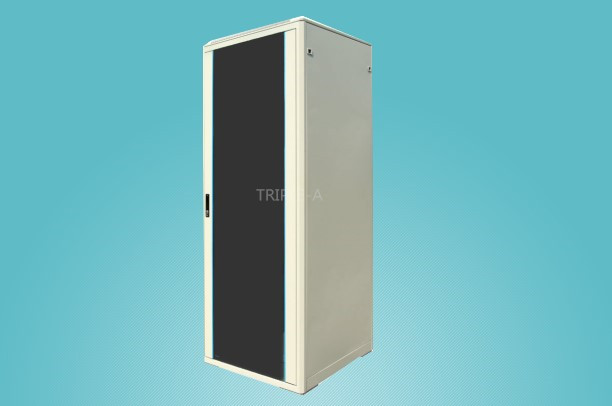

  • Constructed of heavy-duty steel for the ultimate server rack strength and stability Store servers, network and telecommunications equipment securely in this 19" solid steel rack
  • Reliable, space-saving solutions designed for organizing and securing server and networking applications. Suited for server rooms, wiring closets,manufacturing areas, warehouses, or anywhere where networking equipment needs to be protected. Ideal for housing LAN, WAN, phone, and voice mail equipment.
  • This modular cabinet helps save space in the server room and is designed to suit any server room footprint design, while housing any standard 19in rackmount equipment.

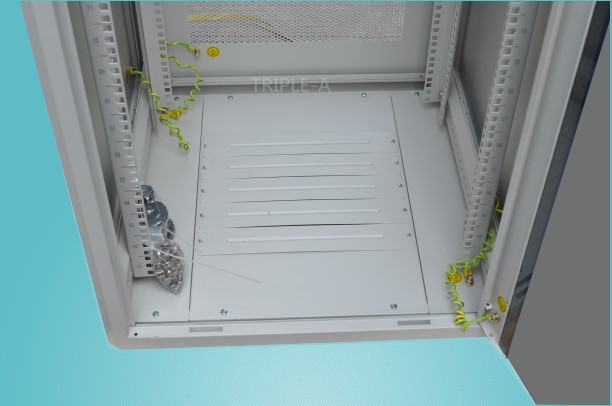

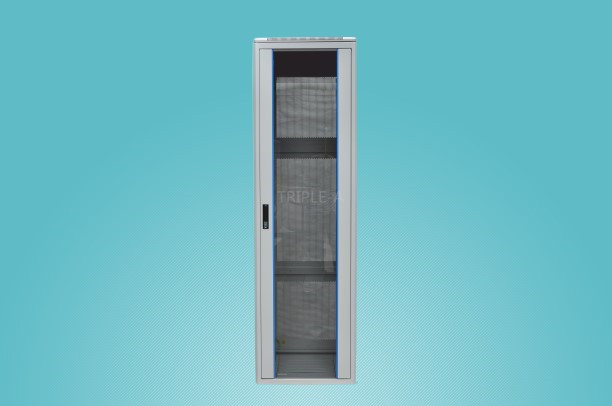

  • To help optimize ventilation, the cabinet offers steel mesh doors with wide perforation, and includes an integrated cable management system that helps keep the inside of the cabinet neat. Plus, the rack rail spacing is clearly marked, making it easy to plan and install equipment within the cabinet.
  • Includes lockable front and rear doors, and dual lock side doors
  • Front and rear doors easily removable and reversible
  • All steel, welded frame construction
  • Ships fully assembled
  • Sturdy, attractive, and secure server space
  • Arrives fully assembled and ready to go to work in your data center.
  • Removable side panels.
  • Vented top panel.
  • Generous cable access.
manufacture:Cabinet

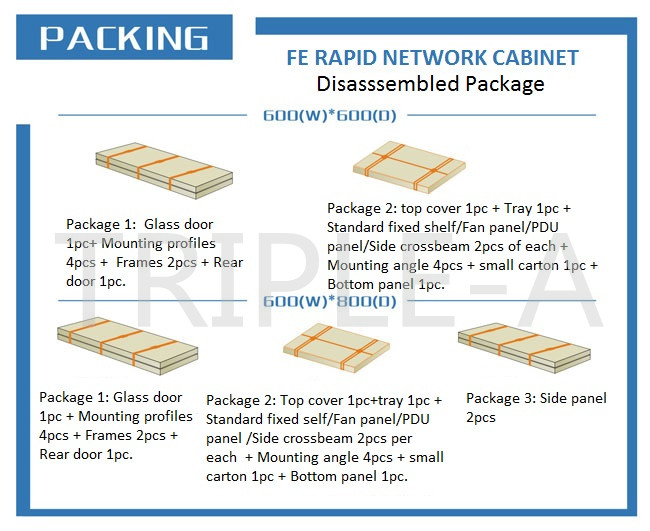

Packing :
Product're wrapped with plastic wrap and PU foam inside to protect the corner areas.
Top panel & front door are protected by Styrofoam or PU plate. Thick & High Quality carton or wooden box.
 label on product.

Buyer can choose OEM or our standard:
We can manufacture the cabinet according to the customer special requirements also.
Color of Rack: Black / Beige or other color like Blue / Yellow / Red / Orange
More fan, Side panel of luck, W/O side panel etc….

Please contact with us if you like to change anything for other parts and make sure your order,
also we have many difference type for your any new idea.





Features:
Meet IP20 Protection Grade
01.The items comply with ANSI/EIA; RS-310-D; IEC297-2; DIN41491(PART1); DIN41494(PART7);
01.GB/T3047.2-92 standard; compatible with ETSI standard.
02.High density vented undee single front door and double section rear door make the vented area
02.no less than 65% of the door area, the exquisite appearance.
02.The front door can choose international fashion color of tempered glass.
03.The side door can be installed and uninstalled quickly which make the working conveniently.
04.The cabinet can be installed castor and adjustable feet at one time which make the moving
04.and fixing easy.
05.The door hinge is interchangeable, top cable entry hole with rubber cover.
06.Material: SPCC high-quality cold roll steel
07.Surface finish: degreasing, pickling, phosphoric, static electricity, power coat.

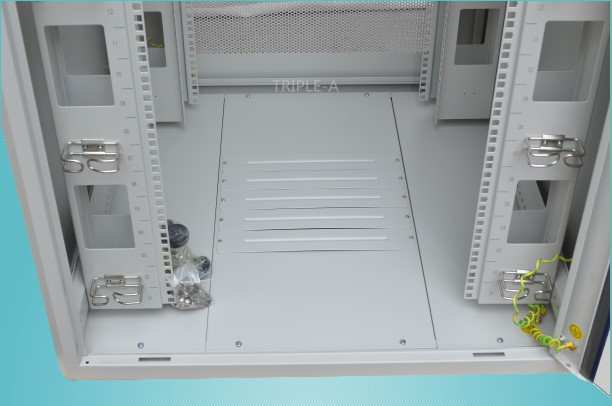

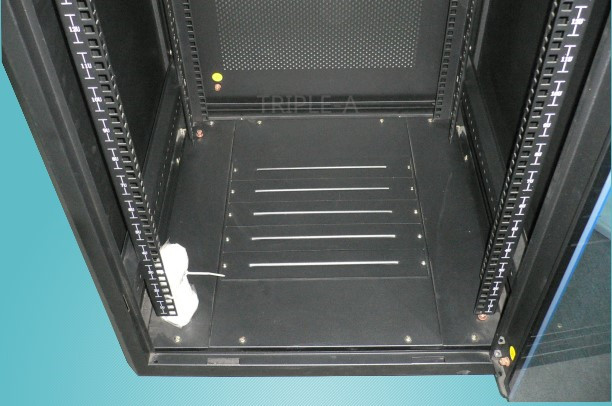

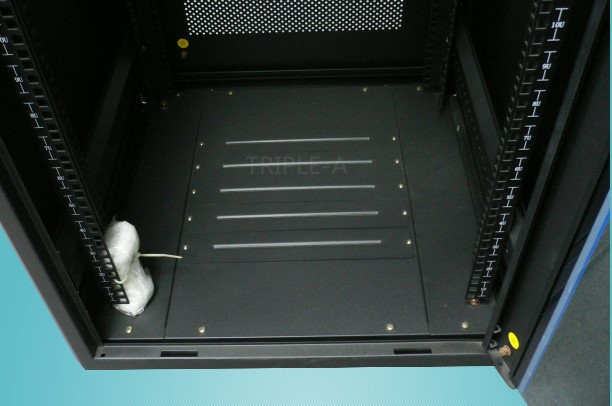

08.Vertical mounting rails offer a square hole universal mount (EIA-310) for any brand server

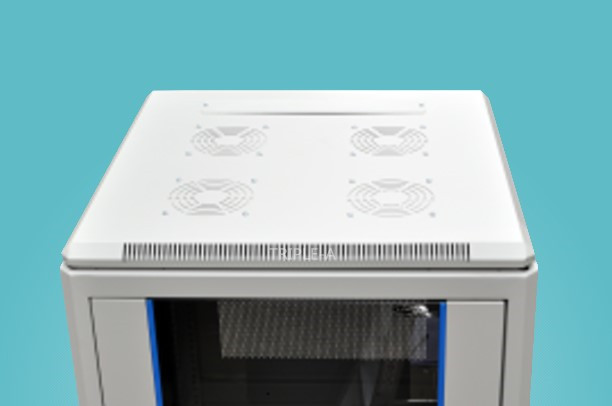

09.Top and Bottom cover with ventilation for cooling.
10.Upper and bottom hole with install fans.
11.Adjustable rails 19”.
12.Quick release side panels with spring latch
13.Several lockable cable entrances on the top/bottom plate
14.Powder coat tough to reduce scratching and chipping.
15.Cage nuts and screws.

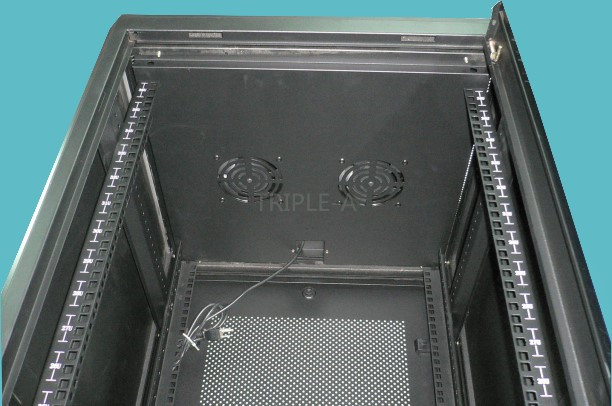

16.Excellent Air Ventilation Design with Optional Dual AC Cooling Fans
17.Split rear door minimizes the required access space behind the cabinet

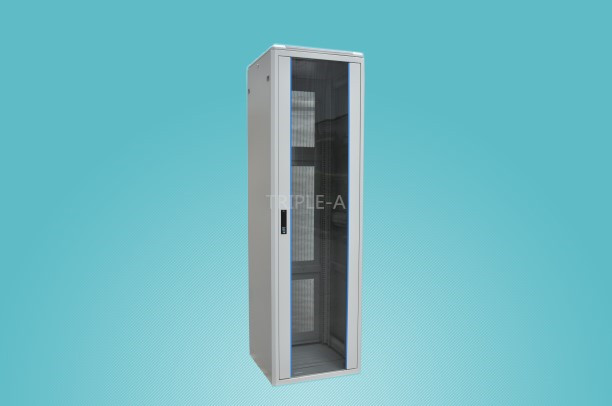

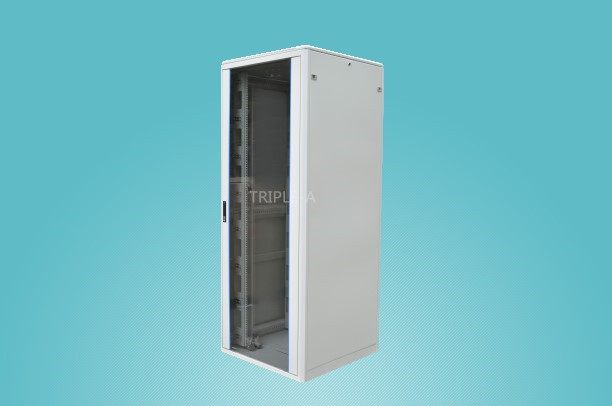

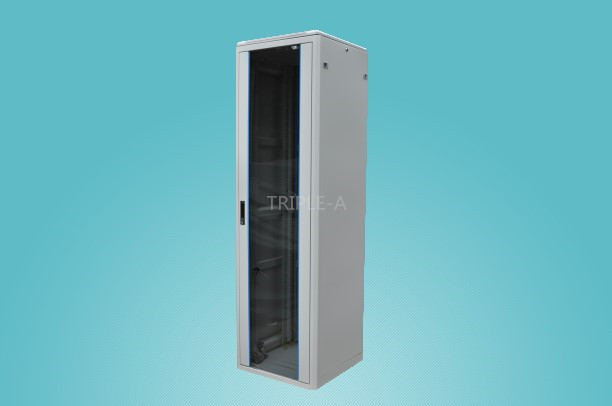

18.Enforced Strengthen Glass Front Door with Security Key Lock
