LCD KVM/TA-17T/19T

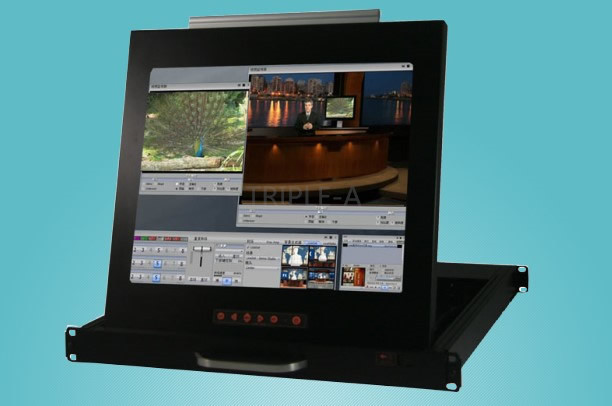

TA-17T/19T

The main application in half-height cabinet, TA-17T/19T integrates 17" or 19" LCD, touchpad to 1U high rack mountable, with saving much space of the unit.

For instance, it could be used in the travelling multifunctional studio system, live programming system of the Radio and TV field.

It is easy for live exchanging broadcast, live Webcast, live programming and so on through integrating the Radio and TV professional equipment as a monitoring and controller.

manufacture:KVM

Product Introduction:

TA-17T/19T integrates 17"or 19" LCD, touchpad in 1U high rack mountable, It is mainly used in semi-high

cabinet, which also saves much space of the cabinet. It can be used in the Mobile Multi-function Broadcasting

System and Live Programming System inRadio and TV Industry. As a monitoring and control unit, you can

easily to achieve the live broadcast cut , live webcast, live programming and other functions via professional

integrated radio and television equipment.

Item	Size	Number	AC	Port
TA-170	17"	TA-170	100V-240V AC	1 port
TA-190	19"	TA-190	100V-240V AC	1 port
TA-17T	17"	TA-17T	100V-240V AC	1 port
TA-19T	19"	TA-19T	100V-240V AC	1 port

Features:

Function		Model
		TA-17T	TA-19T
Computer Connectors		1	1
Connect port		1x DB-15M	1x DB-15M
		1 x DB-15M	1xUSB
Display OSD language		7kinds	7kinds
LCD	Resolution	17" LCD: 1280 x 1024 ; DDC2B
		19" LCD: 1280 x 1024; DDC2B
	Contrast Ratio	17" LCD: 300cd/m²&800~1
		19" LCD: 300cd/m²&700~1
Input pressure		100V-240V 47-63Hz
Power	17" LCD	30W
	19" LCD	35W
Operating Temperature		0⊥ ‵50⊥
Storage Temperature		-20⊥ ‵60⊥
Humidity		0% ‵80% RH
Material		Metal
Color		Black
dimension (L℅W℅H)		570x 480x 44mm(19"1U)

Fan
