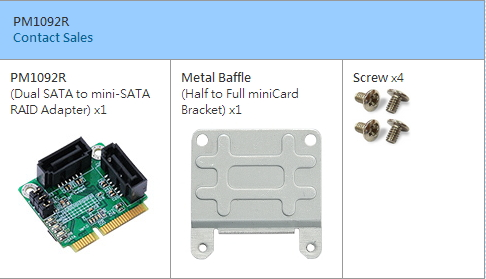

PM1092R

(Dual SATA to mini-SATA RAID Adapter)

manufacture:Bplus

First Impression

PM1092R adapter enables two SATA device to mSATA by RAID function in the laptop PC or desktop PC. Once installed, the SATA device in some RAID mode with faster or more reliable RAID functions, low power consumption, fast access time and completely shock resistant.

Function

Allows user to use standard SATA device to mSATA in the Desktop or Laptop

RAID mode : JBOD (Port Multiplier ), RAID0 (Striping/Fast), RAID1(Mirror/Safe), Span (Big)

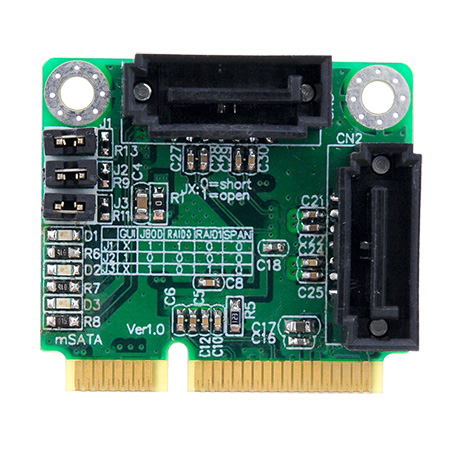

	GUI	JBOD	RAID0	RAID1	Span
J1	x	1	1	0	0
J2	1	0	0	0	0
J3	x	1	0	1	0

Support Hi-Speed SATA3 / 6Gbps mass storage interface.
Transparent to the operating system and does not require any software drivers
Dimension: DxWxH : 30 x 26.8 x 11.4 mm

System Requirement

System supporting mSATA slot
