PC Components/ M.2 Extender/Adapte

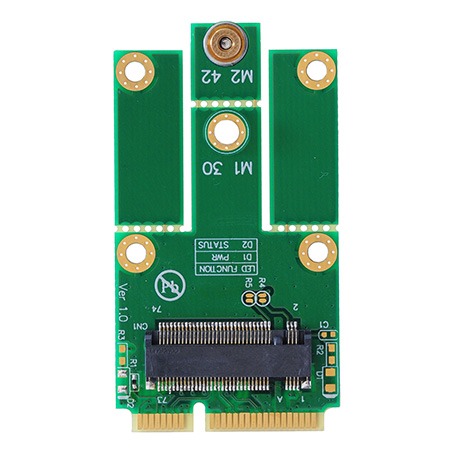

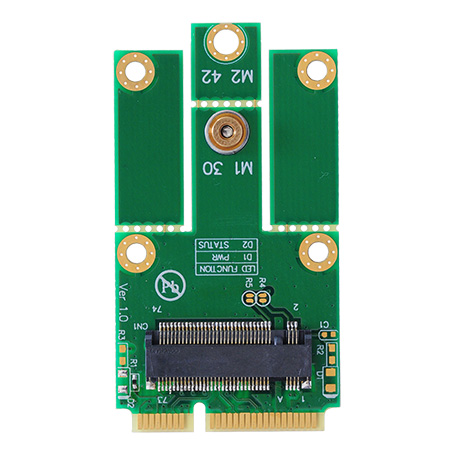

M2MP1

M.2 (NGFF) to mPCIe (PCIe+USB) Adapter

(Socket 1 , Key A)

manufacture:Bplus

First Impression

名稱 (Name) : M2MP1
簡介 (Summary) : M.2 (NGFF) to mPCIe (PCIe+USB) adapter
界面 (Interface): mPCIe side: PCIe + USB

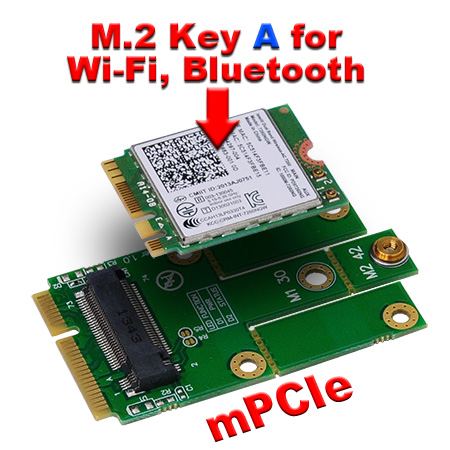

M.2 (NGFF) side : Key A Socket 1
應用 (Application) : 　Suitable for intel 7260NGW with 802.11ac WiFi & Bluetooth 4.0

名稱 (Name) : M2MP1-E
簡介 (Summary) : M.2 (NGFF) to mPCIe (PCIe+USB) adapter
界面 (Interface): mPCIe side: PCIe + USB
M.2 (NGFF) side : Key E Socket 1
應用 (Application) : 　Suitable for intel 7260NGW with 802.11ac WiFi & Bluetooth 4.0

Function

Allows user to use M.2 Socket 1 Module to mPCIe Slot in the Desktop or Laptop.
Supports system bus interface: PCIe&USB2.0.
Supports USB interface of Mini-Cards such as 3G,CDMA, WWAN, HSPA, GPS, WiMAX, Bluetooth Mini Card to desktop PC.
Support PCIeMiniCard :IEEE WLAN802.11a/b/g/n, 802.11d, 802.11e, 802.11i, 802.11h, 802.11ac
No drivers needed for this M.2 to mini PCI-E Card Adapter

Specifications

M.2 Specification Revision 0.9-3
PCI Express base Specification 1.1 (Up to 2.5Gpbs)
USB Specification Revision2.0
Support 3030/3042 M.2 Card dimension.
Support M.2 Socket 1 Module.
M2MP1 Support M.2 Key A/A-E Card Type.
M2MP1-E Support M.2 Key E Card Type.
Support Full size and half size mPCIe slot

System Requirement

Mini PCI-E slot
Windows 2000, XP, Vista 32/64, Windows 7, Windows 8 or Linux

M.2 (NGFF) to mini PCI-E Adapter comparison
Model Name	M2MU2	M2MP1	M2MP1-E	M2MS1
Function	M.2 to mPCIe	M.2 to mPCIe	M.2 to mPCIe	M.2 to mSATA
Interface	USB 2.0	PCIe & USB2.0	PCIe & USB2.0	SATA
M.2 SPEC	Socket 2 SSIC-based WWAN	Socket 1	Socket 1	Socket 2 SATA-based
Application	3G / CDMA / LTE / GPS module	WiFi+BT module	WiFi+BT module	SATA SSD module
Module KEY	B	A	E	B / B+M
Support Card Type	2230/2242/3030/3042	2230/2242/3030/3042	2230/2242/3030/3042	2230/2242/3030/3042
