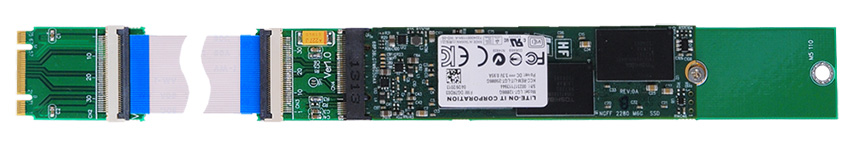

P16S-P16F is an extender board for M.2 (NGFF) SATA-SSD.

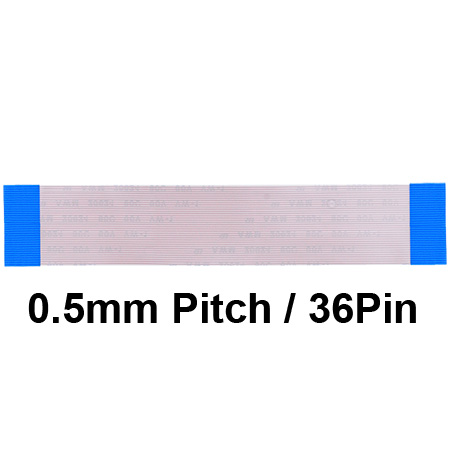

Design the FFC (Flat Flexible Cable) cable for flexible use.

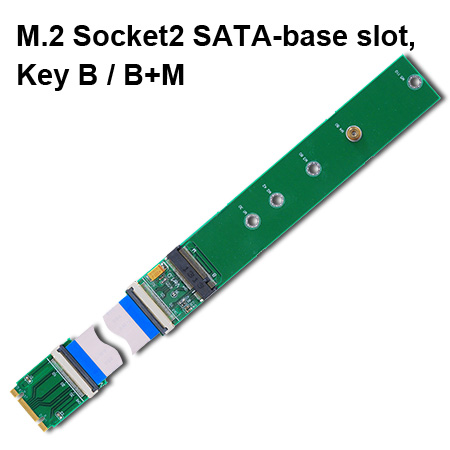

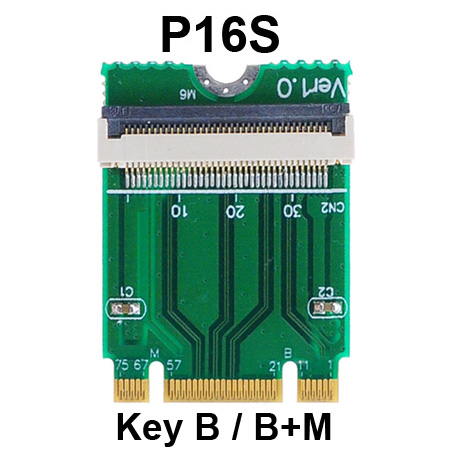

Design type 2242 dimension M.2(NGFF) golden finger for Socket 2 SATA-base Key B/B+M slot.
Can support all dimension of SSD cards: 2230, 2242, 2260, 2280, 22110.
The extender is designed to minimize the signal degradation effects of the extender by proven design techniques.
It’s also a powerful tool for engineers and factory tests.
Function
-

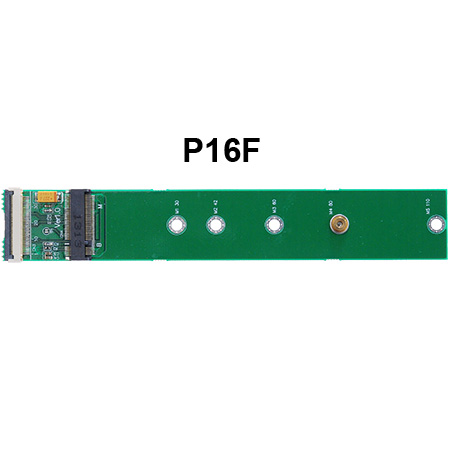

M.2 Socket 2 SATA-SSD extender board
-
Design the FFC (Flat Flexible Cable) cable for flexible use.
