Cabinet/KSR
KSR
  • Specification:

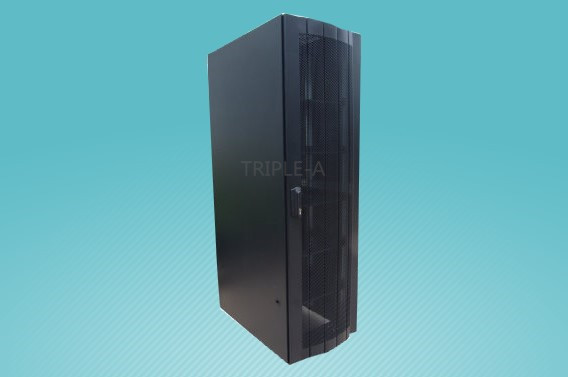

  • Constructed of heavy-duty steel for the ultimate server rack strength and stability Store servers, network and telecommunications equipment securely in this 19" solid steel rack
  • Reliable, space-saving solutions designed for organizing and securing server and networking applications. Suited for server rooms, wiring closets,manufacturing areas, warehouses, or anywhere where networking equipment needs to be protected. Ideal for housing LAN, WAN, phone, and voice mail equipment.

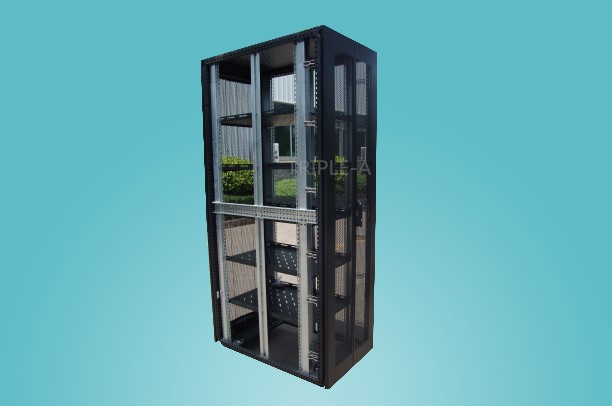

  • This modular cabinet helps save space in the server room and is designed to suit any server room footprint design, while housing any standard 19in rackmount equipment.
  • To help optimize ventilation, the cabinet offers steel mesh doors with wide perforation, and includes an integrated cable management system that helps keep the inside of the cabinet neat. Plus, the rack rail spacing is clearly marked, making it easy to plan and install equipment within the cabinet.

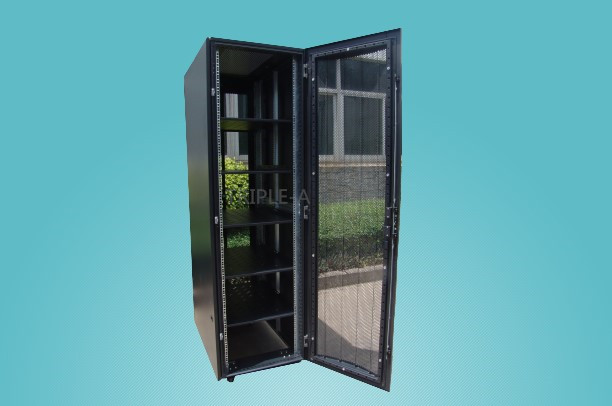

  • Includes lockable front and rear doors, and dual lock side doors

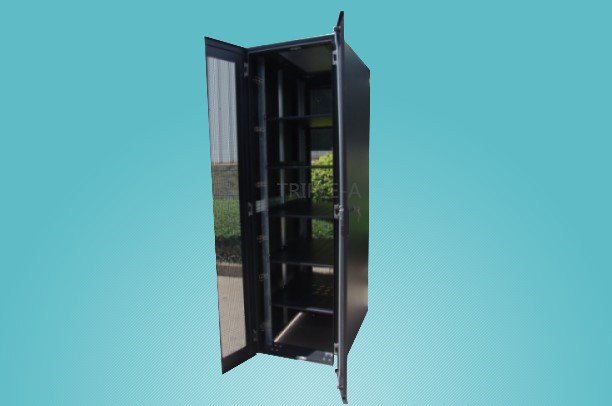

  • Front and rear doors easily removable and reversible
  • All steel, welded frame construction
  • Ships fully assembled
  • Sturdy, attractive, and secure server space
  • Arrives fully assembled and ready to go to work in your data center.
  • Removable side panels.
  • Vented top panel.
  • Generous cable access.
manufacture:Cabinet

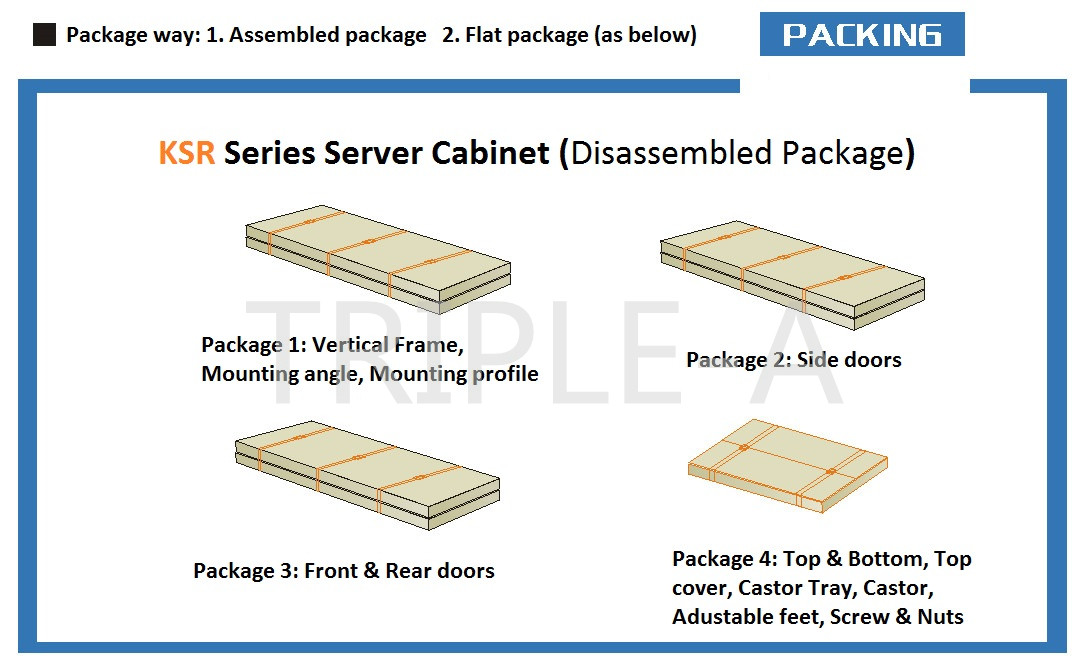

Packing :              Bitmap


Product're wrapped with plastic wrap and PU foam inside to protect the corner areas.
Top panel & front door are protected by Styrofoam or PU plate. Thick & High Quality carton or wooden box.
label on product.

Buyer can choose OEM or our standard:
We can manufacture the cabinet according to the customer special requirements also.
Color of Rack: Black / Beige or other color like Blue / Yellow / Red / Orange
More fan, Side panel of luck, W/O side panel etc….

Please contact with us if you like to change anything for other parts and make sure your order,
also we have many difference type for your any new idea.
ItemHeightNumberWidth(mm)Depth(mm)Quantity
KSR47UKSR-6647600600
KSR47UKSR-6847600800
KSR47UKSR-6947600900
KSR47UKSR-60476001000
KSR47UKSR-8647800600
KSR47UKSR-8847800800
KSR47UKSR-8947800900
KSR47UKSR-80478001000
KSR42UKSR-6642600600
KSR42UKSR-6842600800
KSR42UKSR-6942600900
KSR42UKSR-60426001000
KSR42UKSR-8642800600
KSR42UKSR-8842800800
KSR42UKSR-8942800900
KSR42UKSR-80428001000
KSR37UKSR-6637600600
KSR37UKSR-6837600800
KSR37UKSR-6937600900
KSR37UKSR-60376001000
KSR37UKSR-8637800600
KSR37UKSR-8837800800
KSR37UKSR-8937800900
KSR37UKSR-80378001000
KSR32UKSR-6632600600
KSR32UKSR-6832600800
KSR32UKSR-6932600900
KSR32UKSR-60326001000
KSR32UKSR-8632800600
KSR32UKSR-8832800800
KSR32UKSR-8932800900
KSR32UKSR-80328001000
KSR27UKSR-6627600600
KSR27UKSR-6827600800
KSR27UKSR-6927600900
KSR27UKSR-60276001000
KSR27UKSR-8627800600
KSR27UKSR-8827800800
KSR27UKSR-8927800900
KSR27UKSR-80278001000
KSR22UKSR-6622600600
KSR22UKSR-6822600800
KSR22UKSR-6922600900
KSR22UKSR-60226001000
KSR22UKSR-8622800600
KSR22UKSR-8822800800
KSR22UKSR-8922800900
KSR22UKSR-80228001000
KSR18UKSR-6618600600
KSR18UKSR-6818600800
KSR18UKSR-6918600900
KSR18UKSR-60186001000
KSR18UKSR-8618800600
KSR18UKSR-8818800800
KSR18UKSR-8918800900
KSR18UKSR-80188001000



Features:
Meet IP20 Protection Grade
01.The items comply with ANSI/EIA; RS-310-D; IEC297-2; DIN41491(PART1); DIN41494(PART7);
01.GB/T3047.2-92 standard; compatible with ETSI standard.
02.The frame is made of nine folds structure and welded by special 3-Tees.
02.The whole configuration is firmed and the static load is over 1000Kgs.
03.High density vented undee single front door and double section rear door make the vented area
03.no less than 65% of the door area, the exquisite appearance.
03.The front door can choose international fashion color of tempered glass.
04.The side door can be installed and uninstalled quickly which make the working conveniently.
05.The cabinet can be installed castor and adjustable feet at one time which make the moving
05.and fixing easy.
06.The door hinge is interchangeable, top cable entry hole with rubber cover.
07.Material: SPCC high-quality cold roll steel
08.Surface finish: degreasing, pickling, phosphoric, static electricity, power coat.

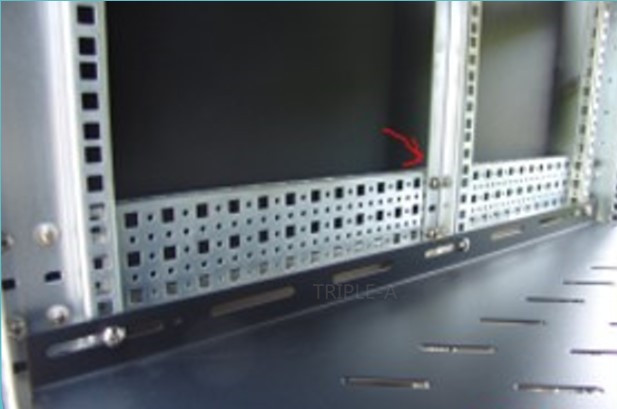

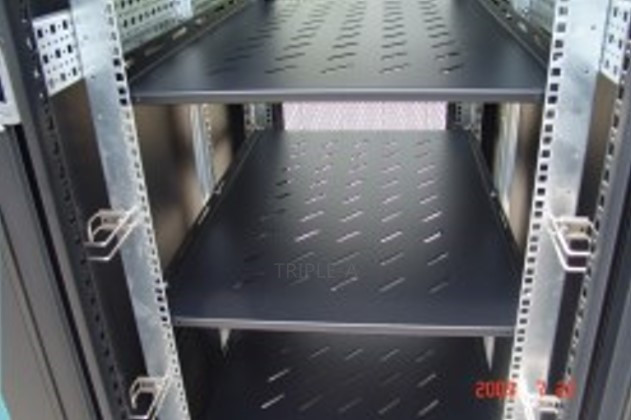

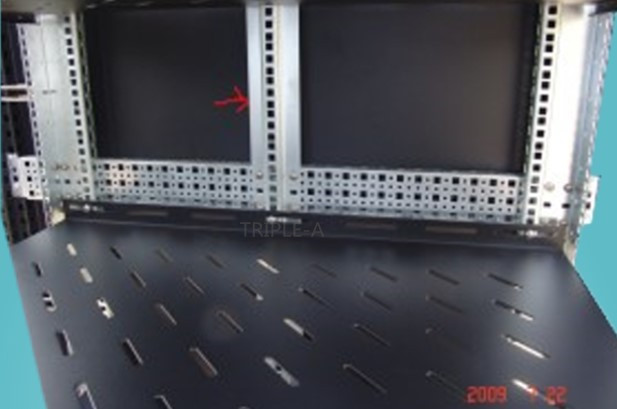

09.Vertical mounting rails offer a square hole universal mount (EIA-310) for any brand server
10.Top and Bottom cover with ventilation for cooling.
11.Upper and bottom hole with install fans.
12.Adjustable rails 19”.
13.Quick release side panels with spring latch
14.Several lockable cable entrances on the top/bottom plate
15.Powder coat tough to reduce scratching and chipping.
16.Cage nuts and screws.
17.Excellent Air Ventilation Design with Optional Dual AC Cooling Fans
18.Split rear door minimizes the required access space behind the cabinet
