Cabinet/FSR

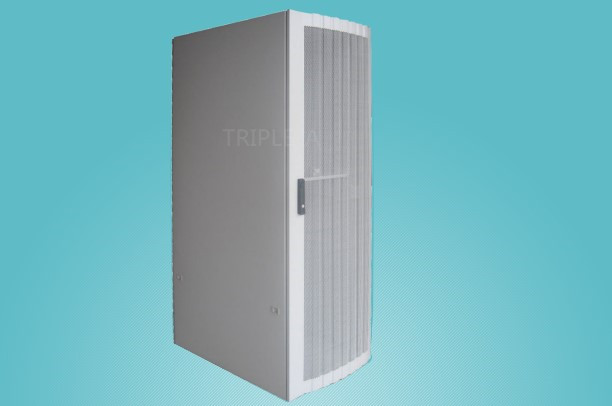

FSR

Specification:

Constructed of heavy-duty steel for the ultimate server rack strength and stability Store servers, network and telecommunications equipment securely in this 19" solid steel rack

Reliable, space-saving solutions designed for organizing and securing server and networking applications. Suited for server rooms, wiring closets,manufacturing areas, warehouses, or anywhere where networking equipment needs to be protected. Ideal for housing LAN, WAN, phone, and voice mail equipment.

This modular cabinet helps save space in the server room and is designed to suit any server room footprint design, while housing any standard 19in rackmount equipment.

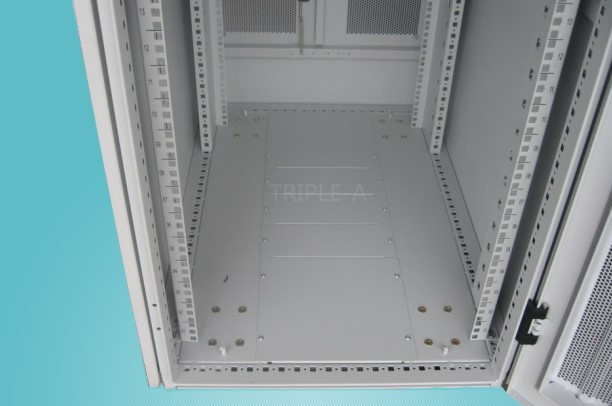

To help optimize ventilation, the cabinet offers steel mesh doors with wide perforation, and includes an integrated cable management system that helps keep the inside of the cabinet neat. Plus, the rack rail spacing is clearly marked, making it easy to plan and install equipment within the cabinet.

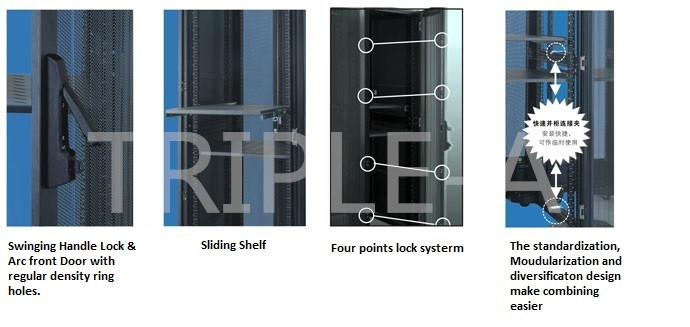

Includes lockable front and rear doors, and dual lock side doors

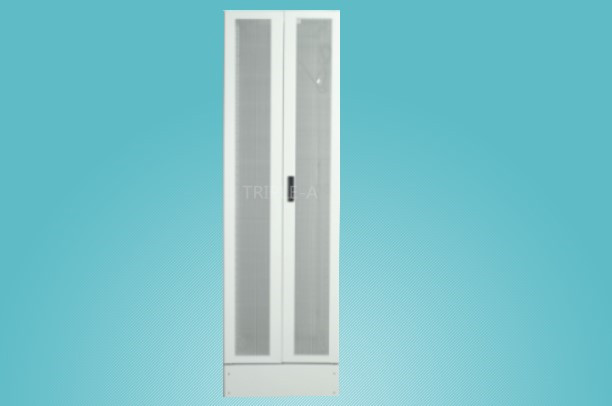

Front and rear doors easily removable and reversible

All steel, welded frame construction

Ships fully assembled

Sturdy, attractive, and secure server space

Arrives fully assembled and ready to go to work in your data center.

Removable side panels.

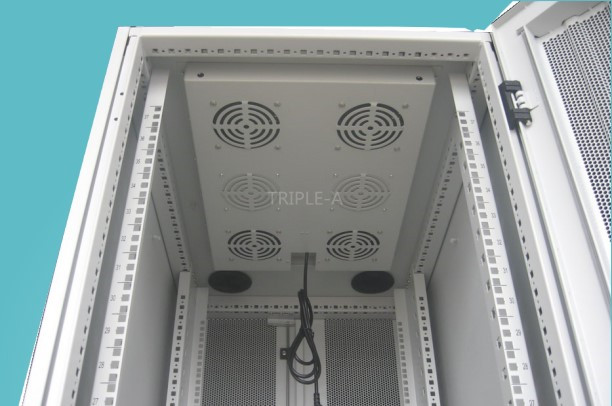

Vented top panel.

Generous cable access.

manufacture:Cabinet

Packing :

Product're wrapped with plastic wrap and PU foam inside to protect the corner areas.

Top panel & front door are protected by Styrofoam or PU plate. Thick & High Quality carton or wooden box.

label on product.

Buyer can choose OEM or our standard:

We can manufacture the cabinet according to the customer special requirements also.

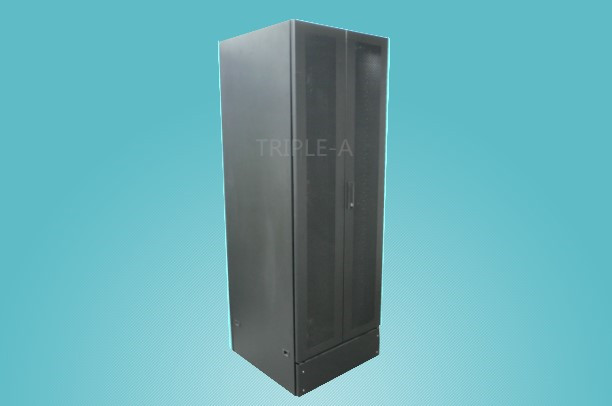

Color of Rack: Black / Beige or other color like Blue / Yellow / Red / Orange

More fan, Side panel of luck, W/O side panel etc….

Please contact with us if you like to change anything for other parts and make sure your order,

also we have many difference type for your any new idea.

Item	Height	Number	Width(mm)	Depth(mm)
FSR	47U	FSR-6647	600	600
FSR	47U	FSR-6847	600	800
FSR	47U	FSR-6947	600	900
FSR	47U	FSR-6047	600	1000
FSR	47U	FSR-8647	800	600
FSR	47U	FSR-8847	800	800
FSR	47U	FSR-8947	800	900
FSR	47U	FSR-8047	800	1000
FSR	42U	FSR-6642	600	600
FSR	42U	FSR-6842	600	800
FSR	42U	FSR-6942	600	900
FSR	42U	FSR-6042	600	1000
FSR	42U	FSR-8642	800	600
FSR	42U	FSR-8842	800	800
FSR	42U	FSR-8942	800	900
FSR	42U	FSR-8042	800	1000
FSR	37U	FSR-6637	600	600
FSR	37U	FSR-6837	600	800
FSR	37U	FSR-6937	600	900
FSR	37U	FSR-6037	600	1000
FSR	37U	FSR-8637	800	600
FSR	37U	FSR-8837	800	800
FSR	37U	FSR-8937	800	900
FSR	37U	FSR-8037	800	1000
FSR	32U	FSR-6632	600	600
FSR	32U	FSR-6832	600	800
FSR	32U	FSR-6932	600	900
FSR	32U	FSR-6032	600	1000
FSR	32U	FSR-8632	800	600
FSR	32U	FSR-8832	800	800
FSR	32U	FSR-8932	800	900
FSR	32U	FSR-8032	800	1000
FSR	27U	FSR-6627	600	600
FSR	27U	FSR-6827	600	800
FSR	27U	FSR-6927	600	900
FSR	27U	FSR-6027	600	1000
FSR	27U	FSR-8627	800	600
FSR	27U	FSR-8827	800	800
FSR	27U	FSR-8927	800	900
FSR	27U	FSR-8027	800	1000
FSR	22U	FSR-6622	600	600
FSR	22U	FSR-6822	600	800
FSR	22U	FSR-6922	600	900
FSR	22U	FSR-6022	600	1000
FSR	22U	FSR-8622	800	600
FSR	22U	FSR-8822	800	800
FSR	22U	FSR-8922	800	900
FSR	22U	FSR-8022	800	1000
FSR	18U	FSR-6618	600	600
FSR	18U	FSR-6818	600	800
FSR	18U	FSR-6918	600	900
FSR	18U	FSR-6018	600	1000
FSR	18U	FSR-8618	800	600
FSR	18U	FSR-8818	800	800
FSR	18U	FSR-8918	800	900
FSR	18U	FSR-8018	800	1000
