Cabinet/TSR

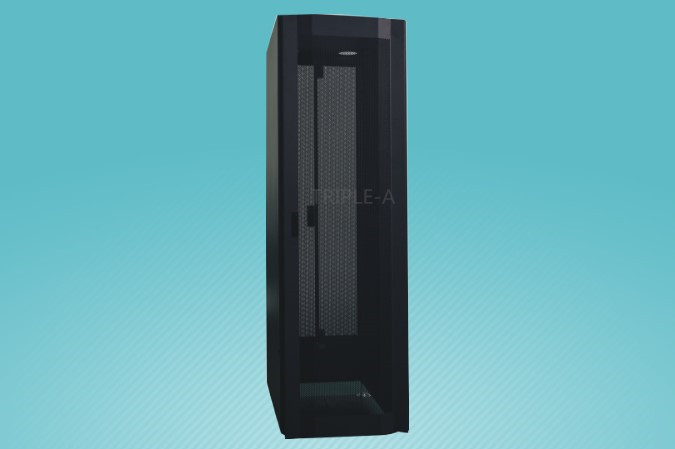

TSR

Specification:

Constructed of heavy-duty steel for the ultimate server rack strength and stability Store servers, network and telecommunications equipment securely in this 19" solid steel rack

Reliable, space-saving solutions designed for organizing and securing server and networking applications. Suited for server rooms, wiring closets,manufacturing areas, warehouses, or anywhere where networking equipment needs to be protected. Ideal for housing LAN, WAN, phone, and voice mail equipment.

This modular cabinet helps save space in the server room and is designed to suit any server room footprint design, while housing any standard 19in rackmount equipment.

To help optimize ventilation, the cabinet offers steel mesh doors with wide perforation, and includes an integrated cable management system that helps keep the inside of the cabinet neat. Plus, the rack rail spacing is clearly marked, making it easy to plan and install equipment within the cabinet.

Includes lockable front and rear doors, and dual lock side doors

Front and rear doors easily removable and reversible

All steel, welded frame construction

Ships fully assembled

Sturdy, attractive, and secure server space

Arrives fully assembled and ready to go to work in your data center.

Removable side panels.

Vented top panel.

Generous cable access.

manufacture:Cabinet

Packing :

Product're wrapped with plastic wrap and PU foam inside to protect the corner areas.

Top panel & front door are protected by Styrofoam or PU plate. Thick & High Quality carton or wooden box.

label on product.

Buyer can choose OEM or our standard:

We can manufacture the cabinet according to the customer special requirements also.

Color of Rack: Black / Beige or other color like Blue / Yellow / Red / Orange

More fan, Side panel of luck, W/O side panel etc….

Please contact with us if you like to change anything for other parts and make sure your order,

also we have many difference type for your any new idea.

Item	Height	Number	Width(mm)	Depth(mm)
TSR	47U	TSR-6647	600	600
TSR	47U	TSR-6847	600	800
TSR	47U	TSR-6947	600	900
TSR	47U	TSR-6047	600	1000
TSR	47U	TSR-8647	800	600
TSR	47U	TSR-8847	800	800
TSR	47U	TSR-8947	800	900
TSR	47U	TSR-8047	800	1000
TSR	42U	TSR-6642	600	600
TSR	42U	TSR-6842	600	800
TSR	42U	TSR-6942	600	900
TSR	42U	TSR-6042	600	1000
TSR	42U	TSR-8642	800	600
TSR	42U	TSR-8842	800	800
TSR	42U	TSR-8942	800	900
TSR	42U	TSR-8042	800	1000
TSR	37U	TSR-6637	600	600
TSR	37U	TSR-6837	600	800
TSR	37U	TSR-6937	600	900
TSR	37U	TSR-6037	600	1000
TSR	37U	TSR-8637	800	600
TSR	37U	TSR-8837	800	800
TSR	37U	TSR-8937	800	900
TSR	37U	TSR-8037	800	1000
TSR	32U	TSR-6632	600	600
TSR	32U	TSR-6832	600	800
TSR	32U	TSR-6932	600	900
TSR	32U	TSR-6032	600	1000
TSR	32U	TSR-8632	800	600
TSR	32U	TSR-8832	800	800
TSR	32U	TSR-8932	800	900
TSR	32U	TSR-8032	800	1000
TSR	27U	TSR-6627	600	600
TSR	27U	TSR-6827	600	800
TSR	27U	TSR-6927	600	900
TSR	27U	TSR-6027	600	1000
TSR	27U	TSR-8627	800	600
TSR	27U	TSR-8827	800	800
TSR	27U	TSR-8927	800	900
TSR	27U	TSR-8027	800	1000
TSR	22U	TSR-6622	600	600
TSR	22U	TSR-6822	600	800
TSR	22U	TSR-6922	600	900
TSR	22U	TSR-6022	600	1000
TSR	22U	TSR-8622	800	600
TSR	22U	TSR-8822	800	800
TSR	22U	TSR-8922	800	900
TSR	22U	TSR-8022	800	1000
TSR	18U	TSR-6618	600	600
TSR	18U	TSR-6818	600	800
TSR	18U	TSR-6918	600	900
TSR	18U	TSR-6018	600	1000
TSR	18U	TSR-8618	800	600
TSR	18U	TSR-8818	800	800
TSR	18U	TSR-8918	800	900
TSR	18U	TSR-8018	800	1000
