Cabinet/FT

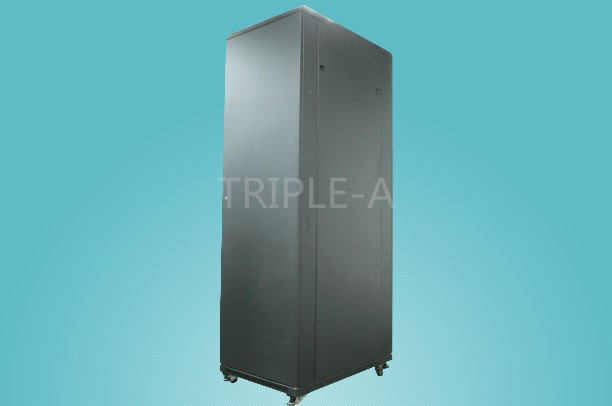

Specification:

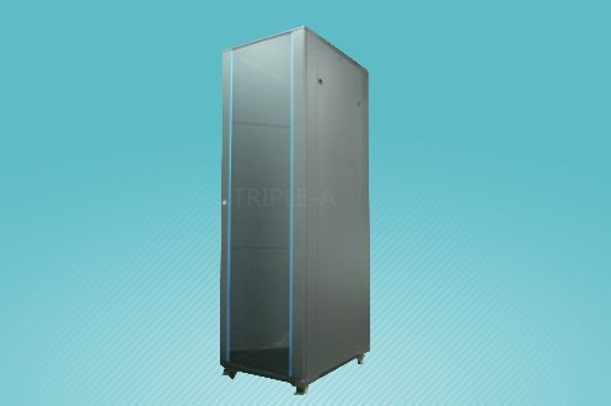

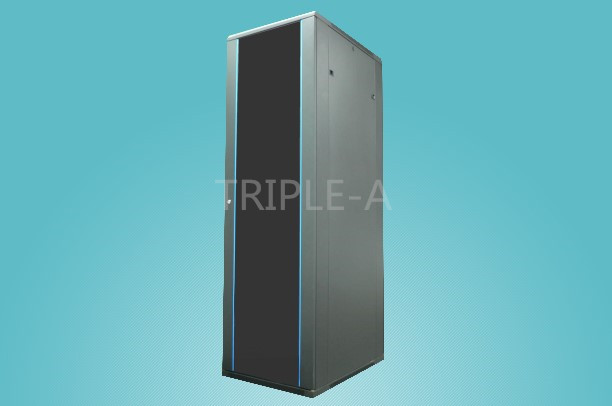

Constructed of heavy-duty steel for the ultimate server rack strength and stability Store servers, network and telecommunications equipment securely in this 19" solid steel rack

Reliable, space-saving solutions designed for organizing and securing server and networking applications. Suited for server rooms, wiring closets,manufacturing areas, warehouses, or anywhere where networking equipment needs to be protected. Ideal for housing LAN, WAN, phone, and voice mail equipment.

This modular cabinet helps save space in the server room and is designed to suit any server room footprint design, while housing any standard 19in rackmount equipment.

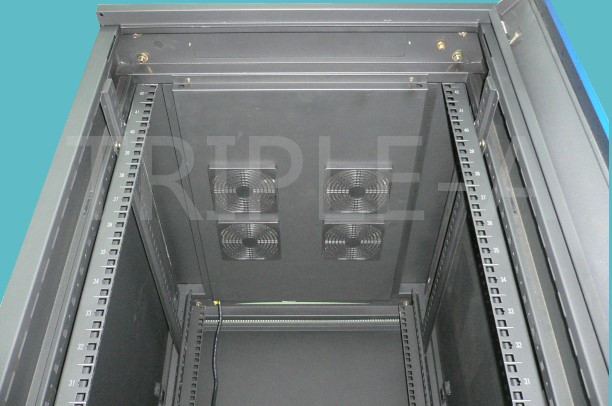

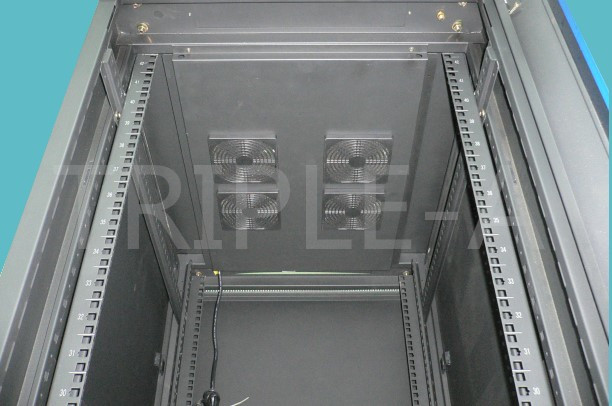

To help optimize ventilation, the cabinet offers steel mesh doors with wide perforation, and includes an integrated cable management system that helps keep the inside of the cabinet neat. Plus, the rack rail spacing is clearly marked, making it easy to plan and install equipment within the cabinet.

Includes lockable front and rear doors, and dual lock side doors

Front and rear doors easily removable and reversible

All steel, welded frame construction

Ships fully assembled

Sturdy, attractive, and secure server space

Arrives fully assembled and ready to go to work in your data center.

Removable side panels.

Vented top panel.

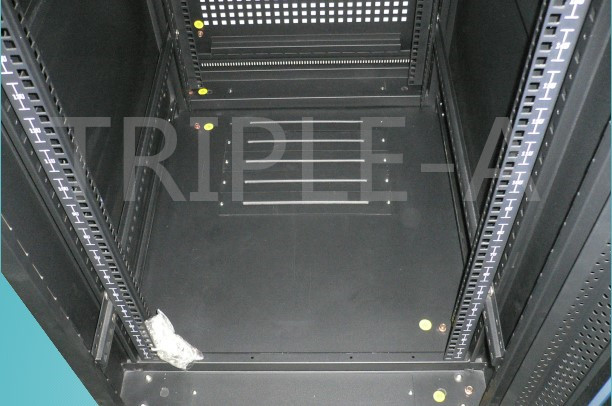

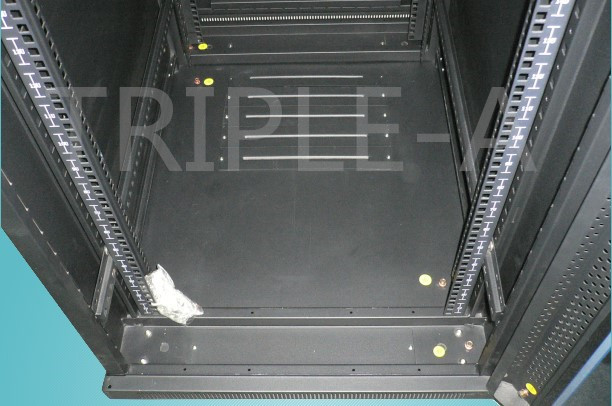

Generous cable access.

manufacture:Cabinet

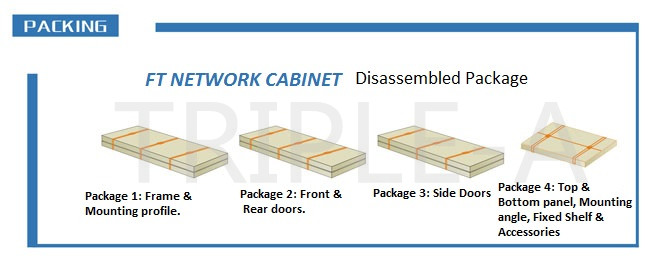

Packing :

Product're wrapped with plastic wrap and PU foam inside to protect the corner areas.

Top panel & front door are protected by Styrofoam or PU plate. Thick & High Quality carton or wooden box.

label on product.

Buyer can choose OEM or our standard:

We can manufacture the cabinet according to the customer special requirements also.

Color of Rack: Black / Beige or other color like Blue / Yellow / Red / Orange

More fan, Side panel of luck, W/O side panel etc….

Please contact with us if you like to change anything for other parts and make sure your order,

also we have many difference type for your any new idea.

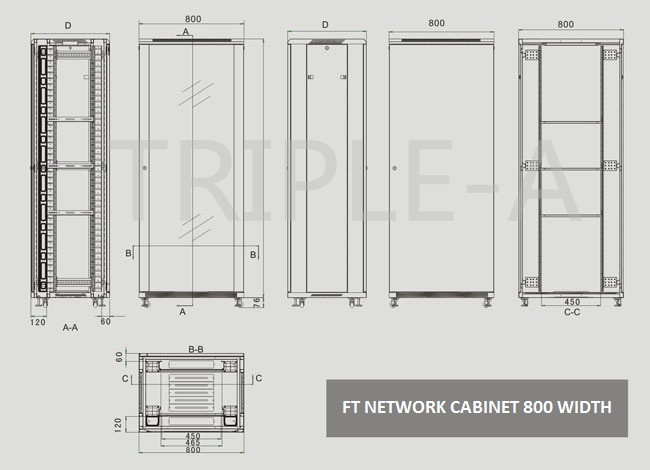

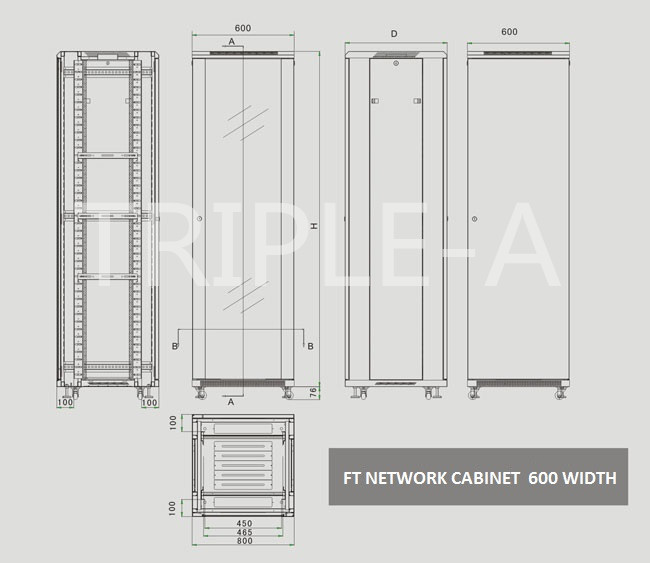

Item	Height	Number	Width(mm)	Depth(mm)
FT	47U	FT-6647	600	600
FT	47U	FT-6847	600	800
FT	47U	FT-6947	600	900
FT	47U	FT-6047	600	1000
FT	47U	FT-8647	800	600
FT	47U	FT-8847	800	800
FT	47U	FT-8947	800	900
FT	47U	FT-8047	800	1000
FT	42U	FT-6642	600	600
FT	42U	FT-6842	600	800
FT	42U	FT-6942	600	900
FT	42U	FT-6042	600	1000
FT	42U	FT-8642	800	600
FT	42U	FT-8842	800	800
FT	42U	FT-8942	800	900
FT	42U	FT-8042	800	1000
FT	37U	FT-6637	600	600
FT	37U	FT-6837	600	800
FT	37U	FT-6937	600	900
FT	37U	FT-6037	600	1000
FT	37U	FT-8637	800	600
FT	37U	FT-8837	800	800
FT	37U	FT-8937	800	900
FT	37U	FT-8037	800	1000
FT	32U	FT-6632	600	600
FT	32U	FT-6832	600	800
FT	32U	FT-6932	600	900
FT	32U	FT-6032	600	1000
FT	32U	FT-8632	800	600
FT	32U	FT-8832	800	800
FT	32U	FT-8932	800	900
FT	32U	FT-8032	800	1000
FT	27U	FT-6627	600	600
FT	27U	FT-6827	600	800
FT	27U	FT-6927	600	900
FT	27U	FT-6027	600	1000
FT	27U	FT-8627	800	600
FT	27U	FT-8827	800	800
FT	27U	FT-8927	800	900
FT	27U	FT-8027	800	1000
FT	22U	FT-6622	600	600
FT	22U	FT-6822	600	800
FT	22U	FT-6922	600	900
FT	22U	FT-6022	600	1000
FT	22U	FT-8622	800	600
FT	22U	FT-8822	800	800
FT	22U	FT-8922	800	900
FT	22U	FT-8022	800	1000
FT	18U	FT-6618	600	600
FT	18U	FT-6818	600	800
FT	18U	FT-6918	600	900
FT	18U	FT-6018	600	1000
FT	18U	FT-8618	800	600
FT	18U	FT-8818	800	800
FT	18U	FT-8918	800	900
FT	18U	FT-8018	800	1000
