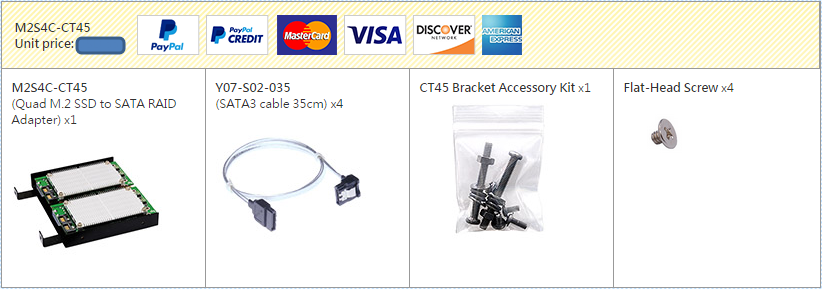

M2S4C-CT45

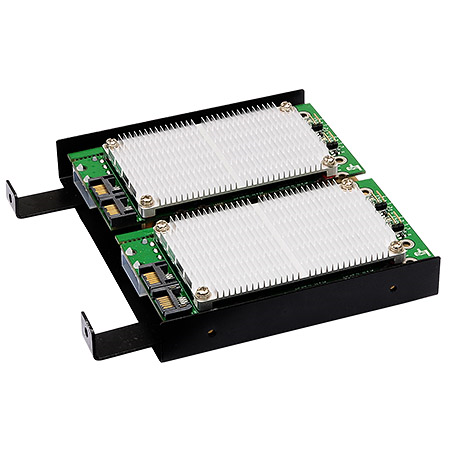

Quad M.2 (NGFF) SSD to SATA RAID Adapter

manufacture:Bplus

Function

Allows user to use standard SATA-IO M.2 SATA SSD to SATA hard drive in the Desktop.
Support Hi-Speed SATA3 / 6Gbps mass storage interface.
Support software RAID 0/1/5/10.
Support OS RAID and Mother-Board RAID 0/1/5/10.
PCB board can be stacking.

System Requirements

Desktop PC with an available SATA slot.
Available PCIe slot/2.5” herd driver space/3.5”herd driver space.
Windows, Vista 32/64, Windows 7, Windows 8, Windows server 2008/2010/2012 or Linux.

Specifications

M.2 Specification Revision 1.0
Serial ATA Spec. Reversion 3.2
Support 2230 / 2242 / 2260 / 2280 type M.2 Card dimension.
Support M.2 Socket 2 SATA-based SSD Module.
Support M.2 Key B Card Type.

Dimension & Weight(PCB board)

120mm * 64mm * 16mm ; 40g

Certification

RoHs

Operating Temperature

0 ~ 70℃
