USBMI-WP-SMA v1.3

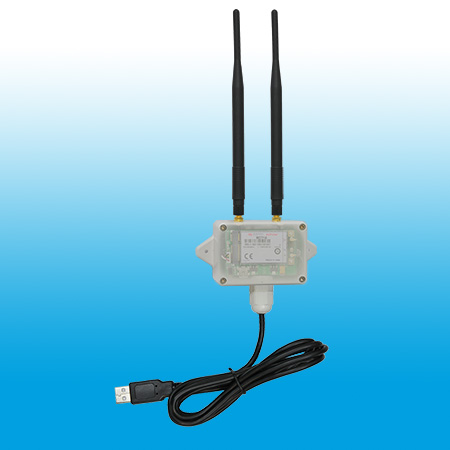

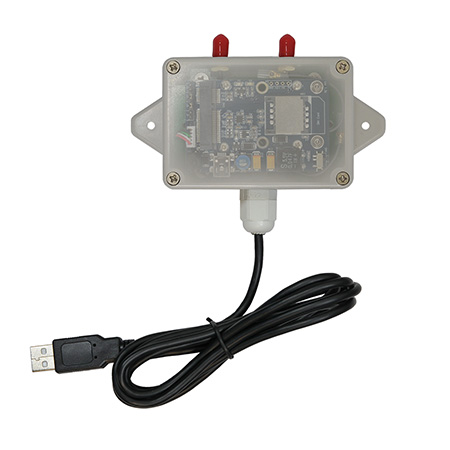

USBMI-WP Introduction:

To build a 3G or 4G wireless environment in pit, desert or cave which is a very difficult challenge for constructers as water, dust and sand which are all natural enemies for these delicate electronic devices. Now Bplus Tech. is proud to present a new product USBMI-WP made for waterproof purpose or other extreme conditions. In our internal lab testing, USBMI-WP include antennas and the USB connectors made a kit is designed for most drastic conditions and totally corresponded to the request of IP66 as dust proof, protected from strong water jets. It is suited to oil-mining industry, weather forecasting system, earthquake or volcano monitored system probably located in a very bad environment. So now you don’t need to expense additional cost to add other waterproof-housing to protect your wireless devices. Using our USBMI-WP will be a durable and economic solution for wireless transmission of the most extreme environments.

manufacture:Bplus

Function

USB mini type-B connection to desktop or notebook PC.
Support system bus interface: USB.
Supports USB interface of Mini-Cards such as 3G,CDMA, WLAN,WWLAN, HSPA MODEM , GPS, WiMAX Mini Card to desktop PC..
Support SIM card connector.
Support U.FL/IPX to RP-SMA pigtail Wifi RF cable adapter.

Specification

- PCI Express Mini Card to USB adapter.
- PCI Express Mini Card Electromechanical Specification Revision 1.2
- Universal Serial Bus Specification Revision 2.0
- Full / Half -Mini Card dimension.
- SIM Connector for CDMA HSDPA/HSUPA, UMTS, GSM, GPRS, EDGE
- Access LED.(USBMA)
- Operating Temperature Range : - 40℃ to +85℃
- Operating Humidity Range : 5% to 95% RH

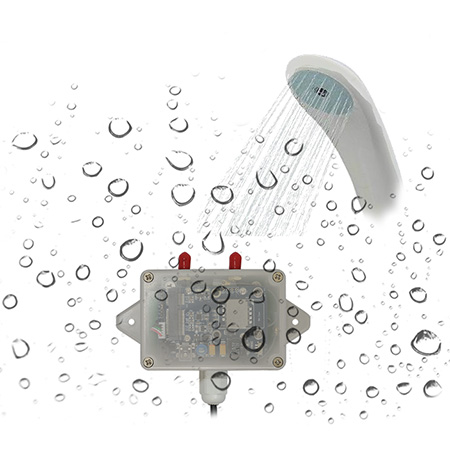

- Compliant with Waterproof IP-66 (USBMI-WP)

USBMI V1.3b Brief	Taiwan 1	Taiwan 2	China
USBMI-WP V1.3b Brief	Taiwan 1	Taiwan 2	China
USBMI Dimension V1.3b	Taiwan 1	Taiwan 2	China
USBMI Schematic V1.3b	Taiwan 1	Taiwan 2	China
USBMx Selection Guide	Taiwan 1	Taiwan 2	China
