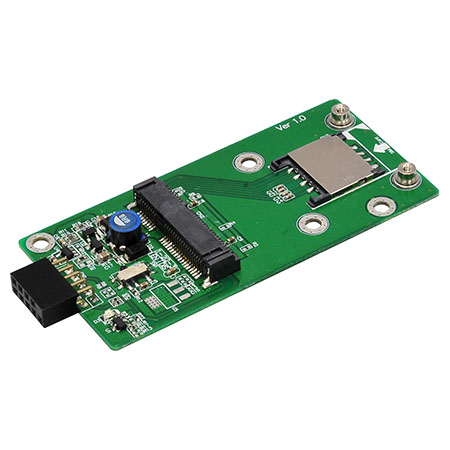

U0901A

3G/4G Wireless MODEM to USB 9P Header

manufacture:Bplus

First Impression

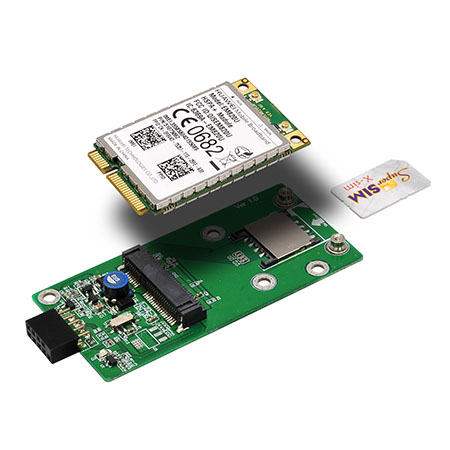

The U0901A adapter is designed for desktop/Embedded system that convert 3G/4G wireless Mini-Card to USB port.

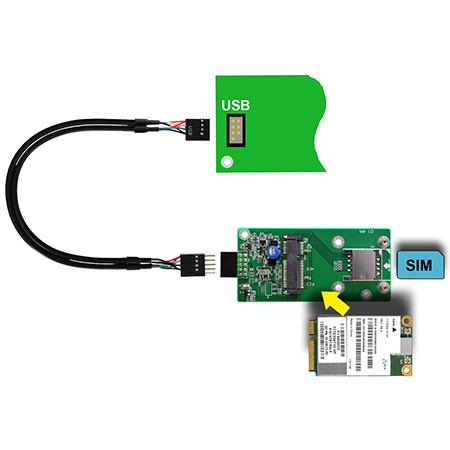

You can insert your USB type minicard such as GSM, HSPA(3.5G), GPS, LTE cards to this adapter then plug to USB port.

Standard SIM card is provided.

Function

USB 9pin connection to desktop or notebook PC
Supports USB interface of Mini-Cards such as 2G GSM, GPRS, 3G, CDMA, WLAN, WWLAN, HSPA MODEM, GPS, 4G WiMAX, LTE, and Mini-Card to desktop PC
Support SIM card connector.
Support U.FL/IPX to SMA pigtail RF cable adapter
Support MHF4 to SMA pigtail RF cable adapter
(Option) 824-984MHz; 1850-1990MHz SMA Antenna
(Option) 800-960MHz; 1710-2170MHz SMA Antenna
(Option) 700-960MHz; 1710-2700MHz SMA Antenna
(Option) 694-960MHz; 1710-2170MHz SMA Antenna
(Option) SMA or RP-SMA to U.Fl/IPX RF Cable
(Option) PCB Pad (Protect your desktop)
(Option) 3G CDMA / 4G LTE MiniCard
(Option) PCIe Standard Height 4 Antenna Hole Bracket(JP0593)
(Option) PCIe Low Profile Height 3 Antenna Hole Bracket(JP0735)

Specifications

System Requirements
USB 2.0 9pin port
Full / Half -Mini Card dimension
Dimension
90mm X 40mm X 7mm
Certifiction
RoHS
Operating Temperature
0 ~ 70℃
