PC Components/SATA interface

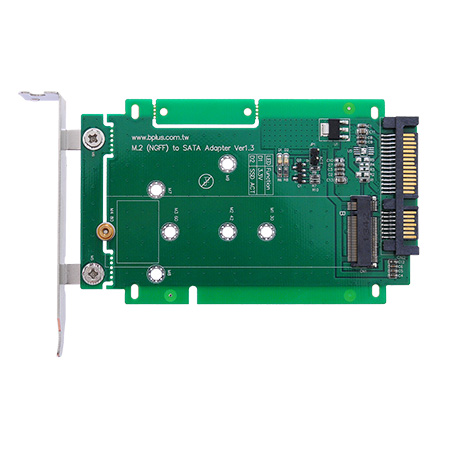

SSDM2 module

(M.2 SSD to SATA Adapter)

manufacture:Bplus

First Impression

SSDM2adapter enables using of M.2 SSD as a direct replacement for the 2.5” HDD in the notebook. Once installed, the M.2 SSD behaves like the 2.5”HDD with low power consumption, fast access time and completely shock resistant.

Function

Allows user to use M.2 SSD asstandard SATASSDin the Desktop or Laptop
Support M.2 Socket 2 SSDtype 2230, type 2242, type 2260
Support M.2 SSD with Key B including Key B+M
Support Hi-Speed SATA3/ 6Gbps mass storage interface.
Transparent to the operating system and does not require any software drivers
Dimension (2.5” Enclosure): D x W x H = 100 x 70 x 8 (mm)
Module: Support Low Profile / Standard Height PCIe Slot

System Requirement

System supporting SATA 7pin data port and SATA 15pin power.

Brief	Taiwan 1	Taiwan 2	China
Dimension	Taiwan 1	Taiwan 2	China
Schematic	Taiwan 1	Taiwan 2	China
3D Model	Taiwan 1	Taiwan 2	China
M.2 (NGFF) Products List table	Taiwan 1	Taiwan 2	China
