PC Components/SSD/Storage adapter

SSDMF

Introduction:

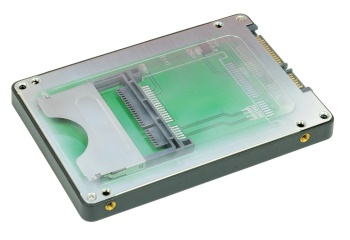

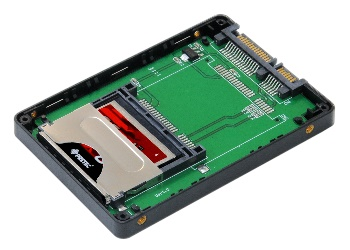

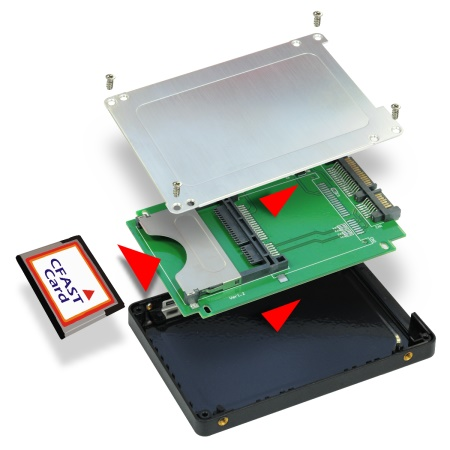

This adapter is designed to enable CFast media to be used as a direct replacement for a 2.5” SATA hard drive. Any equipment, such as a laptop that uses a 2.5 SATA hard drive can easily be converted to use a low power, shock resistant CFast media, just like a solid-state drive (SSD). Once installed, the CFast appears as an ordinary SATA hard drive and can be configured as a boot device using any OS.

manufacture:Bplus

Function

Input socket: CFast
Output connection: SATA 22-pi
Up to 1.5 Gbps transfer rate
No driver required
Power management circuit designed to protect inserted devices

System Requirements:

Windows ME/2000/XP/Vista/ 7, Mac OS 10.1.3 or above
Notebook or desktop computer with a free SATA port

MP2S, SSDMA, SSDMB,SSDMC,SSDMC-U,SSDMD,SSDMF for SSD minicard comparison 2011/Apr/21
Functions comparison	MP2S ver 1.0b	SSDMA	SSDMB	SSDMC	SSDMC-U	SSDMD ver1.0	SSDMF ver1.2
interface	PATA / SATA (EeePC)	USB2.0	USB3.0	SATA	SATA USB2.0miniB*	SATA	SATA
EeePC PATA SSD support	Yes	Yes	No	No	No	No	No
EeePC SATA SSD support	Yes	Yes	No	No	No	No	No
mSATA SSD support	No	No	Yes	Yes	Yes	No	No
memory card	No	No	No	No	No	SD card x2 (For SDXC / UHS-I)	CFast
Access LED	Yes	Yes	Yes	No	No	No	No
Appearance	Add-on card	Enclosure	Enclosure	2.5 "HDD or Add-on card	2.5”HDD or Add-on card Mini USB2.0 connector	2.5 "HDD or Add-on card	2.5 "HDD
MiniCard dimension support	Full/Custom	Full	Full	Full	Full	--	--
Notice: Almost mini-SATA SSD haven’t USB interface. Please check your mini-SATA SSD is supported for USB interface. Otherwise SSDMC-U USB function should invalid. The SSDMC / SSDMC-U / SSDMD / SSDMF Products only support 2.5" HDD Dimension.

Documents Download
SSDMF Brief	Taiwan	Taiwan 2 Mirror	China Mirror
Dimension	Taiwan	Taiwan 2 Mirror	China Mirror
Schematic	Taiwan	Taiwan 2 Mirror	China Mirror
Comparison List	Taiwan 1	Taiwan 2 Mirror	China Mirror
