PP1061

First Impression

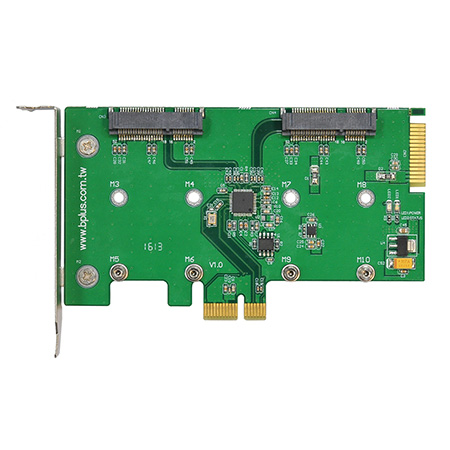

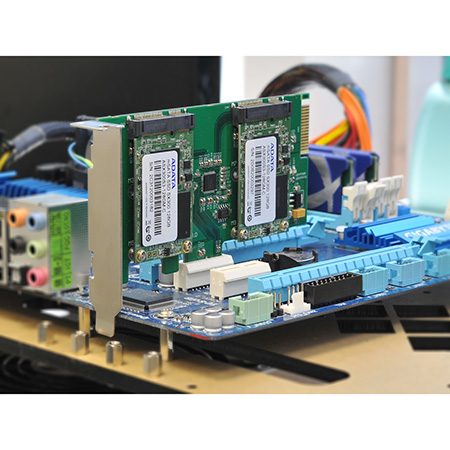

The mSATA to PCIe adapter is a converter tool for PCI-E interface.

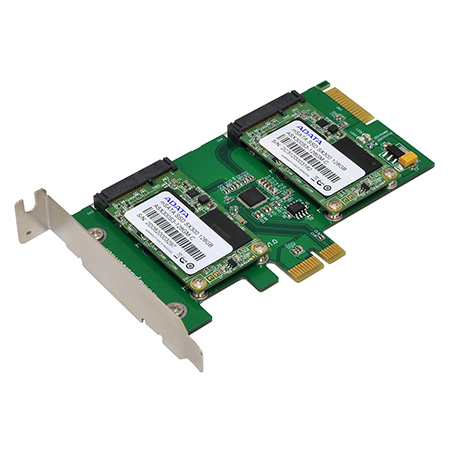

This module allows you connect 2 mSATA SSD to the PCI Express slot.

The module can support system boot

manufacture:Bplus

Function

Use ASM1061 single chip, 1-lane PCI Express to 2-port Serial ATA III Host Controller.
Support Native Command Queuing (NCQ)
Support port Multiplier
Support system boot

OS Support

AHCI standard inbox driver (eg. Windows, Linux OS)

Compliance

Compliant with Serial ATA AHCI (Advanced Host Controller Interface) Spec. Reversion 1.3

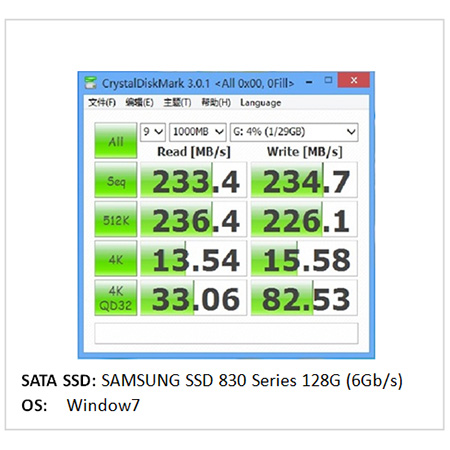

Compliant with PCI Express Base Spec. Revision 2.0, Supports 1-Lane 5.0Gbps
Compliant with Gen 1i, Gen 1x, Gen 2i, Gen 2m, Gen 2x, and Gen 3i Serial ATA III: Electrical Spec. Revision
Supports 2-port 6.0Gbps SATA III interface

Notice

The Product just only support 2 mSATA slot, Can’t support mPCIe device module, otherwise it can’t work.
The adapter can provide additonal power supply from SATA power cable, but the default is using the power from PCIe gold finger, it is enough.

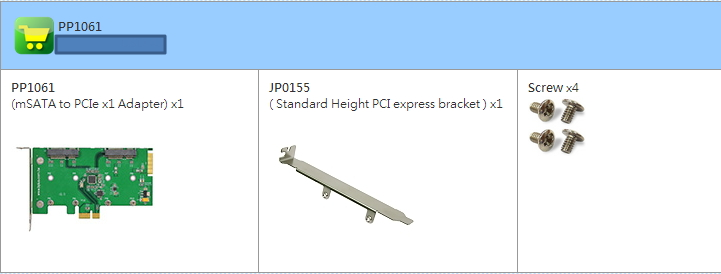

Brief	Taiwan 1	Taiwan 2	China
Dimension	Taiwan 1	Taiwan 2	China
Schematic	Taiwan 1	Taiwan 2	China
Driver	Taiwan 1	Taiwan 2	China
