PC Components/SSD/Storage adapter

SSDMR

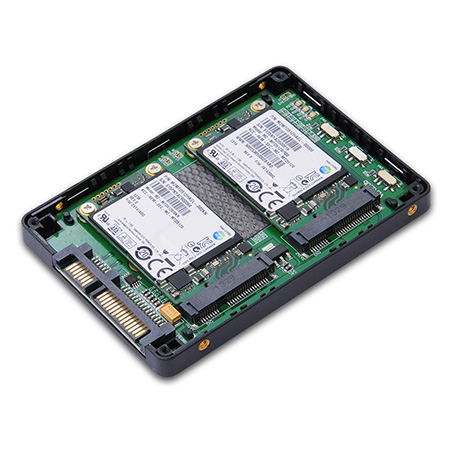

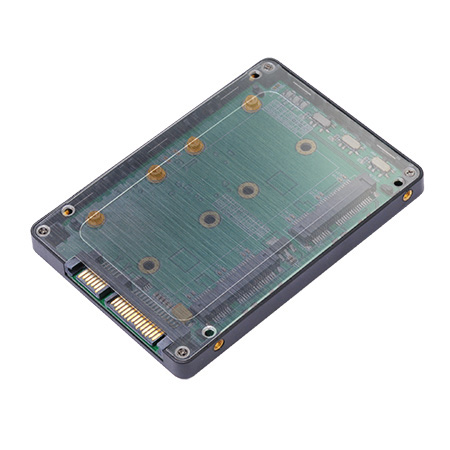

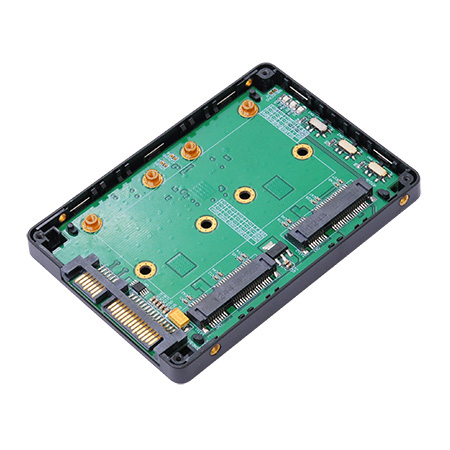

SSDMR adapter enables two mini-SATA SSD as a 2.5” HDD by RAID function in the laptop PC or desktop PC. Once installed, the mSATA SSD behaves like the 2.5”HDD in some RAID mode with faster or more reliable RAID functions, low power consumption, fast access time and completely shock resistant.

manufacture:Bplus

Function

Allows user to use standard SATA-IO mSATA SSD to SATA hard drive in the Desktop or Laptop

RAID mode : JBOD (Port Multiplier), RAID0 (Striping/Fast), RAID1(Mirror/Safe), Span (Big)

	GUI	JBOD	RAID0	RAID1	Span
SW1	X	1-2	1-2	2-3	2-3
SW2	1-2	2-3	2-3	2-3	2-3
SW3	X	1-2	2-3	1-2	2-3

Support Hi-Speed SATA3 / 6Gbps mass storage interface.
Transparent to the operating system and does not require any software drivers
Dimension: 2.5” HDD size (DxWxH : 70 x 100 x 8 mm)

System Requirement

System supporting SATA 7pin data port and SATA 15pin power.

Notice :

SSDMR can not be used with USB-SATA adapter.

CPU: Intel(R) Core(TM) i5-3550 CPU @ 3.30GHz
Main Board: Gigabyte Z77X-UP4 TH
Main Memory : 8 Gbytes
Graphics : Intel® HD Graphics 2500
OS: Microsoft Windows 8.1 Pro 64-bit

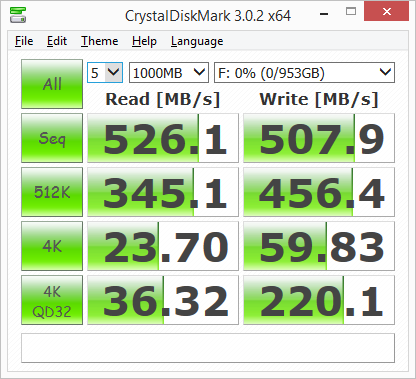

mSATA SSD : Samsung SM841 512G x2

Brief	Taiwan 1	Taiwan 2	China
Dimension	Taiwan 1	Taiwan 2	China
Schematic	Taiwan 1	Taiwan 2	China
User Guide	Taiwan 1	Taiwan 2	China
