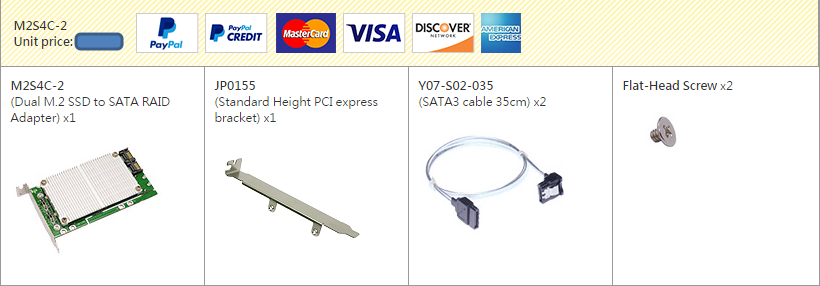

M2S4C-2

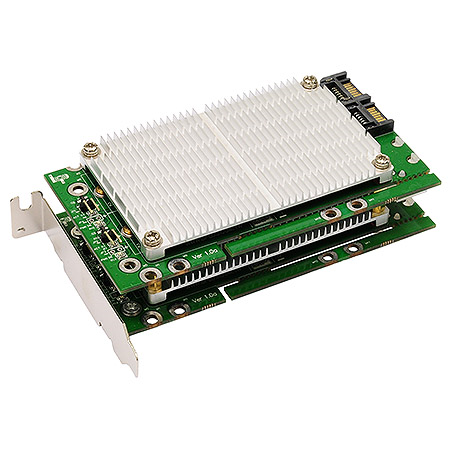

  • Quad M.2 (NGFF) SSD to SATA RAID Adapter
manufacture:Bplus

  Function

  • Allows user to use standard SATA-IO M.2 SATA SSD to SATA hard drive in the Desktop.
  • Support Hi-Speed SATA3 / 6Gbps mass storage interface.
  • Support software RAID 0/1/5/10.
  • Support OS RAID and Mother-Board RAID 0/1/5/10.
  • PCB board can be stacking.

 System Requirements

  • Desktop PC with an available SATA slot.
  • Available PCIe slot/2.5” herd driver space/3.5”herd driver space.
  • Windows, Vista 32/64, Windows 7, Windows 8, Windows server 2008/2010/2012 or Linux.

 Specifications

  • M.2 Specification Revision 1.0
  • Serial ATA Spec. Reversion 3.2
  • Support 2230 / 2242 / 2260 / 2280 type M.2 Card dimension.
  • Support M.2 Socket 2 SATA-based SSD Module.
  • Support M.2 Key B Card Type.



Dimension & Weight(PCB board)

  • 120mm * 64mm * 16mm ; 40g

    Certification

  • RoHs

    Operating Temperature

  • 0 ~ 70℃




Brief Taiwan 1 Taiwan 2 China
Dimension Taiwan 1 Taiwan 2 China
Schematic Taiwan 1 Taiwan 2 China
3D Model Taiwan 1 Taiwan 2 China
Compatibility List Taiwan 1 Taiwan 2 China


AAW Blank Panel PE4H v 3.2
OPW Ring-Panel Type Cover Type
Australia UK EXM2E
