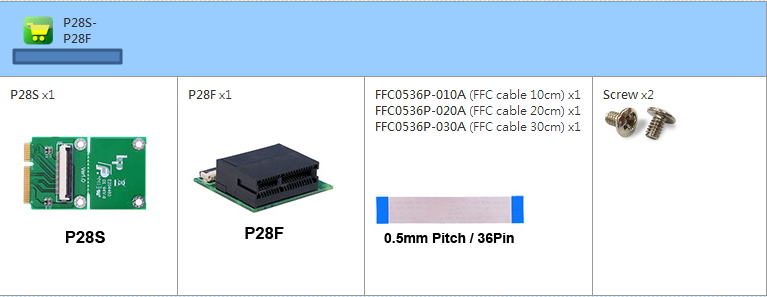

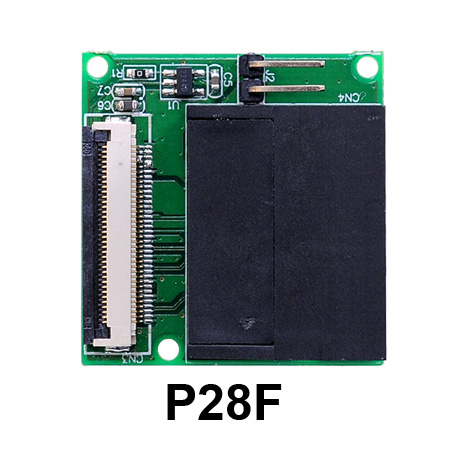

P28S-P28F

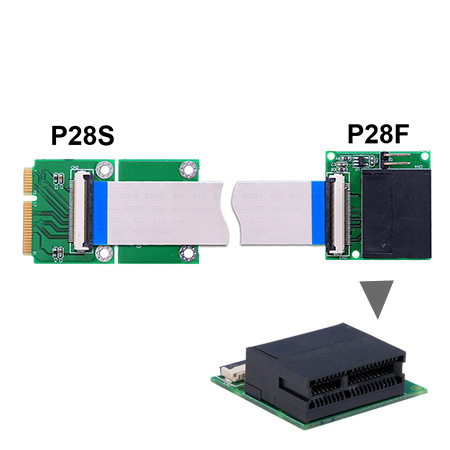

P28S-P28F Extender is a debug and test tool to extend PCI-Express slot from MiniCard (mPCIe) slot. Design the FFC (Flat Flexible Cable) cable for flexible use.

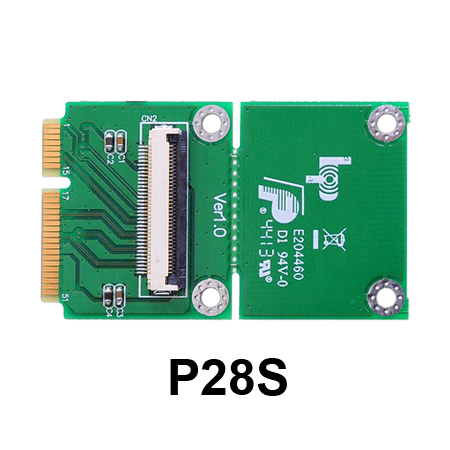

Not only for Full-size MiniCard adapter but also Half-size MiniCard by removing extra Full-size extensions.

The extender is designed to minimize the signal degradation effects of the extender by proven design techniques. It’s also a powerful tool for engineers and factory tests.

manufacture:Bplus

Function

Easy Installation, Plug and Play
No drivers needed for this MiniCard to ExpressCard Adapter
Support Windows 2000/Server 2003/XP & XP 64-bit/Vista & Vista 64-bit/ 7 & 7 64-bit
Supports PCI Express based MiniCard slot
Miscellaneous: WAKE#, PERST#
Support external 12V power supply by pin header

Warning:
If MiniCard slot on the host does not support PCIe interface, the interface can not be supported.
Other PCIe speed of PCIe2.0 (5Gbps)/PCIe3.0(10Gbps) is not guaranteed.

Specification

PCI Express™ Mini Card Electromechanical Specification Revision 1.0
PCI Express base Specification 1.1 (Up to 2.5Gpbs)
System Management Bus (SMBus) Specification, Version 1.1
PCI Express Card Electromechanical (CEM) Specification 1.1
