USBM2 -E-SMA v2.0

M.2 stands for Next Generation Form Factor which is invented for PCI-SIG by Intel and it is developed for

flat and high-efficiency equipment such as Ultrabook? or Tablet PCs. It is a natural transition from the Mini

Card and Half Mini Card to a smaller form factor in both size and volume which supports multiple function

add-in cards/modules including: Wi-Fi, Bluetooth, global navigation satellite systems, near field

communication, Hybrid digital radio, wireless gigabit alliance (WiGig), wireless wide area network and

solid-state storage devices. Also adds functionality to USB 3.0, display Port, SDIO and SSD-PCIe.

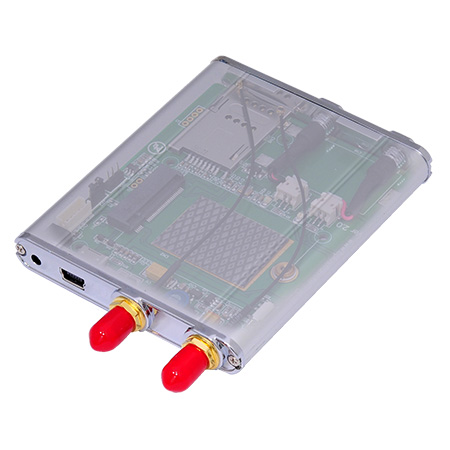

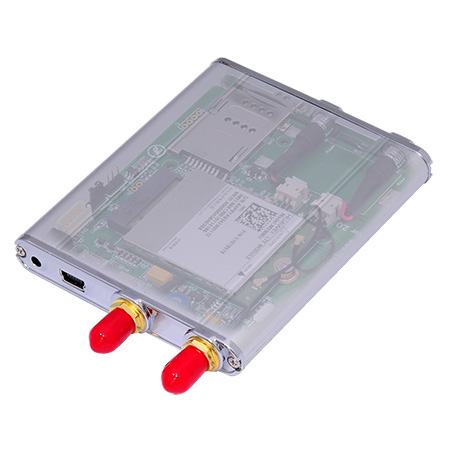

The USBM2 adapter is designed for desktop/Laptop PCs that convert 3G wireless M.2 Card to USB port.

You can insert your M.2 card (Socket 2 SSIC-base WWAN) such as GSM, HSPA(3.5G), GPS, LTE cards to this

adapter then plug to USB port through USB cable.

Standard SIM card Push connector is provided.

manufacture:Bplus

USB mini type-B connection to desktop or notebook PC
Supports system bus interface: USB (mini-B Connector)
Supports USB interface of M.2 Cards (Socket 2 SSIC-base WWAN) such as 2G GSM, GPRS, 3G,CDMA, WLAN,WWLAN, HSPA MODEM , GPS, 4G WiMAX, LTE, Mini Card to desktop PC.

Support SIM card Push Push connector.

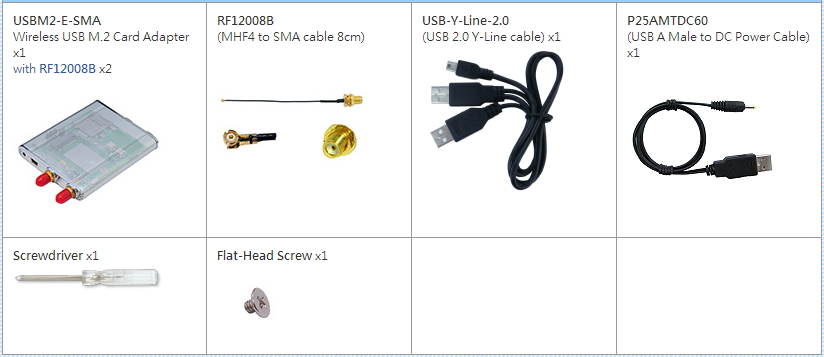

Support MHF4-RPSMA IPX 8cm cable
Support MHF4-SMA IPX 8cm cable (Option)
DC Jack: External 5V Power Input
Support 3042 type M.2 card
Support Suspend Clock

Antenna Products (Click for Bplus Antenna Comparison link) :
(Option) 800/1800 MHz Duck Antenna
(Option) 900/2100 MHz Duck Antenna
(Option) 2.4GHz MHz 2.15dBi Rubber Duck Antenna
(Option) 2.4/5.8GHz Rubber Duck Antenna
(Option) 5.8GHz 5dBi Rubber Duck Antenna
(Option) 2.3GHz 2.15dBi Rubber Duck Antenna
(Option) 2.5GHz 2dBi Rubber Duck Antenna
(Option) 3.5GHz 2.5dBi Rubber Duck Antenna

Specification

M.2 Card to USB adapter.
M.2 Specification Revision 0.9
Universal Serial Bus Specification Revision 2.0
3042 type M.2 Card dimension.

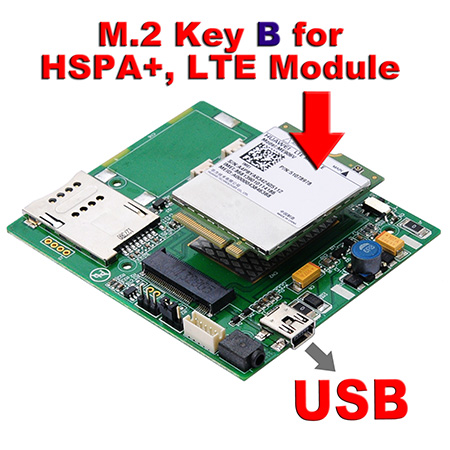

M.2 Mechanical Key: Key B
SIM Connector for CDMA HSDPA/HSUPA,UMTS, GSM, GPRS, EDGE

System Requirements

USB port
Windows 2000, XP, Vista 32/64, Windows 7, Windows 8 or Linux

Notice:

USBM2 is M.2 (NGFF) passive adapter. Just only support Socket 2 SSIC-based WWAN M.2 Module (Key B)
