PC Components/PCI-E x1~16 Extender

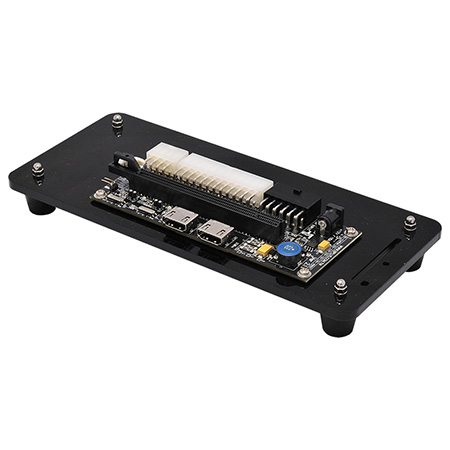

PE4C V2.1a --EC100C
  • (PCIe x16 Adapter)
manufacture:Bplus


    First Impression



PE4C VGA Recommendation From

  • Suitable
  • Not suitable
  • Not suggest
  • for Server





Compatibility test table
  • Table 1
  • Table 2
  • Table 3
  • Table 4
  • Table 5

    Function

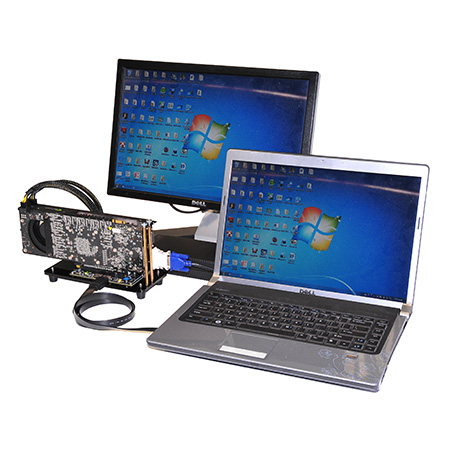

  • VGA card connection to computer or notebook PC
  • Support dual channel signal transfer.
  • Support two delay switch to avoid registration problems when boot.
  • Special foot cone, avoid graphics card fan noise.
  • Support ATX power boot together function.
  • DC Jack: External 12V Power Input.
  • Support Suspend Clock
  • Support two sets external pin to setup delay time.
  • Support PCIe x2 by connect two cables. (PM100C/EC100C/HP100C/HP2A100C/PM4N)

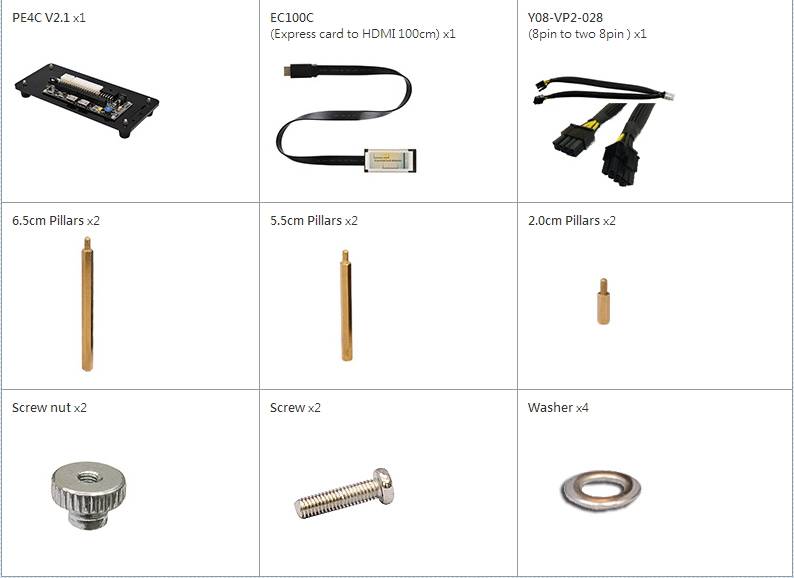

  • Oprion Products  :

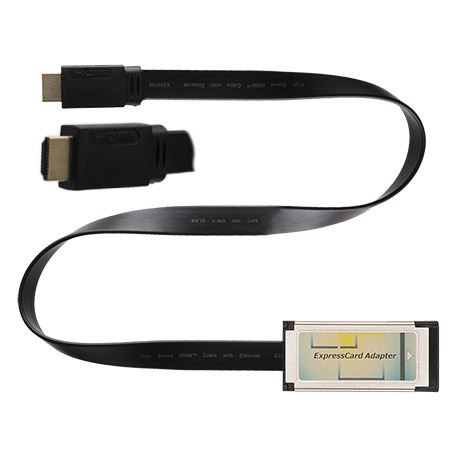

    (Option) EC100C – Express card adapter, 100cm fixed cable
    (Option) PM100C – Half/Full mPCI-e adapter, 100cm fixed cable.
    (Option) HP100C – PCI-e adapter, 100cm fixed cable
    (Option) PM4N – Full mPCI-e adapter with 95cm HDMI cable
    (Option) HP2A –PCI-e X2 adapter (No HDMI cable)
    (Option) HP2A100C –PCI-e X2 adapterr, Dual 100cm fixed cable



    System Requirements

  • Notebook PC or Desktop PC with an available ExpressCard slot orPCI-E slot or PCI Express mini card slot
  • Windows 8 (32-/64-bit) / 7 (32-/64-bit) / Vista (32-/64-bit) SP2 or later/ XP (32-/64-bit) SP3 or later



    Specification

  • PE4C-EC100C V2.1 allows user to test PCI Express x16 Add-in-Card on the ExpressCard slot via 100cm cable.
  • PE4C-PM100C V2.1 allows user to test PCI Express x16 Add-in-Card on the PCI Express mini card (mPCIe) slot via 100cm cable..
  • PE4C-HP100C V2.1 allows user to test PCI Express x16 Add-in-Card on the PCI-e slot via 100cm cable..
  • Compliant with PCI Express 2.0 Specification: Maximum 5Gbps
  •  Power Supply: ATX PSU, DC adapter, 8PIN connector (for D220P AC adapter),Three select one.

    Dimension & Weight

  • 22cm x 9.5cm x 4cm 200g

    Certifiction

  • RoHS

    Operating Temperature

  • 0 ~ 70℃

    Notice

  • PE4C V2.1 is PCIe 1-Lane 5.0Gbps bandwidth limit passive adapter in compliance with Expresscard 2.0 specification.
  • Basically, PCIe add-on card designed for desktop. We can’t guarantee it compatibility with your laptop. Depends on OS version, notebook’s BIOS, device driver,
  • Almost PCIe 16x video card can’t get enough memory resource are allocated. Can’t work in your laptop.
  • External Power ATX Power required.
  • All of interoperability is not guaranteed.
  • For more graphics cards experiences. Please visit web-site here.
  • E4C V2.1 design with Dell D220P AC adapter for power off control.
    Our D220P AC adapter is refurbished, but function is no problem. Because D220P already EOL by Dell.



Notice:
PE4C V2.1 design with Dell D220P AC adapter for power off control.
Our D220P AC adapter is refurbished, but function is no problem.
Because D220P already EOL by Dell.
