MM3U-DB3U V1.1
  • (DB3U to MiniCard Vertical Extender with SIM Card Slot)
manufacture:Bplus

Introduction:
MM3U is vertical extender from MiniCard slot to MiniCard together with DB3U.It is very convenient especially to apply“full-size”MiniCard module to “half-size”MiniCard slot.
As MM3U has a SIM card slot, wireless MiniCard modules which require SIM Card such as 3.5G HSPA can be used, even though original MiniCard slot is not connected to SIM card slot.
As all of 1.5V power supply pins of MiniCard slot have series termination, 1.5V power supply can be isolated separately so that MiniCardmodules using 1.5V pins as GPIO can be used.
Combination of MM3U and DB3U is the best solution for MiniCard evaluation.

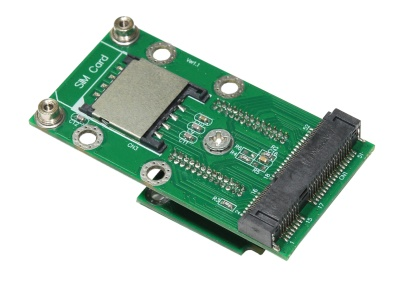

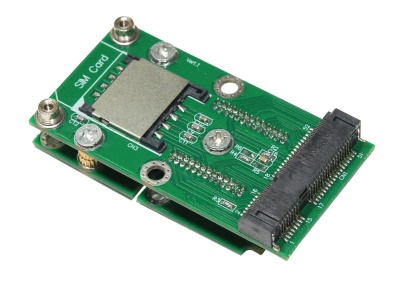

MM3U DB3U
Easy Installation Guide
STEP 1 STEP 2
STEP 3 STEP 4
STEP 5 STEP 6
STEP 7




Features

  • PCI Express Mini Card Electromechanical Specification Revision 1.2
  • Designed for MiniCard evaluation.
    = Vertically extend MiniCard Slot
  • SIM Card Slot : Suitable for wireless MiniCard modules (HSDPA/HSUPA, UMTS, CDMA GSM, GPRS, EDGE)
  • MiniCard Slot for module: Both Full-size and Half-size.
  • 1.5V Isolation: Series termination resistors for each MiniCard slot 1.5V pins.
  • Host Side MiniCard Slot (DB3U):
    Both Full-size and Half-size MiniCard slot
    * DB3U is required for MM3U.

System Requirements

  • Half-Size or Full-Size MiniCard slot
    (DB3U required to be installed)
  • DB3U: Companion board ForHost Side MiniCard Slot
  • SIM Card Slot : Suitable for wireless MiniCard modules (HSDPA/HSUPA, UMTS, CDMA GSM, GPRS, EDGE)
  • MiniCard module

Notice:
MM3U-DB3U with mPCIe module works only in mPCIe slot of system. mSATA module only for mSATA slot as well.
Do NOT insert mPCIe module into mSATA slot, or mSATA module into mPCIe slot via MM3U-DB3U. Otherwise, permanent damage may occur for the module, the MM3U-DB3U and/or the system.

MiniCard Slot of System

Attached module for MM3U-DB3U slot

Availability

mPCIe (MiniCard) Slot

mPCIe (MiniCard) module

OK

mSATA module

NG

mSATA Slot

mPCIe (MiniCard) module

NG

mSATA module

OK





Documents Download
Brief v1.1  Taiwan 1   Taiwan 2 Mirror   China Mirror
Brief v1.0  Taiwan 1   Taiwan 2 Mirror   China Mirror
Dimension  Taiwan 1   Taiwan 2 Mirror   China Mirror
Schematic  Taiwan 1   Taiwan 2 Mirror   China Mirror
