P21S-P21F-D180
  • (Flexible x1 PCI Express Extender)
manufacture:Bplus

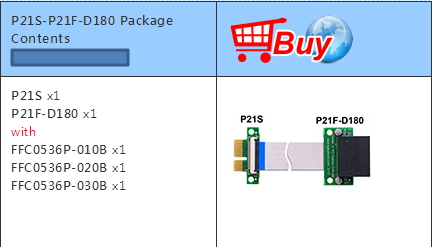

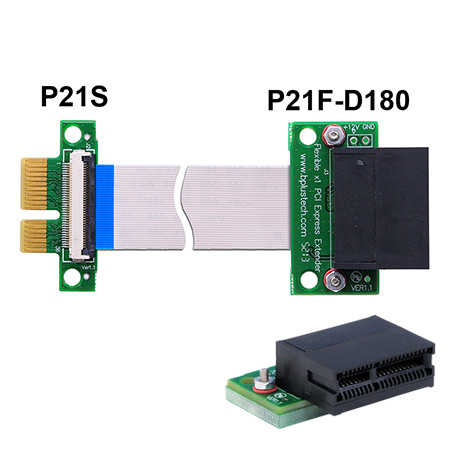

P21S-P21F PCI Express Extender is a debug and test tool. Design the FFC (Flat Flexible Cable) cable for flexible use.
As PCI Express x1 connector is edge-free / multi-lane, x4, x8 and x16 PCIe Cards are also available.
The PCI-Eextender is designed to minimize the signal degradation effects of the extender by proven design techniques.
It’s also a powerful tool for engineers,or use for PCI-E test protection.



OPTION: FFC0536P-050B (FFC cable 50cm)
The PCIe Tx and Rx signal is reverse between P21SR-P21FR (KZ-B21 V1.0R) and P21-P21F (KZ-B21 V1.1)
Application 1P21S-P21SR : PCIe 1X to PCIe 1X Extender
Application 2P21F-P21FR : PCIe slot (Edge Free) to PCIe Slot (Edge Free) Extender

*Blue belt: Upper Side

*Blue belt: Upper Side
