Specification

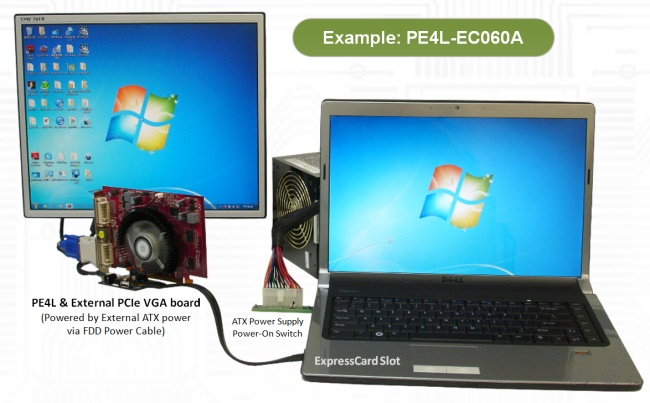

• PE4L-ECxxxA allows user to test PCI Express Add-in-Card on the ExpressCard slot
• PE4L-PMxxxA allows user to test PCI Express Add-in-Card on the PCI Express mini card (mPCIe) slot.

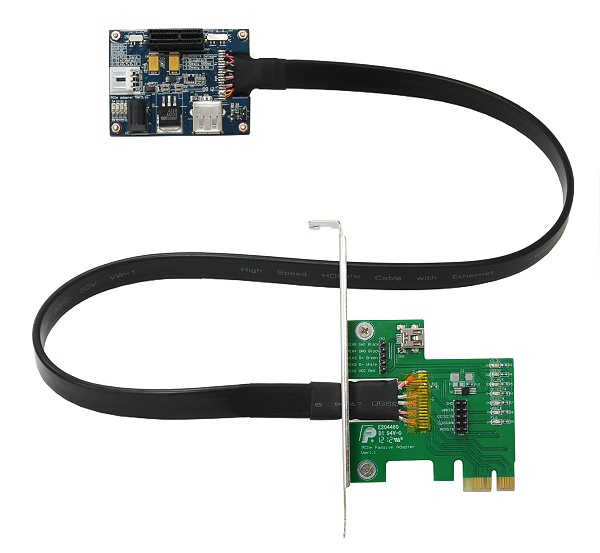

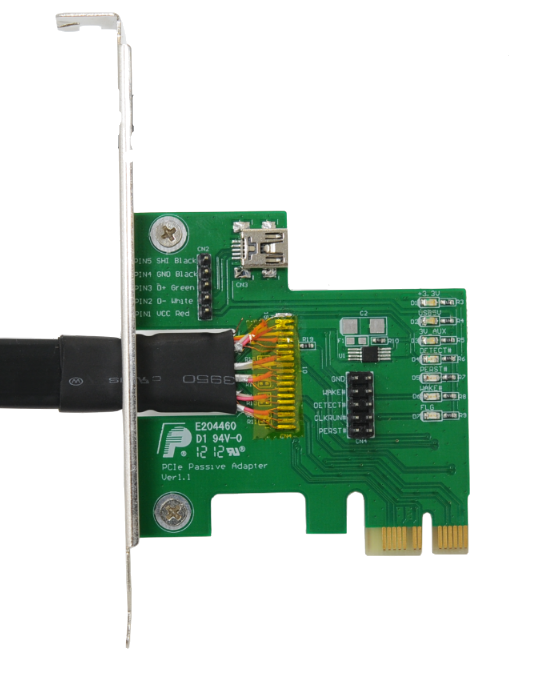

• PE4L-HPxxxA allows user to test PCI Express Add-in-Card to be extend from PCIex1 (or x4, x8, x16) slot.
• Compliant with PCI Express 2.0 Specification: Maximum 5Gbps
• Compliant with USB2.0 Specification: Maximum 480Mbps
• Edge-Free / Multi-lane PCIe x1 Connector:x4, x8, x16 PCI Express Add-in-Cards are available.
• Cable Length:
  PE4L-EC060A / PE4L-PM060A / PE4L-HP060A Lenght 60cm
  PE4L-EC030A / PE4L-PM030A / PE4L-HP030A Lenght 30cm (OEM)
  PE4L-EC100A / PE4L-PM100A / PE4L-HP100A Lenght 100cm (OEM)
  PE4L-EC150A / PE4L-PM150A / PE4L-HP150A Lenght 150cm (OEM)
  PE4L-EC200A / PE4L-PM200A / PE4L-HP200A Lenght 200cm (OEM)
  PE4L-EC300A / PE4L-PM300A / PE4L-HP300A Lenght 300cm (OEM)
  PE4L-EC400A / PE4L-PM400A / PE4L-HP400A Lenght 400cm (OEM)
  PE4L-EC500A / PE4L-PM500A / PE4L-HP500A Lenght 500cm (OEM)

System Requirements

• Notebook PC or Desktop PC with an available ExpressCard slot or PCI Express mini card slot or PCI Express slot.
• Windows 7 (32-/64-bit) / Vista (32-/64-bit) SP2 or later/
  XP (32-/64-bit) SP3 or later

Notice:

1. PE4L is PCIe 1-Lane 5.0Gbps bandwidth limit passive adapter in compliance with Expresscard 2.0 specification
2. PE4L design for engineering test. NOT for home or office use.
3. Basically, PCIe add-on card designed for desktop. We can’t guarantee it compatibility with your laptop. Depends on OS version, notebook’s BIOS, device driver,
4. External Power (ATX Power or AC-DC12V adapter) required.
5. All of interoperability is not guaranteed.
6. For more graphics cards experiences. Please visit web-site her

Documents Download
PE4L v2.1 Brief	Taiwan 1	Taiwan 2 Mirror	China Mirror
Dimension	Taiwan 1	Taiwan 2 Mirror	China Mirror
Schematic V2.1b	Taiwan 1	Taiwan 2 Mirror	China Mirror
Schematic V2.1a	Taiwan 1	Taiwan 2 Mirror	China Mirror
