PC Components/ M.2 Extender/Adapte

P4SM2

M.2 stands for Next Generation Form Factor which is invented for PCI-SIG by Intel and it is developed for flat and high-efficiency equipment such as Ultrabook? or Tablet PCs. It is a natural transition from the Mini Card and Half Mini Card to a smaller form factor in both size and volume which supports multiple function add-in cards/modules including: Wi-Fi, Bluetooth, global navigation satellite systems, near field communication, Hybrid digital radio, wireless gigabit alliance (WiGig), wireless wide area network and solid-state storage devices. Also adds functionality to USB 3.0, display Port, SDIO and SSD-PCIe

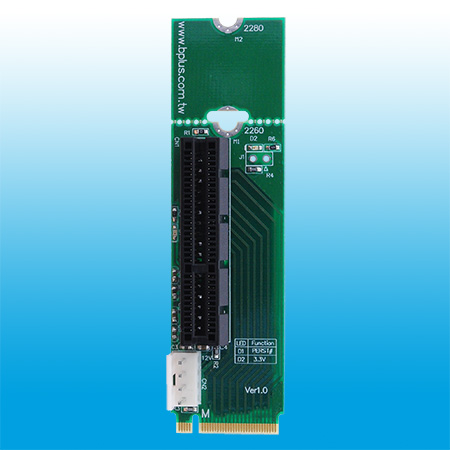

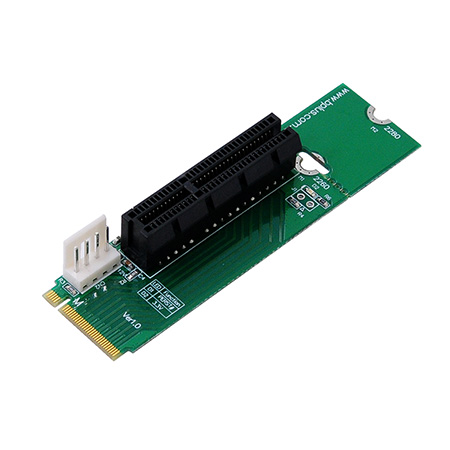

P4SM2 is PCIe x4 adapter from M.2 Socket 3. This module allows you connect any PCIe device to M.2 slot through a standard PCIe x4 port and power cables.

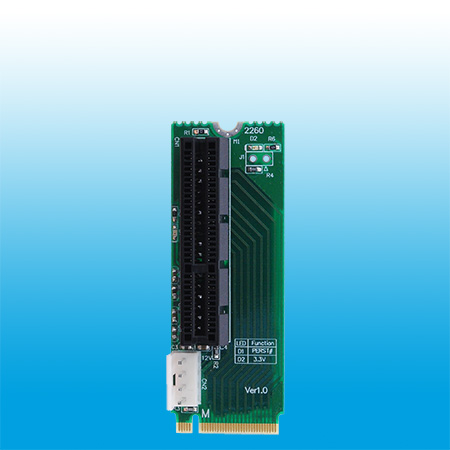

P4SM2 supports M.2 socket 3 with TYPE 2260/2280-D2-M of PCIe SSD.

P4SM2 also support 12V power by 4pin FDD power connector for Standard PCIe device.

P4SM2 is the best solution to evaluate M.2 PCIe SSD socket.

manufacture:Bplus

Function

Standard PCIe x4 interface adapter from M.2-Socket3-M-2260/2280 slot for PCIe SSD.

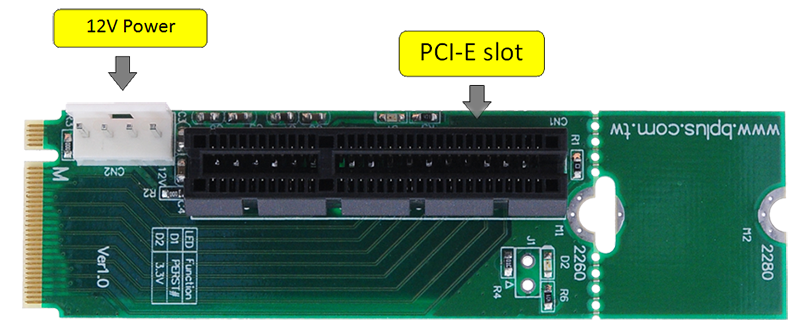

Interface : Standard PCIe X4 slot
No drivers needed for this Adapter
As PCI Express x4 connector is edge-free / multi-lane, x1, x8 and x16 PCIe Cards are also available.
12V power support by 4pin FDD power connector
