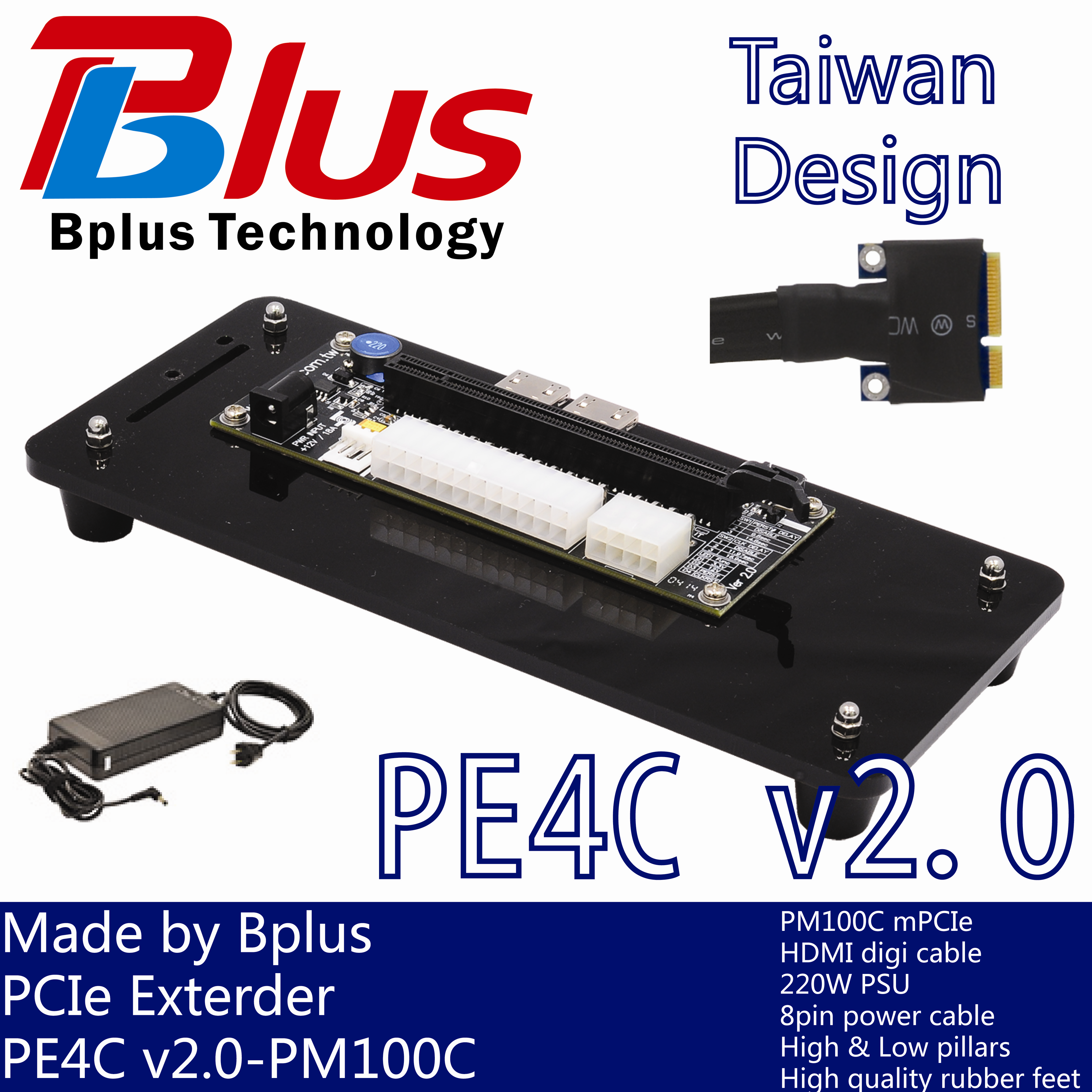

PE4C -PM100C v2.0

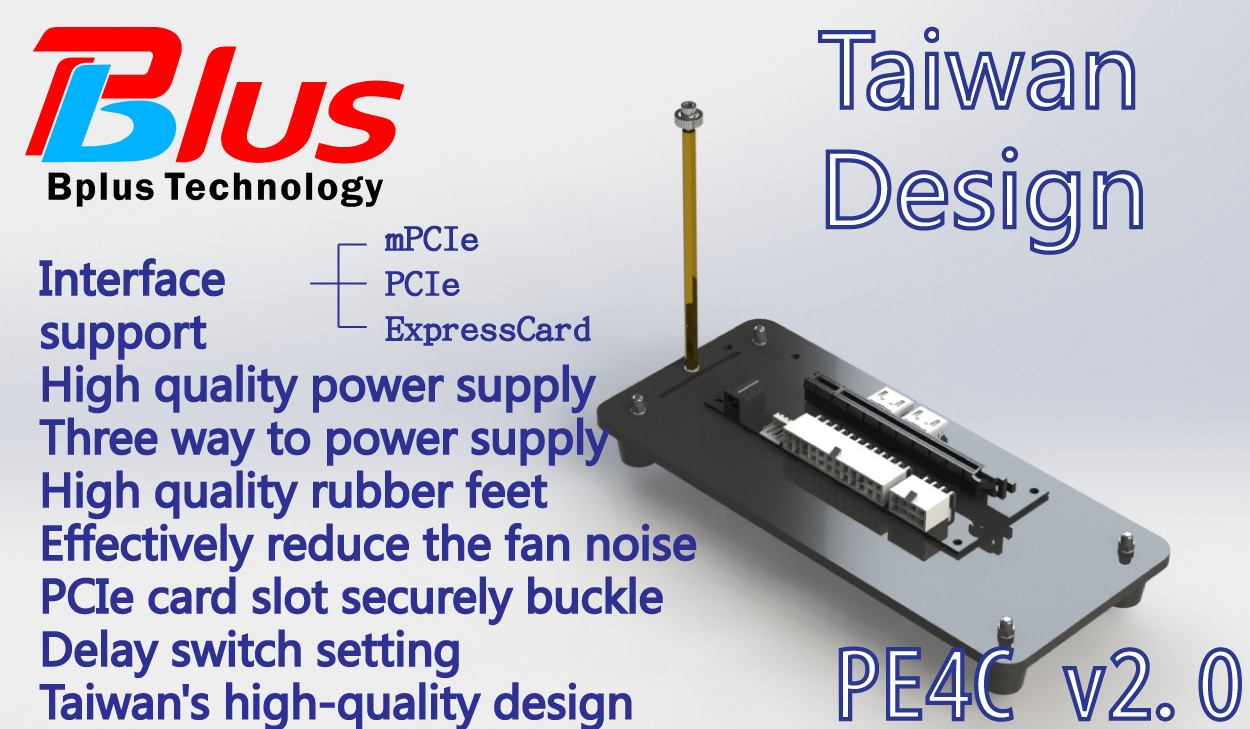

The PE4C V2.0 is designed for Notebook PCs that converts PCI Express 16X Add-on Card to ExCard or

mPCIe or PCIe connecter.

This adapter allows you to use your existing PCI-E 16X Card in the notebook PC for gaming

manufacture:Bplus

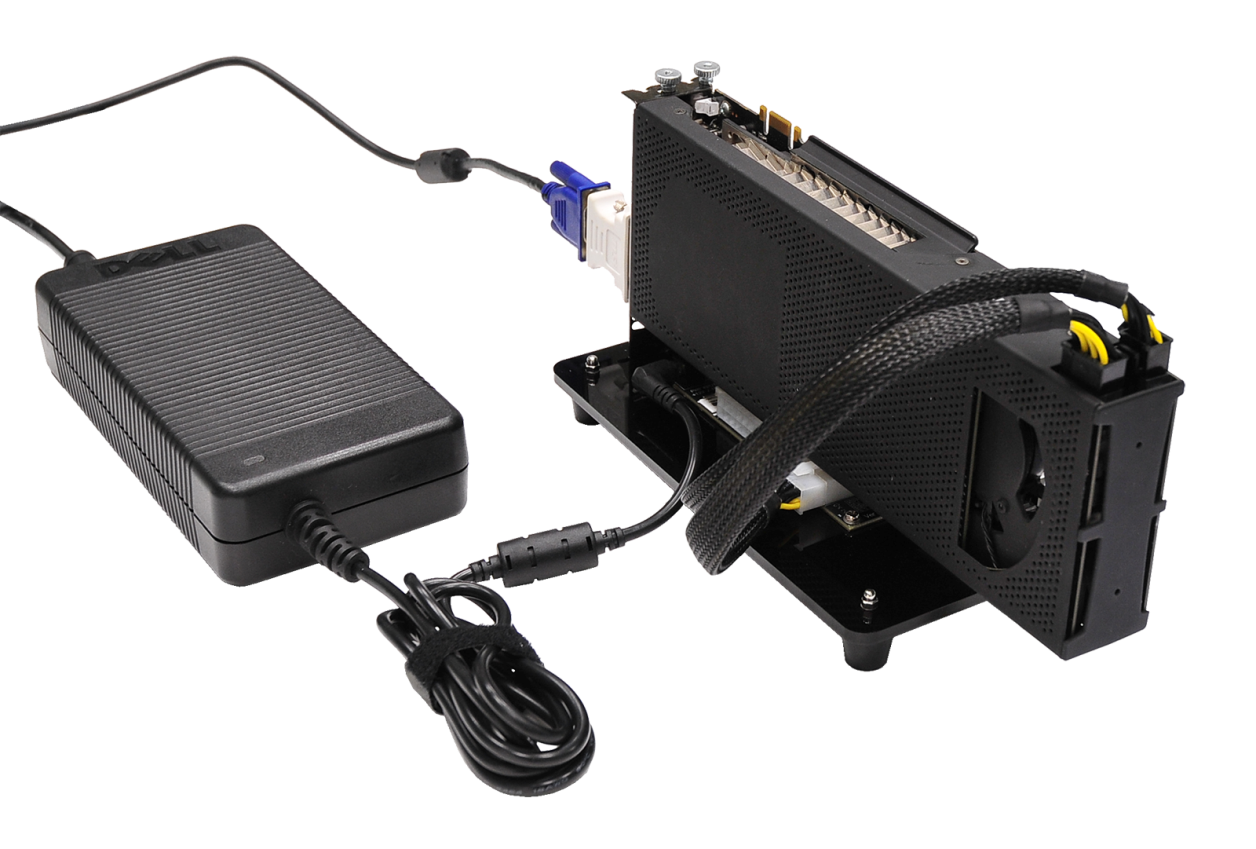

VGA card connection to computer or notebook PC
Support dual channel signal transfer.
Support two delay switch to avoid registration problems when boot.
Special foot cone, avoid graphics card fan noise.
Support ATX power boot together function.
DC Jack: External 12V Power Input.
Support Suspend Clock
Support two sets external pin to setup delay time.

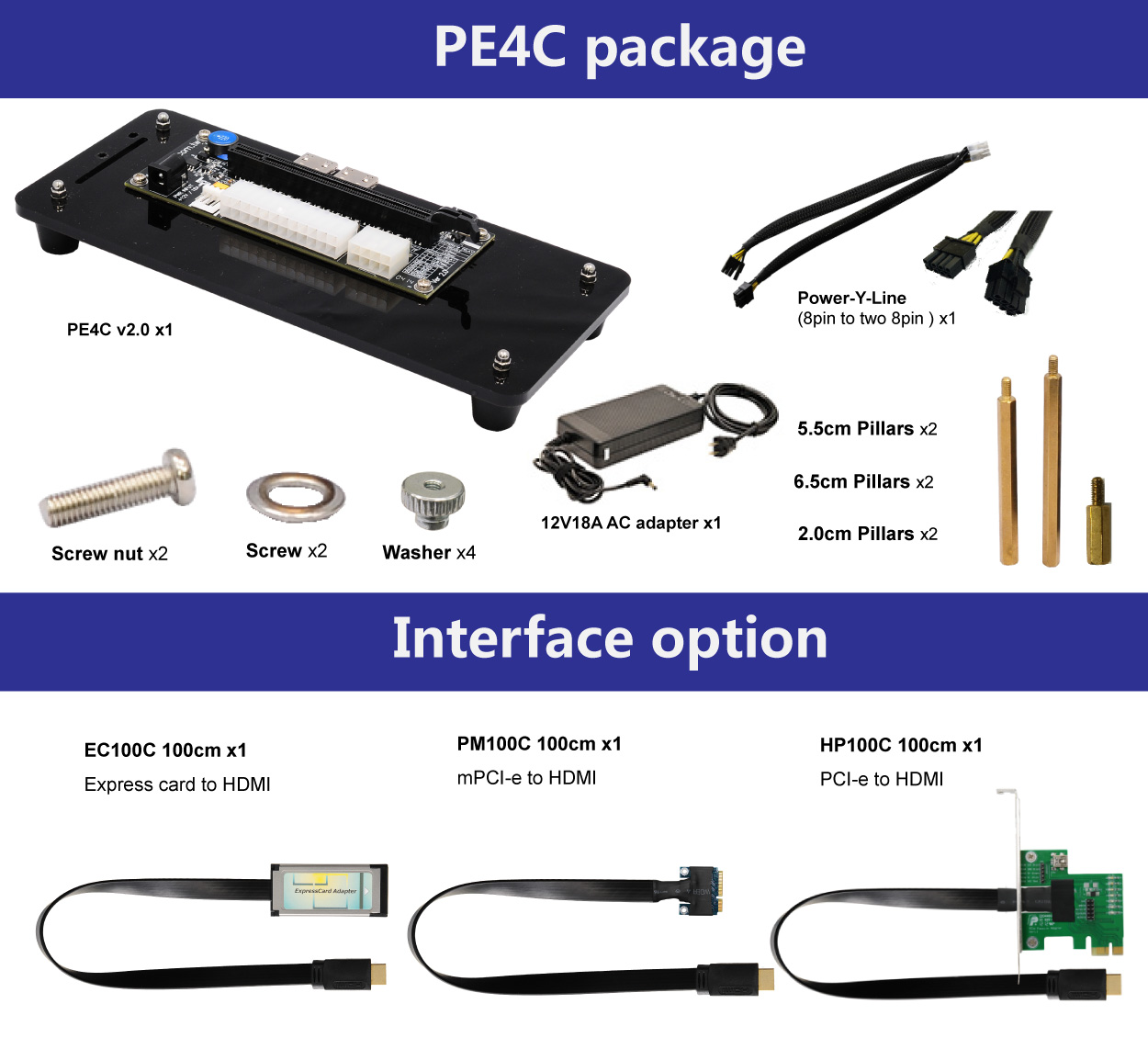

Oprion Products :
(Option) EC100C – Express card adapter
(Option) PM100C – mPCI-e adapter
(Option) HP100C – PCI-e adapter

PE4C-EC100C V2.0 allows user to test PCI Express x16 Add-in-Card on the ExpressCard slot
PE4C-PM100C V2.0 allows user to test PCI Express x16 Add-in-Card on the PCI Express mini card (mPCIe) slot.
PE4C-HP100C V2.0 allows user to test PCI Express x16 Add-in-Card on the PCI-E slot.
Compliant with PCI Express 2.0 Specification: Maximum 5Gbps
Power Supply: ATX PSU, DC adapter, USB power connect,Three select one.
