PC Components/ WiFi,LTE Adapter

MP1

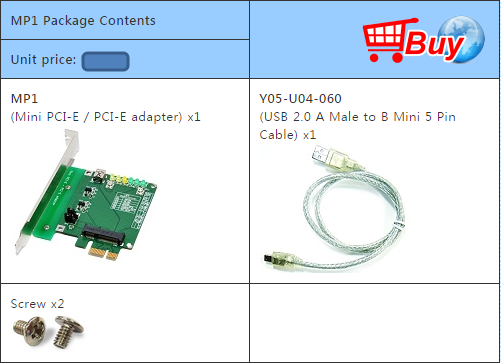

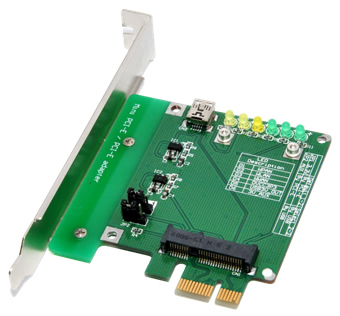

Mini PCI-E / PCI-E Adapter

manufacture:Bplus

Introduction:
The PCI-E Mini Card passive adapter is designed for desktop PCs that converts Mini-Card to USB port or standard PCI-Express 1x slot.
You can insert your USB type minicard to this adapter then plug to USB port through USB cable.
Or insert your PCI-E type mini-card into this adapter then insert to PCI-E 1x connector

Features

Mini PCI express to PCI express 1x converter.
Allows user to test PCI Express Mini modules on the PCI Express slot.
Allow user to test USB Mini-card modules on the USB port.
Supports two primary system bus interface: PCI Express and USB
Supports all of Mini-Cards such as 3G,CDMA, WLAN,WWLAN, MODEM Mini Card to desktop PC.

Notice
There are existing mPCIe 'form factor' SSD's that present SATA and PATA interface, but none that use the standard mPCIe pinout (i.e. mPCIe tx/rx pins). ...
MP1 support standard mPCIe minicard. Can??t support custom SATA/PATA SSD minicard.
Please check compatibility list for detail.

System Requirements

PCI-Express 1x slot and USB port
Windows 2000, XP, Vista 32/64,Windows 7
Linux

Documents Download
Brief(PDF):	Taiwan 1	Taiwan 2 Mirror	China Mirror
Dimension (PDF):	Taiwan 1	Taiwan 2 Mirror	China Mirror
Schematic (PDF):	Taiwan 1	Taiwan 2 Mirror	China Mirror
User manual(PDF):	Taiwan 1	Taiwan 2 Mirror	China Mirror
Compatibility List(PDF):	Taiwan 1	Taiwan 2 Mirror	China Mirror
