PC Components/SSD/Storage adapter

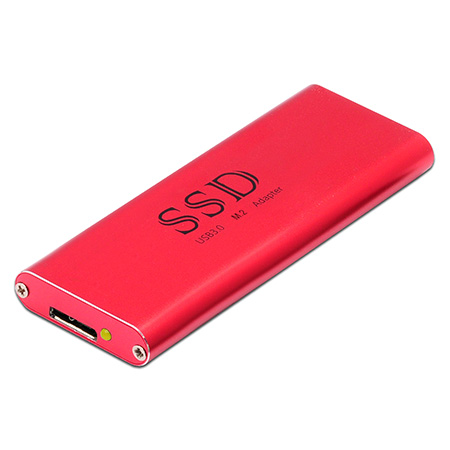

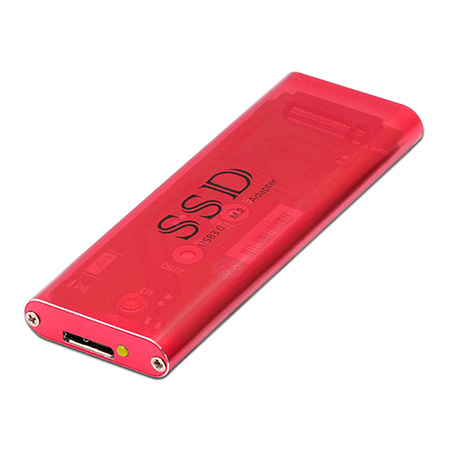

U3M2M-R
  • U3M2M is M.2 PCIE SSD to USB3.0 adapter design for PCI-SIG M.2 PCIe SSD mobile solution. This adapter is allow to use M.2 PCIE SSD 2242 / 2260 / 2280 module with KeyM or B+M through USB3.0 port on your desktop or laptop.
manufacture:Bplus

    Function


  • Allows user to use standard M.2 PCIe SSD to USB3.0 port in the Desktop or Laptop
  • Compatible with 2240, 2260, 2280 (XXYY: XXmm width, YYmm length) dimension size of M.2 PCIE SSD Module with KeyM or KeyB+M.
  • Active LED
  • Support Hi-Speed USB 3.0(5Gbps), PCIe Gen2 5Gb/s  mass storage interface.



    Dimension & Weight


  • 98.5mm X 37.5mm X 10mm  ; 23.5g (No SSD included)

    System Requirements


  • Windows XP/Vista/7/8/8.1/Server 2008, Linux, Mac iOS

    Certification


  • RoHS

    Operating Temperature


  • 0 ~ 70℃

Brief Taiwan 1 Taiwan 2 China
Dimension Taiwan 1 Taiwan 2 China
Schematic Taiwan 1 Taiwan 2 China
3D Model Taiwan 1 Taiwan 2 China
SSD Adapter Selection Guide Taiwan 1 Taiwan 2 China
