PC Components/mPCIe Extender/Apapt

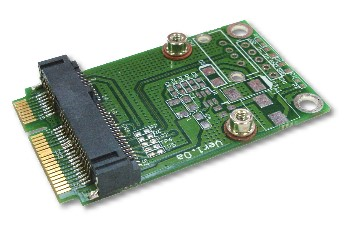

MM2U-C V1.2
  • (Half to Full minicard Adapter)
manufacture:Bplus

Introduction:
The MM2U-C half to full mini card is a converter tool for minicard interface.
This module allows you to use your half mini card in the full mini card slot.
It's especially designed to save valuable labor and time in the production environment.






Features

  • Supports half mini card to full size minicard slot.
  • Add PTC fuse protect your circuit.
  • Add 3V to 5V, DC2DC circuit.
  • Add USB 2.0 connector and 2.54mm pitch 5PIN USB 2.0 connector.
  • Add Power LED, Access LED.
  • High quality connectors for long service life.

System Requirements: MiniCard full size slot

Dimension: Width 30mm, Length 51mm, PCB Thickness 1.0mm Max




Functions comparison
MM2U Ver 1.0a
MM2U Ver 1.2
MM2U-C Ver1.0a
MM2U-S Ver1.1
PCIE Type
Yes
Yes
Yes
Yes
USB Type
Yes
Yes
Yes
Yes
SIM card connector
No
Yes
No
Yes
Mini card dimension support
Half
Half
Half
Half
USB device
Yes
Yes
No
No
3V to 5V DC2DC circuit
Yes
Yes
No
No
USB 5V Power LED
Yes
Yes
No
No
Access LED
Yes
Yes
No
No





Documents Download
ver1.2 Brief  Taiwan 1   Taiwan 2 Mirror   China Mirror
ver1.2 Dimension  Taiwan 1   Taiwan 2 Mirror   China Mirror
ver1.2 Schematic  Taiwan 1   Taiwan 2 Mirror   China Mirror
ver1.0 Brief  Taiwan 1   Taiwan 2 Mirror   China Mirror
ver1.0 Dimension  Taiwan 1   Taiwan 2 Mirror   China Mirror
ver1.0 Schematic  Taiwan 1   Taiwan 2 Mirror   China Mirror
Comparison table  Taiwan 1   Taiwan 2 Mirror   China Mirror
