EC230

(SD / SDHC / SDIO Card Reader)

manufacture:Bplus

Introduction:

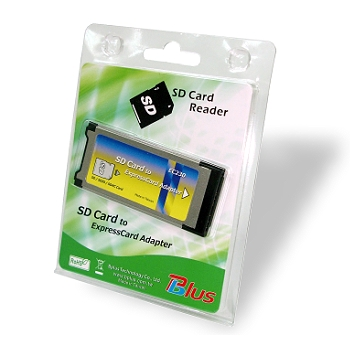

SD card to Expresscard adapter design for high speed SD cards. You can easily add SD card to your notebook with 34/54mm ExpressCard slot.

Specification

Compliant with ExpressCard 1.0 specification.
Compliant with PCI Express Base Specification rev 1.1
Compliant with SD Memory Card Specification Version 2.0
Support SD High Capacity (SDHC)
Compliant with SD Input / Output (SDIO) Card Specification Version 2.0
Compliant with SD Host Controller Standard Specification Version 2.0
Compliant with MMC MultiMediaCard Specification Version 4.1
1. Supports MMC Plus and MMC Mobile. (4bit only)

Notice

To use SD / SDHC Cards on Windows XP/VISTA/7 your system requires install RICOH private driver for more compatibility (download here). Otherwise your SD cards can’t work properly.
To use SDIO wireless Cards on Windows 7, your system requires choose Microsoft SDA host inbox driver. And SP1 Update or Windows 7 (KB983177) hotfix update.
To use SD / SDHC Memory Card Formatting Software, Please download file from SDCARD.org web-site as below:
http://www.sdcard.org/consumers/formatter_3/
Please backup your data before using the formatting program.

Box Contents:

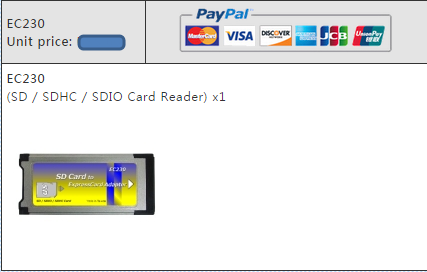

ExpressCard/34 SD card adapter

System Requirements:

Notebook or desktop PC with an available ExpressCard slot.
Windows 7 (32-/64-bit) / Vista (32-/64-bit) SP2 or later/
XP (32-/64-bit) SP3 or later

EC220 Special design
	1. RICOH R5U230 PCIe bridge controller. 2.Serial EEPROM for code upgradeable. 3.Hi quality SD push-push connecter. 4. Expresscard 26PIN connecter.

SDIO Compatibility List
Brand	Model	Chip	Compatibility
			MR04R	EC230	MP230
			miniPCI-e	ExpressCard	Add-on card
Atheros	SD25	AR6102	Pass	Pass	Pass
Atheros	SD27	AR6102	Pass	Pass	Pass
Atheros	SD31	AR6003	Pass	Pass	Pass
Atheros	SD32	AR6003	Pass	Pass	Pass
Atheros	WB31	AR6003+AR3001	Pass	Pass	Pass
Atheros	SD31B	AR6003	Pass	Pass	Pass
Atheros	SD32B	AR6003	Pass	Pass	Pass
SPIL	AF-N-30G	AR6003	Pass	Pass	Pass
USI	WM-AN-AT-01	AR6003	Pass	Pass	Pass
USI	WM-BN-AQ-01	AR6003	Pass	Pass	Pass
ASE	SAT11C	AR6003	Pass	Pass	Pass
Brand	Model	Chip	miniPCI-e	ExpressCard	Add-on card
Brand	Model	Chip	MR04R	EC230	MP230
Notice:
To use SDIO wireless Cards on Windows 7, your system requires choose Microsoft SDA host inbox driver. And SP1 Update or Windows 7 (KB983177) hotfix update.

EC230 Ver1.0 Model: HP ProBook 4421s System : win7 SP1 32 bit Test Tools : DiskMark CPU: intel(R)Core(TM)i5 CPU M 460 @ 2.53GHz 2.53GHz RAM : 4.00GB Graphics card : ATI Mobility Radeon HD 5470
EC230 TEST 1 Driver: SDA Standard Compliant SD Host Controller	TOSHIBA Class 10 SDHC 8GB	TOSHIBA UHS-1 SDXC 64GB	SanDisk SDHC Class UHS-1 8GB
Read (MB/S)	22.08 MB/S	22.08 MB/S	22.08 MB/S
Write (MB/S)	18.50 MB/S	12.75 MB/S	20.21 MB/S

EC230 TEST 2 Driver: Ricoh PCIe SD/MMC Host Controller	TOSHIBA Class 10 SDHC 8GB	TOSHIBA UHS-1 SDXC 64GB	SanDisk SDHC Class UHS-1 8GB
Read (MB/S)	21.38 MB/S	21.37 MB/S	21.06 MB/S
Write (MB/S)	17.77 MB/S	12.67 MB/S	19.61 MB/S

Documents Download
EC230 Brief	Taiwan	Taiwan 2 Mirror	China Mirror
SD cardreader comparison	Taiwan	Taiwan 2 Mirror	China Mirror
Test Report	Taiwan	Taiwan 2 Mirror	China Mirror
SDIO Compatibility	Taiwan	Taiwan 2 Mirror	China Mirror
To use SD / SDHC Cards on Windows XP/VISTA/7 your system requires install RICOH private driver for more compatibility (download here). Otherwise your SD cards can’t work properly
To use SDIO wireless Cards on Windows 7, your system requires choose Microsoft SDA host inbox driver. And SP1 Update or Windows 7 (KB983177) hotfix update.
To use SD / SDHC Memory Card Formatting Software, Please download file from SDCARD.org web-site as below: http://www.sdcard.org/consumers/formatter_3/ Please backup your data before using the formatting program.
