PE3B

(Mini Card to ExpressCard Adapter)

manufacture:Bplus

Introduction:

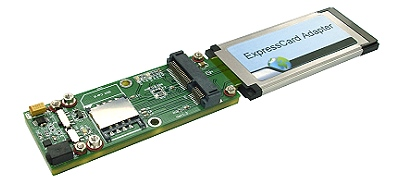

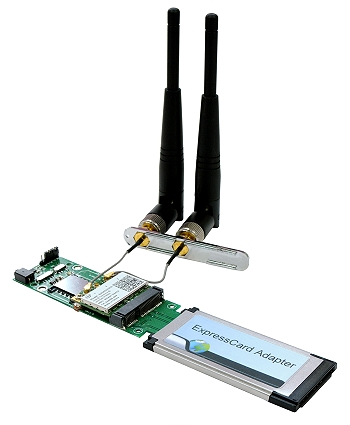

This PE3B passive adapter allows you to use your existing PCI express mini-Card in the ExpressCard Standard slot
Add SIM socket for 3G minicard and add DC jack for external power source.

Specification:

Express Card Standard Release 1.0 (PCMCIA)
PCI Express base Specification 1.0
PCI Express Mini Card Electromechanical Specification Revision 1.2
Universal Serial Bus Specification Revision 2.0
Ready for Full / Half -Mini Card dimension.
SIM Connector for CDMA HSDPA/HSUPA, UMTS, GSM, GPRS, EDGE minicard.
Access LED; Power LED; PERST# LED.
USB2.0 and PCI-E minicard support.
PTC fuses and power switch for power protection.

System Requirements:

ExpressCard Standard Release 1.0 slot
