M2PS

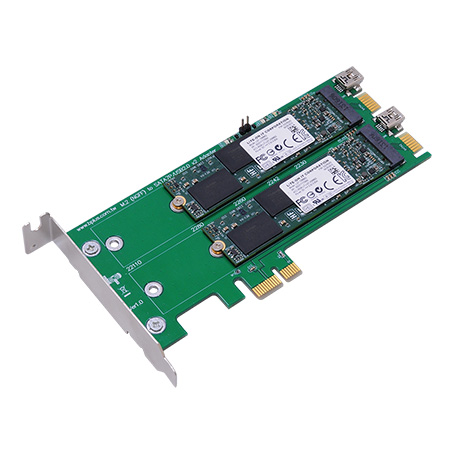

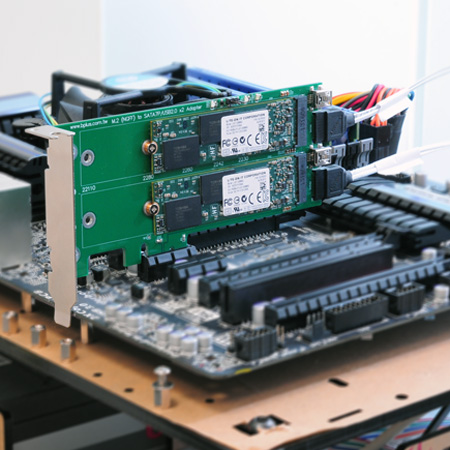

  • M2PS adapter enables two M.2(NGFF) SSD as a HDD Card for desktop PC.
  • This module allows you connect 2 M.2(NGFF) SSD to SATA slot.
  • The module can support system boot.
manufacture:Bplus

Function

  • Allows user to use standard SATA-IO M.2 SATA SSD to SATA hard drive in the Desktop or Laptop
  • Support Hi-Speed SATA3 / 6Gbps mass storage interface.
  • Transparent to the operating system and does not require any software drivers

Specifications

  • M.2 SSD to SATA adapter.
  • M.2 Specification Revision 0.9
  • Serial ATA Spec. Reversion 3.2

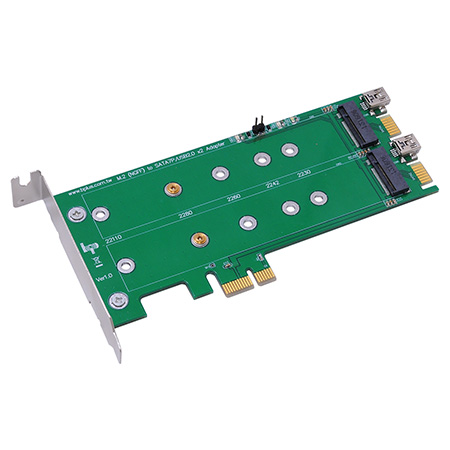

  • Support 2230/2242/2260/2280/22110 type M.2 Card dimension.
  • Support M.2 Socket 2 SATA-based SSD Module
  • Support M.2 Key B Card Type

System Requirement

  • System supporting SATA 7pin data port and PCI-E slot



M.2 SSD to PCI-E from factor Adapter Compatibility List

 2013Dec13
Gerry Chen
Brand / Model Function Interface Size M2P4A M2P4S M2PS   Note
Samsung XP941
MZHPU128HCGM-00000		 SSD PCIe key M 2280 Pass Pass NG
Samsung XP941
MZHPU256HCGL-00000		 SSD PCIe key M 2280 Pass Pass NG
Samsung XP941
MZHPU512HCGL-00000		 SSD PCIe key M 2280 Pass Pass NG
Samsung M.2 128G
MZ-NPD1280		 SSD SATA key B / M 2280 NG NG Pass
Samsung M.2 128G
MZNTD128HAGM		 SSD SATA key B / M 2280 NG NG Pass
BPLUS M2EM SSD SATA key B / M 2242 NG NG Pass
ADATA AXNS341N-64GM-B SSD SATA key B / M 2242 NG NG Pass
Sandisk X110 SSD SATA key B / M 2242 NG NG Pass
Samsung MZNTD128HAGM SSD SATA key B / M 2280 NG NG Pass
Intel
SSD Pro 1500 Series		 SSD SATA key B / M 2280
2242		 NG NG Pass
Intel
SSD 530 Series		 SSD SATA key B / M 2280 NG NG Pass
Tohsiba THNSNHGDNT SSD SATA key B / M 2280 NG NG Pass
LITE-ON L8T-128L6G-HP SSD SATA key B / M 2280 NG NG Pass

Brand Function Interface Size M2P4A M2P4S M2PS   Note
Key M Key M Key B
M2P4A / M2P4S (M.2 Key M)
Designed for PCIE x4 based M.2 (NGFF) SSD module

 M2PS (M.2 Key B)
Designed for SATA based M.2 (NGFF) SSD module




Brief Taiwan 1 Taiwan 2 China
Dimension Taiwan 1 Taiwan 2 China
3D Model Taiwan 1 Taiwan 2 China
Schematic Taiwan 1 Taiwan 2 China
Compatibility List Taiwan 1 Taiwan 2 China
SSD Adapter Selection Guide Taiwan 1 Taiwan 2 China
