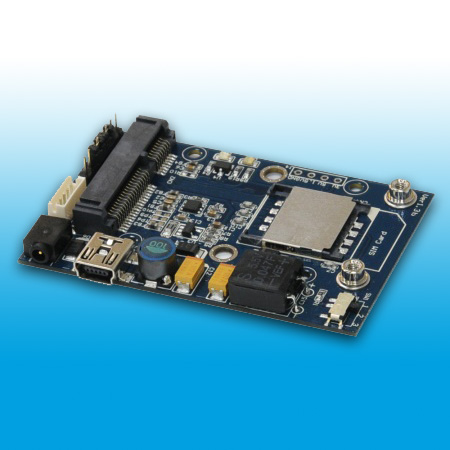

USBMI module v1.3
  • USBMI Introduction:
  • The USBMI adapter is designed for desktop PCs that convert Mini-Card to USB port.
  • You can insert your USB type minicard such as HSPA(3.5G), GPS, 802.11a/b/g to this adapter then plug to USB port through USB cable.
  • Standard SIM card connector is provided.
manufacture:Bplus

  Function

  • USB mini type-B connection to desktop or notebook PC.
  • Support system bus interface: USB.
  • Supports USB interface of Mini-Cards such as 3G,CDMA, WLAN,WWLAN, HSPA MODEM , GPS, WiMAX Mini Card to desktop PC..
  • Support SIM card connector.
  • Support U.FL/IPX to RP-SMA pigtail Wifi RF cable adapter.

  Specification



    • PCI Express Mini Card to USB adapter.
    • PCI Express Mini Card Electromechanical Specification Revision 1.2
    • Universal Serial Bus Specification Revision 2.0
    • Full / Half -Mini Card dimension.
    • SIM Connector for CDMA HSDPA/HSUPA, UMTS, GSM, GPRS, EDGE
    • Access LED.(USBMA)
    • Operating Temperature Range : - 40℃ to +85℃
    • Operating Humidity Range : 5% to 95% RH
    • Compliant with Waterproof IP-66 (USBMI-WP)








USBMI V1.3b Brief Taiwan 1 Taiwan 2 China
USBMI-WP V1.3b Brief Taiwan 1 Taiwan 2 China
USBMI Dimension V1.3b Taiwan 1 Taiwan 2 China
USBMI
Schematic
V1.3b		 Taiwan 1 Taiwan 2 China
USBMx Selection Guide Taiwan 1 Taiwan 2 China
