PC Components/SSD/Storage adapter

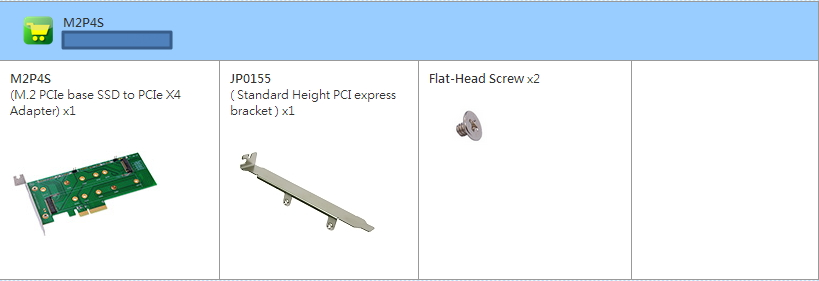

M2P4S
  • M.2 stands for Next Generation Form Factor which is invented for PCI-SIG by Intel and it is developed for flat and high-efficiency equipment such as Ultrabook? or Tablet PCs. It is a natural transition from the Mini Card and Half Mini Card to a smaller form factor in both size and volume which supports multiple function add-in cards/modules including: Wi-Fi, Bluetooth, global navigation satellite systems, near field communication, Hybrid digital radio, wireless gigabit alliance (WiGig), wireless wide area network and solid-state storage devices. Also adds functionality to USB 3.0, display Port, SDIO and SSD-PCIe

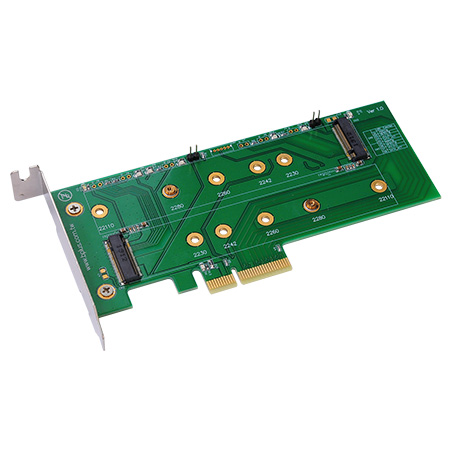

  • M2P4S adapter enables PCIe base M.2(NGFF) SSD as a HDD Card for desktop PC.

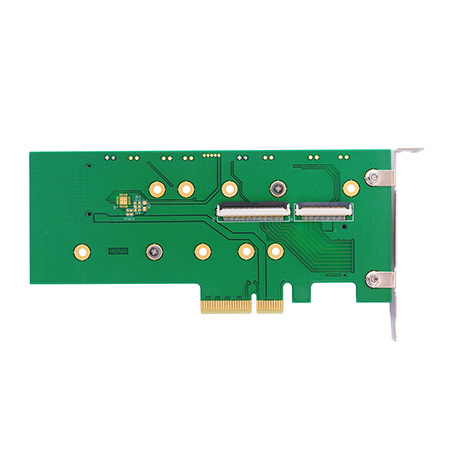

  • M2P4S design two slot for M.2(NGFF) SSD:

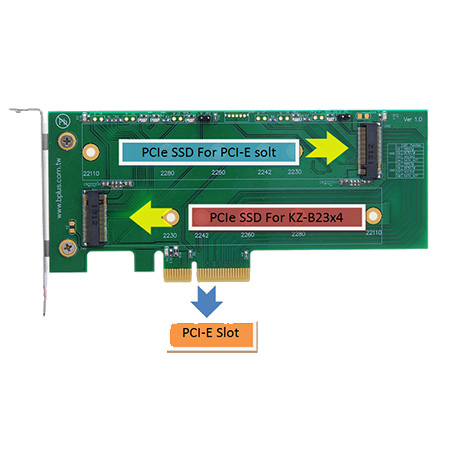

  • One slot use for PCIe x4 slot for desktop PC directly.

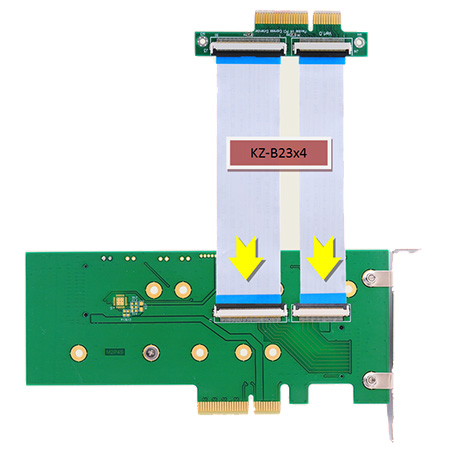

  • Another slot can though FFC (Flat Flexible Cable) cable for flexible use(with KZ-B23x4).
manufacture:Bplus

Function

  • Allows user to use standard PCIE base M.2 SSD to PCIe x4 in the Desktop or Laptop.
  • Design the FFC (Flat Flexible Cable) cable for flexible use.
  • Transparent to the operating system and does
  • not require any software drivers.
  • Can’t support system boot.

Specifications

  • M.2 SSD to PCIe X4 adapter.
  • M.2 Specification Revision 0.9
  • Serial ATA Spec. Reversion 3.2
  • Support 2230 / 2242 / 2260 / 2280 / 22110 type M.2 Card dimension.
  • Support M.2 Socket 3 PCI-e-based SSD Module.
  • Support M.2 Key M Card Type.

M.2 SSD to PCI-E from factor Adapter Compatibility List

 2013Dec13
Gerry Chen
Brand / Model Function Interface Size M2P4A M2P4S M2PS   Note
Samsung XP941
MZHPU128HCGM-00000		 SSD PCIe key M 2280 Pass Pass NG
Samsung XP941
MZHPU256HCGL-00000		 SSD PCIe key M 2280 Pass Pass NG
Samsung XP941
MZHPU512HCGL-00000		 SSD PCIe key M 2280 Pass Pass NG
Samsung M.2 128G
MZ-NPD1280		 SSD SATA key B / M 2280 NG NG Pass
Samsung M.2 128G
MZNTD128HAGM		 SSD SATA key B / M 2280 NG NG Pass
BPLUS M2EM SSD SATA key B / M 2242 NG NG Pass
ADATA AXNS341N-64GM-B SSD SATA key B / M 2242 NG NG Pass
Sandisk X110 SSD SATA key B / M 2242 NG NG Pass
Samsung MZNTD128HAGM SSD SATA key B / M 2280 NG NG Pass
Intel
SSD Pro 1500 Series		 SSD SATA key B / M 2280
2242		 NG NG Pass
Intel
SSD 530 Series		 SSD SATA key B / M 2280 NG NG Pass
Tohsiba THNSNHGDNT SSD SATA key B / M 2280 NG NG Pass
LITE-ON L8T-128L6G-HP SSD SATA key B / M 2280 NG NG Pass

Brand Function Interface Size M2P4A M2P4S M2PS   Note
Key M Key M Key B
M2P4A / M2P4S (M.2 Key M)
Designed for PCIE x4 based M.2 (NGFF) SSD module

 M2PS (M.2 Key B)
Designed for SATA based M.2 (NGFF) SSD module




Brief Taiwan 1 Taiwan 2 China
Dimension Taiwan 1 Taiwan 2 China
Schematic Taiwan 1 Taiwan 2 China
3D Model Taiwan 1 Taiwan 2 China
Compatibility List Taiwan 1 Taiwan 2 China
SSD Adapter Selection Guide Taiwan 1 Taiwan 2 China


TSR AWH M2P4A
LSA and 110 IDC PE4L -HP060A v2.1 M2P2H-RPSMA
P26S-P26F Y02-U3-003 Universal Shelf
