PE4C -EC3C v1.2

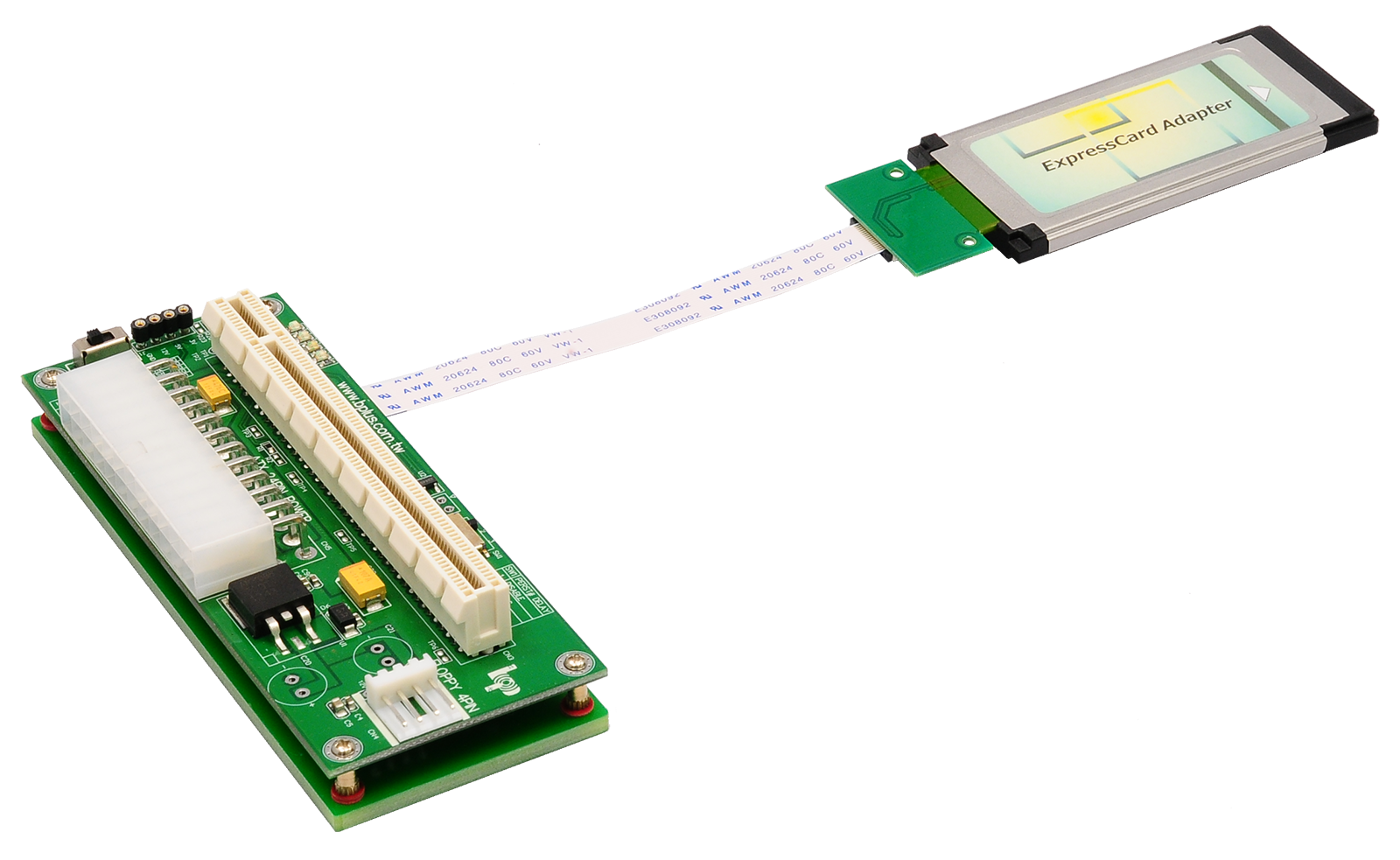

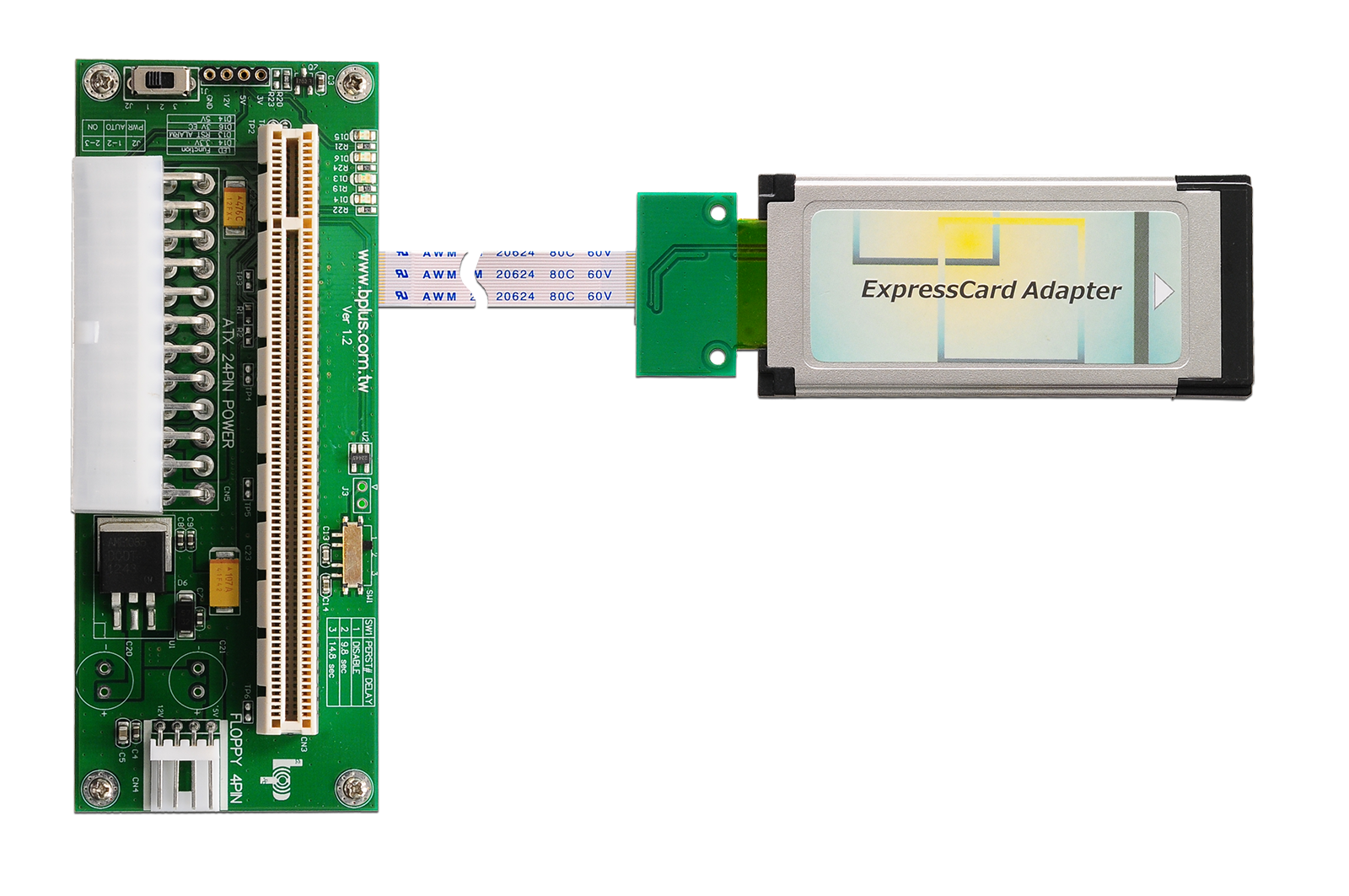

The PE4C v1.2 is designed for Notebook PCs that converts PCI Express 16X Add-on Card to ExCard or

mPCIe connecter.

This adapter allows you to use your existing PCI-E 16X Card in the notebook PC for test

manufacture:Bplus

VGA card connection to computer or notebook PC
Support two delay switch to avoid registration problems when boot.
Support ATX power boot together function.
Oprion Products :

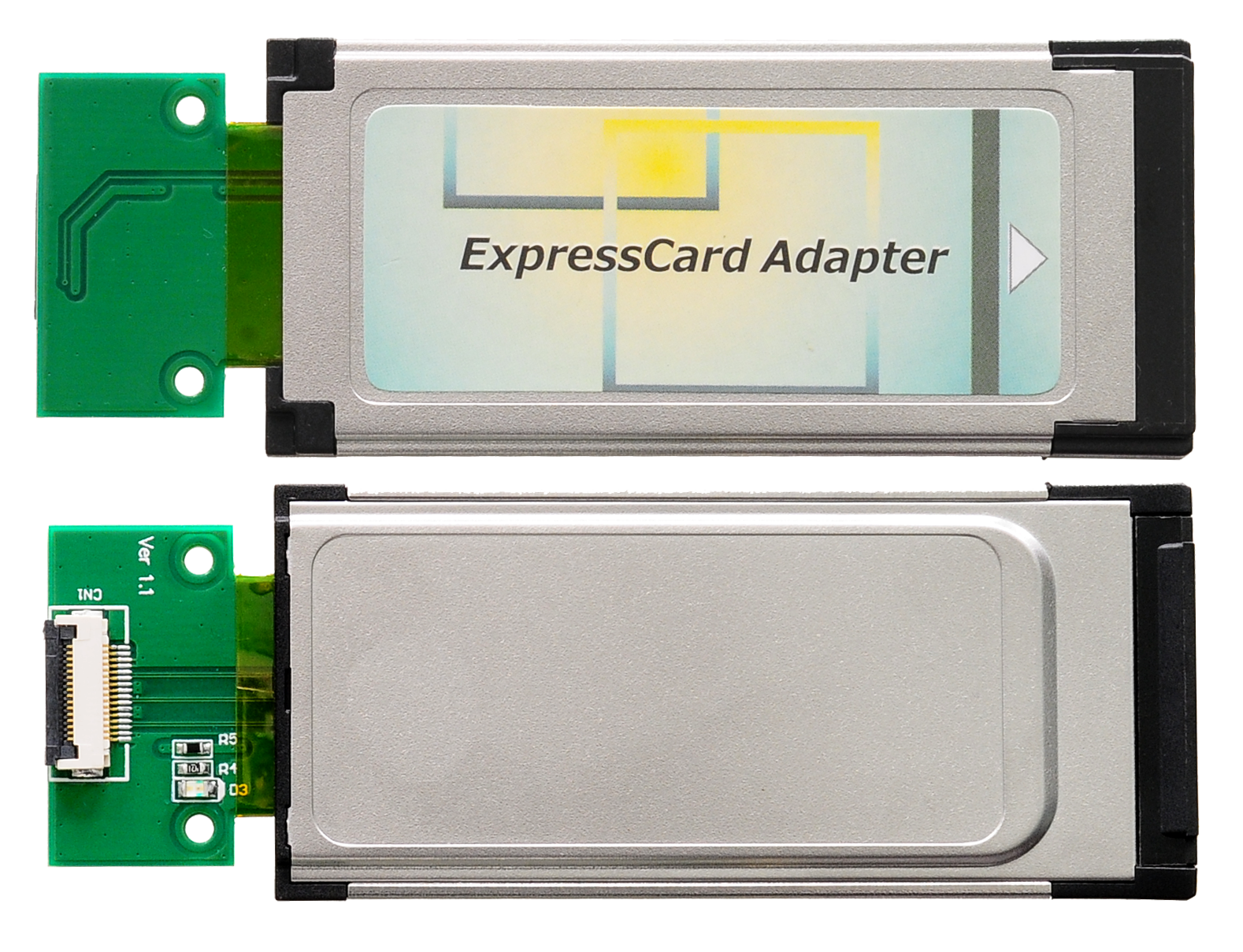

(Option) EC3C – Express card adapter
(Option) PM3E – mPCI-e adapter
(Option) HP3A – PCI-e adapter

Specification

PE4C-PM3E V1.2 allows user to test PCI Express x16 Add-in-Card on the PCI Express mini card (mPCIe) slot.
PE4C-EC3C V1.2 allows user to test PCI Express x16 Add-in-Card on the ExpressCard slot
Compliant with PCI Express 2.0 Specification: Maximum 5Gbps
Compliant with USB2.0 Specification: Maximum 480Mbps
Power Supply: ATX PSU, directly connect to 24pin connector.

System Requirements

Windows XP/Vista/7/8/8.1/Server 2008, Linux, Mac iOs

Dimension & Weight

11cm X 4.5cm X 1.5cm ; 23.5g

Certifiction

RoHS

Operating Temperature

0 ~ 70℃

Notice

PE4C V1.2 is PCIe 1-Lane 5.0Gbps bandwidth limit passive adapter in compliance with Expresscard 2.0 specification
Basically, PCIe add-on card designed for desktop. We can’t guarantee it compatibility with your laptop. Depends on OS version, notebook’s BIOS, device driver,
Almost PCIe 16x video card can’t get enough memory resource are allocated. Can’t work in your laptop.
External Power ATX Power required.
All of interoperability is not guaranteed.
