PC Components/USB2.0/3.0 Extender

U3EX

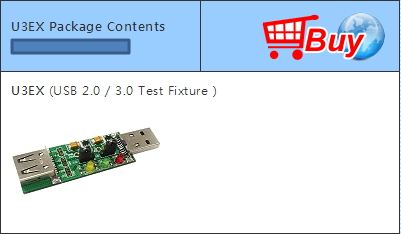

(USB 2.0 / 3.0 Test Fixture )

manufacture:Bplus

The USB Fixture is a test tool for USB 2.0 / 3.0 interface with multi-functions of voltage swtich, voltage test and current test.
It's especially designed to save valuable labor and time in the production environment. The USB Fixture is constructed of high quality components for years of trouble free service.

Function

Test connector for all of signal and power pins
LED indicates power status
Over-current protection with power switch IC
Alternative Output Voltage: 5v to 5v/3.3v
Voltage can be tested conveniently and directly
Current can be tested conveniently and directly
External power supply support

Dimension : Width: 65mm Length:18mm PCB Thickness :1.6mm

Different switch and jumper can perform different function.

Documents Download
Brief (PDF):	Taiwan	Taiwan 2 Mirror	China Mirror
Dimension: (PDF):	Taiwan	Taiwan 2 Mirror	China Mirror
Schematic (PDF):	Taiwan	Taiwan 2 Mirror	China Mirror
User manual(PDF):	Taiwan	Taiwan 2 Mirror	China Mirror
