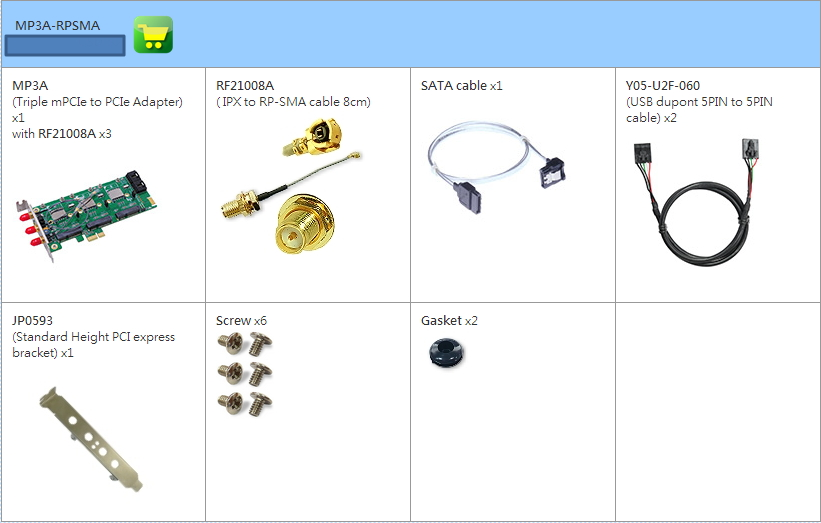

MP3A-RPSMA

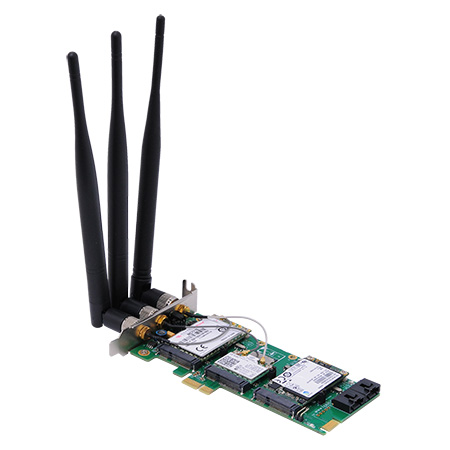

The Triple PCI-E Mini Card passive adapter is designed for all mPCIe Card application (PCIe/USB/mSATA) on desktop PCs.

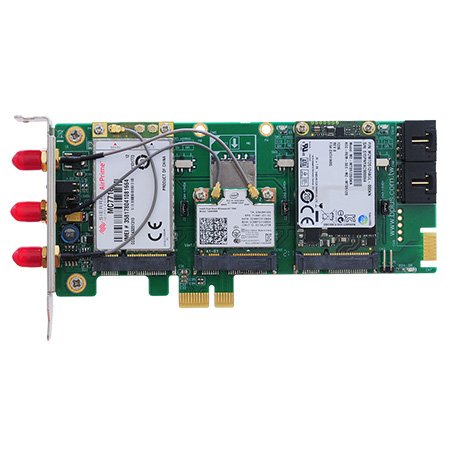

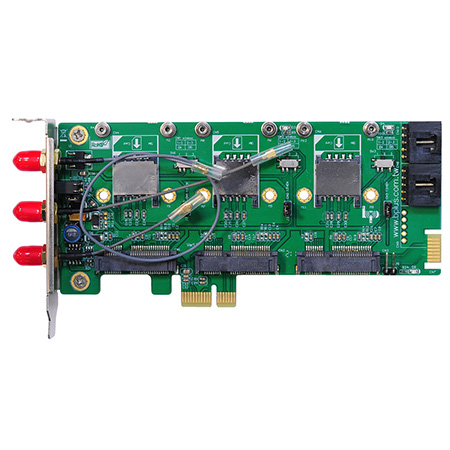

left MiniCard slot support USB type MiniCard, you can insert your USB type MiniCard to this slot then plug to USB 5pin header port through USB cable.

Middle MiniCard slot support both PCI-E and USB type MiniCard, you can insert your USB type minicard to this slot then plug to USB 5pin header port through USB cable.

manufacture:Bplus

First Impression

The Triple PCI-E Mini Card passive adapter is designed for all mPCIe Card application (PCIe/USB/mSATA) on desktop PCs.
left MiniCard slot support USB type MiniCard, you can insert your USB type MiniCard to this slot then plug to USB 5pin header port through USB cable.
Middle MiniCard slot support both PCI-E and USB type MiniCard, you can insert your USB type minicard to this slot then plug to USB 5pin header port through USB cable.
Or insert your PCI-E type mini-card into this adapter then insert to PCI-E 1x connector.
Also, you can insert WiFi & Bluetooth Combo card such as Intel® Centrino® Advanced-N 6235 can be used for supporting both WiFi by PCIe and Bluetooth by USB at the same time.
Right MiniCard slot support both mSATA and USB type(option) MiniCard, you can insert your mSATA SSD card to this slot then plug to SATA 7pin header port through SATA cable.
Or insert your USB type MiniCard, then plug to USB 5pin header port through USB cable. (Option)

Specification

PCI Express Mini Card (Full/half ) to PCI Express adapter
Low Profile Height PCI Express1x Add-in Card – Standard Height by bundled JP0593 bracket
Supports USB interface of Mini-Cards such as 3G,CDMA, WWAN, HSPA, GPS, WiMAX, Bluetooth Mini Card to desktop PC.
Support PCIe MiniCard :IEEE WLAN802.11a/b/g/n, 802.11d, 802.11e, 802.11i, 802.11h, 802.11ac
Support mSATA SSD MiniCard.
Low Profile PCI Express Add-in Card – max 3 ANTs for Low profile, max 4 ANTs for Standard Height
POWER LED on Bracket; lift MiniCard access LED on Bracket; Middle MiniCard access LED on the board; Right MiniCard access LED on the board.
U.FL/IPX to SMA / RP-SMA pigtail WiFi RF cable adapter
3G / WiMAX antenna: SMA connector , WiFi antenna : RP-SMA connector
MP3A: Transparent to operating systems and does not require any software drivers

Notice

No driver CD accompanied.
Make sure you download and install the proper driver before you install the adapter.
