PC Components/ WiFi,LTE Adapter

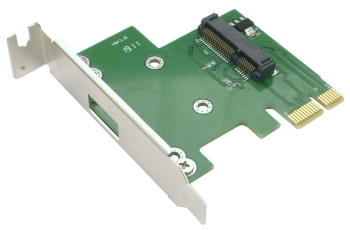

ADP

(Mini PCI-E / PCI-E adapter)

manufacture:Bplus

Introduction:
The PCI-E Mini Card passive adapter is designed for desktop PCs that convert Mini-Card to standard PCI-Express 1x slot.
You can insert your PCI-E type mini-card into this adapter then insert to PCI-E 1x connector.

Specification:

PCI Express Mini Card Electromechanical Specification Revision 1.2
PCI Express Card Electromechanical Specification 2.0
Standard Height PCI Express Add-in Card.
Low Profile PCI Express Add-in Card.
Full/ Half -Mini Card dimension.
Supports all of Mini-Cards such as SSD( PCIe interface), Video Decoder, Turbo memory... Mini Card to desktop PC.

Notice:
*ADP support standard mPCIe minicard. Can't support custom SATA/PATA SSD minicard.
*ADP is designed for engineering test tool not for end user using.

System Requirements:

desktop PC with an available PCIe slot.
Windows 7 (32-/64-bit) Vista (32-/64-bit)
At least one Serial ATA hard drive
One of the following:
*Intel® ICH10R Serial ATA RAID/AHCI Controller and 4 GB or 2 GB of Intel® NAND Flash Memory.
*intel® CH9R Serial ATA RAID/AHCI Controller and 1 GB or 512 MB of Intel® NAND Flash Memory.

Documents Download
Brief	Taiwan	Taiwan 2	China Mirror
Dimension	Taiwan	Taiwan 2	China Mirror
Schematic	Taiwan	Taiwan 2	China Mirror
