MP2H

MP2H :

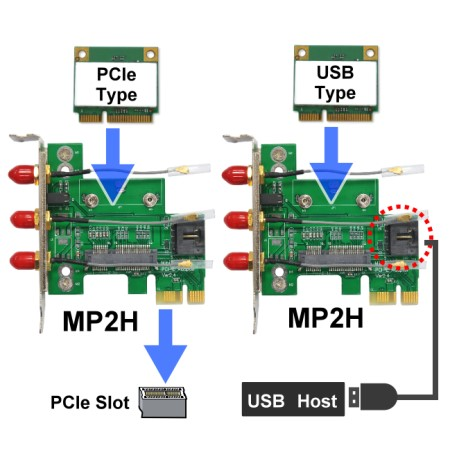

The PCI-E Mini Card passive adapter is designed for wireless application on desktop PCs that convert half-size MiniCard to USB 5pin Header or standard PCI-Express 1x slot. You can insert your USB type minicard to this adapter then plug to USB 5pin header port through USB cable. Or insert your PCI-E type mini-card into this adapter then insert to PCI-E 1x connector. Also, WiFi& Bluetooth Combo card such as IntelR Dual Band Wireless-AC 7260 can be used for supporting both WiFi by PCIe and Bluetooth by USB at the same time.

manufacture:Bplus

MP2H :
The PCI-E Mini Card passive adapter is designed for wireless application on desktop PCs that convert half-size MiniCard to USB 5pin Header or standard PCI-Express 1x slot. You can insert your USB type minicard to this adapter then plug to USB 5pin header port through USB cable. Or insert your PCI-E type mini-card into this adapter then insert to PCI-E 1x connector. Also, WiFi& Bluetooth Combo card such as Intel® Dual Band Wireless-AC 7260 can be used for supporting both WiFi by PCIe and Bluetooth by USB at the same time.

MP2H Specification

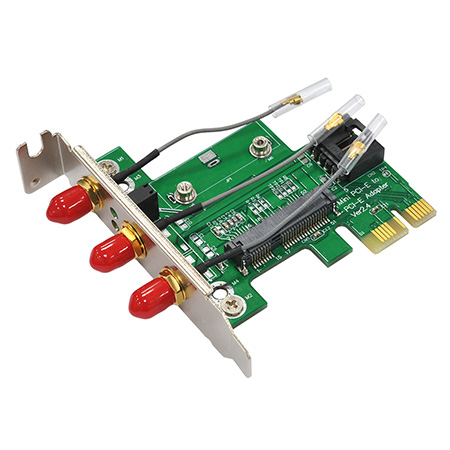

PCI Express Mini Card (half ) to PCI Express adapter

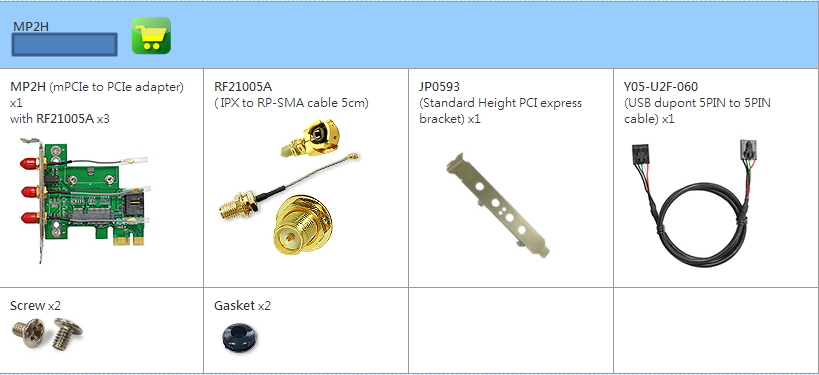

Low Profile Height PCI Express1x Add-in Card– Standard Height by bundled JP0593 bracket
Supports system bus interface: PCIe&USB2.0
Supports USB interface of Mini-Cards such as 3G,CDMA, WWAN, HSPA, GPS, WiMAX, Bluetooth Mini Card to desktop PC. (Please use MP2H-S for SIM card slot)
Support PCIeMiniCard :IEEE WLAN802.11a/b/g/n, 802.11d, 802.11e, 802.11i, 802.11h, 802.11ac
Low Profile PCI Express Add-in Card– max 3 ANTs for Low profile, max 4 ANTs for Standard Height
Wireless access LED, POWER LED
Wireless access LED, POWER LED
U.FL/IPX to SMA / RP-SMA pigtail WiFi RF cable adapter
3G / WiMAX antenna: SMA connector ,
WiFi antenna : RP-SMA connector
CE/FCC certifications
Operating Systems: Microsoft Windows 7, Microsoft Windows 8, Linux
0°C to +80°C
MP2H: Transparent to operating systems and does not require any software drivers

MP2H Brief	Taiwan 1	Taiwan 2	China
Dimension V2.3	Taiwan 1	Taiwan 2	China
Schematic	Taiwan 1	Taiwan 2	China
MP2H-7260 User Manual	Taiwan 1	Taiwan 2	China
PCIE WiFiCardsSelection Guide	Taiwan 1	Taiwan 2	China
