PC Components/intel WiFi Card

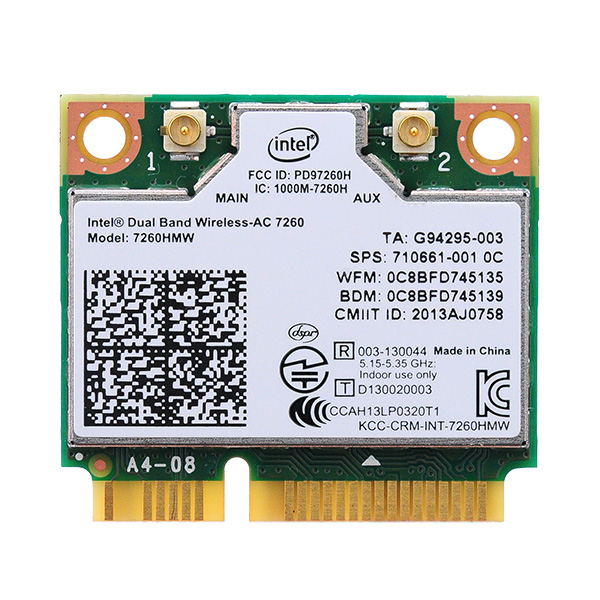

7260HMW

IntelR Dual Band Wireless-AC 7260

mPCIe Version

manufacture:Bplus

Intel® Dual Band Wireless-AC 7260
802.11ac, Dual Band, 2x2 Wi-Fi + Bluetooth 4.0*

Ultra Wi-Fi. Ultra Features. Ultra Connected Experience
The Intel® Dual Band Wireless-AC 7260 802.11ac, dual band, 2x2 Wi-Fi + Bluetooth* adapter lets you move at the speed of life with faster speeds (up to 867 Mbps¹), higher capacity, broader coverage and longer battery life. Combined with 4th Gen Intel ® Core™ processors and exceptional Intel wireless innovations, the Intel® Dual Band Wireless-AC 7260 dramatically reshapes your connected experience at home, work or on the go.

Product NameIntel® D

Intel® Dual Band Wireless-AC 7260 Technical Specifications
More Speed Better Coverage Larger Capacity 802.11ac, Dual Band, 80MHz, 2x2	Delivers dramatically faster Wi-Fi speeds (up to 867 Mbps) than 802.11n, with more bandwidth per stream 433 Mbps), more capacity for more users (extended channel bonding 80MHz), broader coverage and better battery life (more data transmit efficiencies reduce power consumption).
Bluetooth 4.0* Smart Ready (Low Energy)	Dual mode Bluetooth 4.0* connects to the newest low energy Bluetooth* products as well as your familiar devices, such as headsets, keyboard, mice and more.
Intel® Power Optimizer	Optimized power mode during periods of inactivity saves battery life for greater mobility and convenience.
Operating Temperature (Adapter Shield)	0º to +80° C
Humidity Non-Operating	50% to 90% RH non-condensing (at temperatures of 25°C to 35°C)
Operating Systems	Microsoft Windows 7, Microsoft Windows 8, Linux* (most features not available on Linux)
Wi-Fi Alliance	Wi-Fi CERTIFIED* for 802.11ac, Wi-Fi CERTIFIED* a/b/g, Wi-Fi CERTIFIED* n, WMM, WPA, WPA2, and WPS, WPS 2.0, Protected Management Frames, Wi-Fi Direct for peer to peer device connections
IEEE WLAN Standard	IEEE 802.11abgn, 802.11ac, 802.11d, 802.11e, 802.11i, 802.11h, 802.11w
Architecture	Infrastructure and SoftAP; Supports simultaneous Client and SoftAP modes
Roaming	Supports seamless roaming between respective access points (802.11b, 802.11g, 802.11a/b/g, 802.11a/b/g/n, and 802.11ac)
Bluetooth	Dual Mode Bluetooth* 2.1, 2.1+EDR, 3.0, 3.0+HS, 4.0 (BLE)
Authentication	WPA and WPA2, 802.1X (EAP-TLS, TTLS, PEAP, LEAP, EAP-FAST), EAP-SIM, EAP-AKA
Authentication Protocols	PAP, CHAP, TLS, GTC, MS-CHAP*, MS-CHAPv2
Encryption	64-bit and 128-bit WEP, AES-CCMP, TKIP
Wi-Fi Direct* Encryption and Authentication	WPA2, AES-CCMP
Product Safety	UL, C-UL, CB (IEC 60950-1)
Management Frame Protection	802.11w (WFA- Protected Management Frames)

Intel® Dual Band Wireless-AC 7260 brief download
DRIVER download (http://downloadcenter.intel.com)
