PC Components/ WiFi,LTE Adapter

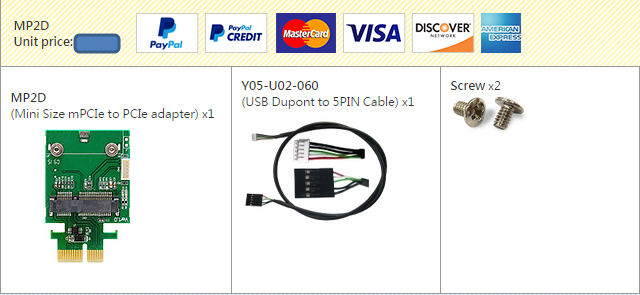

MP2D
  • Mini Size mPCIe to PCIe adapter
manufacture:Bplus

    First Impression

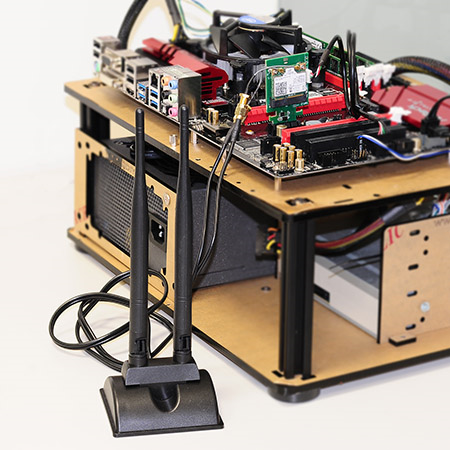

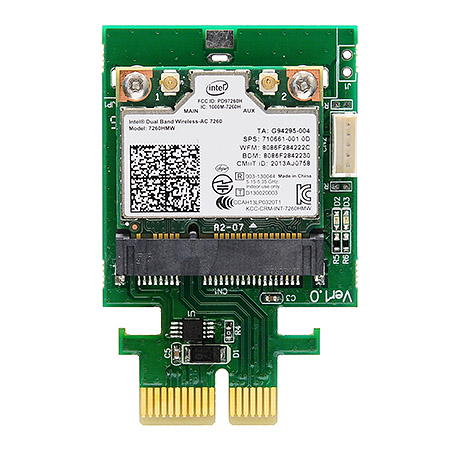

First Impression The PCI-E Mini Card passive adapter is designed for wireless application on desktop PCs that convert half-size MiniCard to USB dupont 5pin or standard PCI-Express 1x slot. You can insert your USB type minicard to this adapter then plug to USB 5pin header port through USB cable. Or insert your PCI-E type mini-card into this adapter then insert to PCI-E 1x connector. Also, WiFi& Bluetooth Combo card such as Intel® Dual Band Wireless-AC 7260 can be used for supporting both WiFi by PCIe and Bluetooth by USB at the same time.



   Notice


  • No driver CD accompanied.
    *Make sure you download and install the Wifi module’s driver
  • before you install the adapter.

 Features


  • Case Dimension: 60 x 38 x 8 mm (L x W x H)
  • Weight: 9.8g
  • Operating temperature: 0º to +80° C
  • PCI Express Mini Card (half ) to PCI Express adapter
  • Supports system bus interface: PCIe&USB2.0
  • Supports USB interface of Mini-Cards such as 3G,CDMA, WWAN, HSPA, GPS, WiMAX, Bluetooth Mini
  • Card to desktop PC. (Please use MP2D-S for SIM card slot)
  • Support PCIe MiniCard :IEEE WLAN802.11a/b/g/n, 802.11d, 802.11e, 802.11i, 802.11h, 802.11ac
  • Wireless access LED, POWER LED
  • U.FL/IPX to SMA / RP-SMA pigtail WiFi RF cable adapter
  • 3G / WiMAX antenna: SMA connector , WiFi antenna : RP-SMA connector
  • MP2D: Transparent to operating systems and does not require any software drivers
