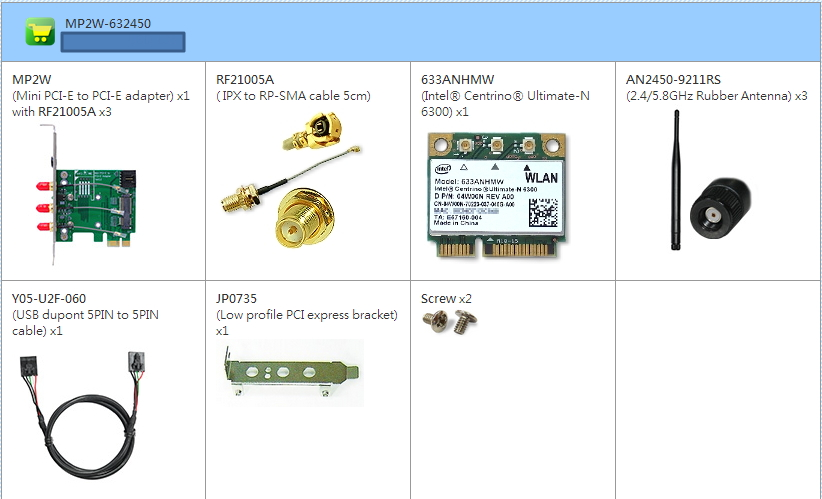

MP2W-632450

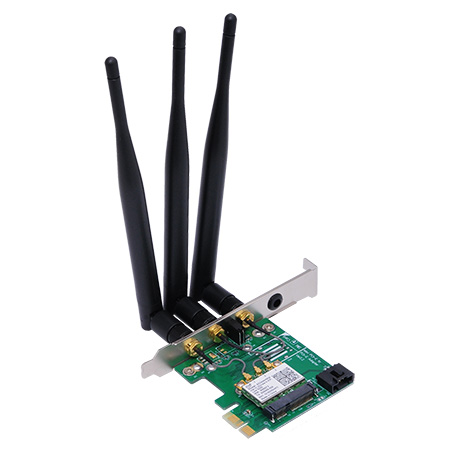

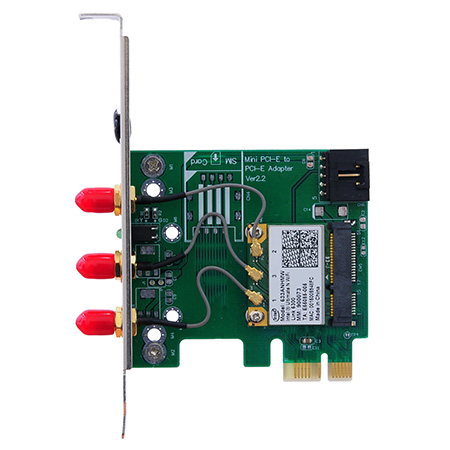

MP2W-632450:

The MP2W-632450 is PCIe 1x add-in card adapter with IntelR CentrinoR Ultimate-N 6300. Family of IEEE 802.11a/b/g/n wireless network adapters for your PCI Express-enabled desktop computer. Operate in both the 2.4 GHz and 5.0 GHz spectra. These adapters, available in PCIe* Mini Card form factor deliver up to 450 Mbps of bandwidth via features such as MIMO technology, Up to 2X greater range, and Packet Aggregation.

manufacture:Bplus

MP2W-632450 Specification

PCI Express Mini Card to PCI Express adapter.
Standard Height PCI Express1x Add-in Card
Low Profile PCI Express Add-in Card.
Wireless access LED, POWER LED
Duel 2.4G 2dBi and 5.8G 5dBi rubber duck antenna
U.FL/IPX to RP-SMA pigtail WiFi RF cable adapter
IEEE WLAN Standard 802.11a/b/g/n, 802.11d, 802.11e, 802.11i, 802.11h
Up to 450 Mbps of bandwidth
CE/FCC certifications
Intel Centrino® Ultimate-N 6300 brief download
DRIVER download(http://downloadcenter.intel.com)
Operating Systems: Microsoft Windows XP 32/64-bit, Microsoft Windows Vista 32/64-bit, Microsoft Windows 7 32/64-bit, Ubuntu Linux

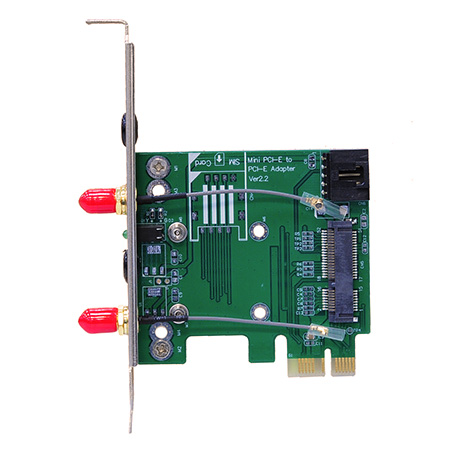

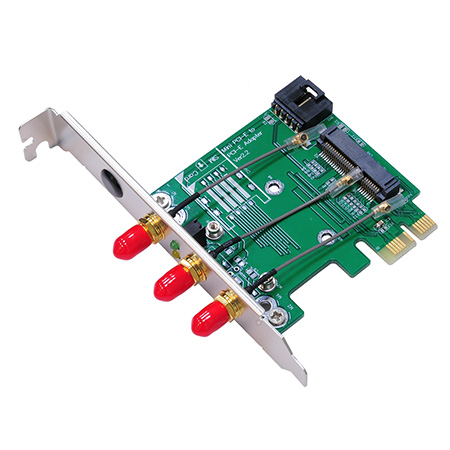

MP2W

MP2W-S

MP2W Specification

PCI Express Mini Card to PCI Express/USB adapter.
PCI Express Mini Card Electromechanical Specification Revision 1.0
PCI Express Card Electromechanical Specification 1.1
Universal Serial Bus Specification Revision 2.0.
Standard Height PCI Express Add-in Card
Low Profile PCI Express Add-in Card.
Full / Half -Mini Card dimension.
Wireless access LED, POWER LED

Notice

There are existing mPCIe 'form factor' SSD's that present SATA and PATA interface, but none that use the standard mPCIepinout (i.e. mPCIe tx/rx pins). ...
MP2W support standard mPCIe minicard. Can’t support custom SATA/PATA SSD minicard.

MP2W Brief V2.2	Taiwan 1	Taiwan 2 Mirror	China Mirror
MP2W-S Brief V2.3	Taiwan 1	Taiwan 2 Mirror	China Mirror
Dimension V2.13	Taiwan 1	Taiwan 2	China
MP2W Schematic	Taiwan 1	Taiwan 2	China
MP2W-S Schematic	Taiwan 1	Taiwan 2	China
User manual	Taiwan 1	Taiwan 2	China
PCIE WiFiCardsSelection Guide	Taiwan 1	Taiwan 2	China
