PC Components/3G/4G mPCIe adapter

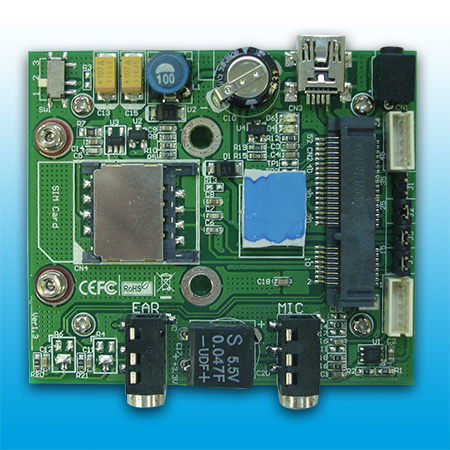

USBMV-D-SMA module v1.3

USBMV Series Introduction:

The adapter is designed for desktop PCs that convert Mini-Card to USB port.

You can insert your USB type minicard such as HSPA(3.5G), GPS, 802.11a/b/g to this adapter then plug to USB port through USB cable.

Standard SIM card connector is provided.

manufacture:Bplus

Features

USB mini type-B connection to desktop or notebook PC.
Supports system bus interface: USB.
Supports USB interface of Mini-Cards such as 3G,CDMA, WLAN,WWLAN, HSPA MODEM , GPS, WiMAX Mini Card to desktop PC.
Support Voice function. Add MIC and EAR connector.
Support SIM card connector.
Support U.FL/IPX to RP-SMA or SMA pigtail Wifi RF cable adapter.

Specification

- PCI Express Mini Card to USB adapter.
- PCI Express Mini Card Electromechanical Specification Revision 1.2
- Universal Serial Bus Specification Revision 2.0
- Full / Half -Mini Card dimension.
- SIM Connector for CDMA HSDPA/HSUPA, UMTS, GSM, GPRS, EDGE
- 3.3V DC jack input selection. (USBMV-D)
- Access LED (USBMV)

USBMV-D Brief	Taiwan 1	Taiwan 2	China
USBMV-D Dimension	Taiwan 1	Taiwan 2	China
USBMV Brief	Taiwan 1	Taiwan 2	China
USBMV Series Schematic	Taiwan 1	Taiwan 2	China
User manual	Taiwan 1	Taiwan 2	China
USBMx Selection Guide	Taiwan 1	Taiwan 2	China
