PC Components/SSD/Storage adapter

SSDMC

Introduction:

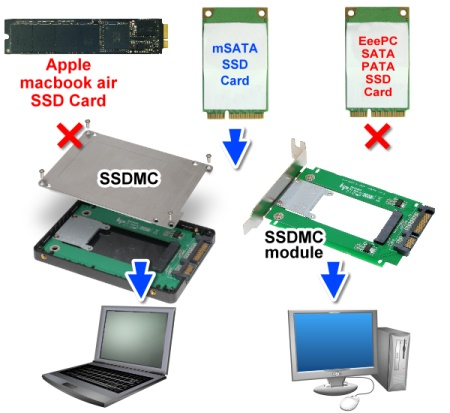

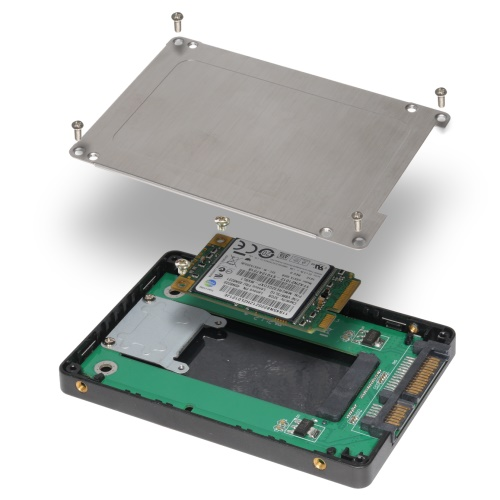

SSDMC adapter enables using of mini-SATA SSD as a direct replacement for the 2.5” HDD in the notebook. Once installed, the mSATA SSD behaves like the 2.5”HDD with low power consumption, fast access time and completely shock resistant

manufacture:Bplus

Function

Allows user to use standard SATA-IO mSATA SSD to SATA hard drive in the Desktop or Laptop
Support Hi-Speed SATA3 / 6Gbps mass storage interface.
Transparent to the operating system and does not require any software drivers

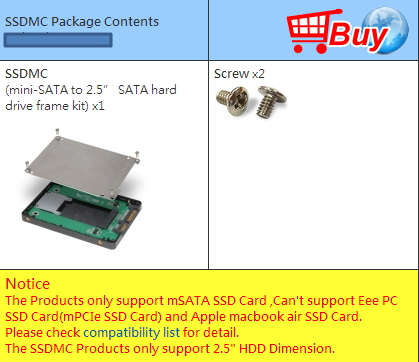

Notice

The Products only support mSATA SSD Card ,Can't support Eee PC SSD Card(mPCIe SSD Card) and Apple macbook air SSD Card.
Please check compatibility list for detail.
The SSDMC Products only support 2.5" HDD Dimension.

Transmission performance test reportMainboard Model: Gigabyte GA-Z77MZ-D3H TH System : win7 32 bit
CPU: intel(R) Core (TM)i5- 3570K @ 3.4GHz / 3.8GHz
RAM : 8GB Graphic Card: Intel HD Graphic 2500
mSATA SSD: ADATA XPG SX300 ASX300S3-128GM-C 128GB

MP2S, SSDMA, SSDMB,SSDMC,SSDMC-U for SSD minicard comparison 2011/Apr/21
Functions comparison	MP2S ver 1.0b	SSDMA	SSDMB	SSDMC	SSDMC-U
Interface	PATA / SATA	USB2.0	USB3.0	SATA	SATA
EeePC PATA SSD minicard support	Yes	Yes	No	No	No
EeePC SATA SSD minicard support	Yes	Yes	No	No	No
mini-SATA SSD minicard support	No	No	Yes	Yes	Yes
Access LED	Yes	Yes	Yes	No	No
Appearance	Add-on card	Enclosure	Enclosure	2.5”HDD Add-on card	2.5”HDD Add-on card Mini USB2.0 connector
MiniCard dimension support	Full/Custom	Full	Full	Full	Full
Notice: Almost mini-SATA SSD haven’t USB interface. Please check your mini-SATA SSD is supported for USB interface. Otherwise SSDMC-U USB function should invalid. The SSDMC / SSDMC-U Products only support 2.5" HDD Dimension.

Documents Download
SSDMC V1.3 Brief	Taiwan	Taiwan 2 Mirror	China Mirror
SSDMC V1.0 Brief	Taiwan	Taiwan 2 Mirror	China Mirror
Dimension	Taiwan	Taiwan 2 Mirror	China Mirror
Schematic	Taiwan	Taiwan 2 Mirror	China Mirror
Compatibility List	Taiwan 1	Taiwan 2 Mirror	China Mirror
Comparison List	Taiwan 1	Taiwan 2 Mirror	China Mirror
