PC Components/ WiFi,LTE Adapter

MP2H-7260

MP2H-7260:

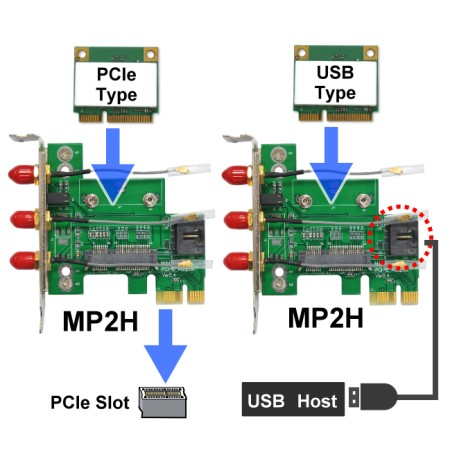

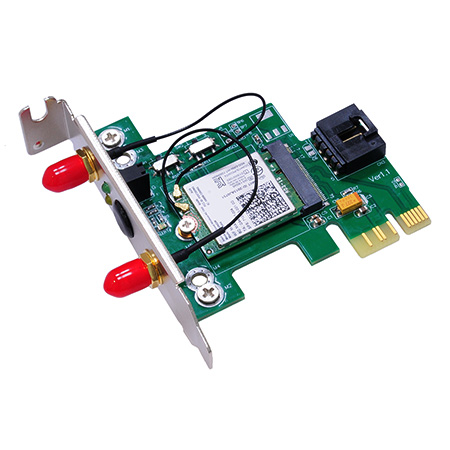

The MP2H-7260 is PCIe 1x add-in card adapter with Intel-7260supporting Bluetooth4.0+HS and a 2x2 IEEE 802.11a/b/g/n/ac Wi-Fi up to 867 Mbps greater range and more consistent connectivity.

The wireless network adapter can realize for your PCI Express-enabled desktop computer.

MP2H-7260 also supports a host of features, such as Wireless Display, to enhance mobile lifestyle.

manufacture:Bplus

MP2H-7260:
The MP2H-7260 is PCIe 1x add-in card adapter with Intel-7260supporting Bluetooth4.0+HS and a 2x2 IEEE 802.11a/b/g/n/ac Wi-Fi up to 867 Mbpsgreater range and more consistent connectivity.
The wireless network adapter can realize for your PCI Express-enabled desktop computer.
MP2H-7260 also supports a host of features, such as Wireless Display, to enhance mobile lifestyle.

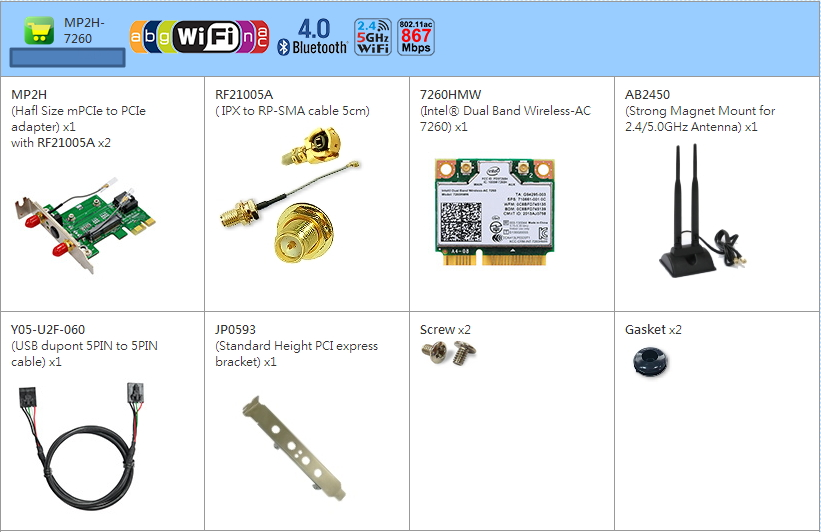

MP2H-7260

80 MHz wide bandwidth that is 2x wider than current 802.11n solutions
Dual-band operation compatible with legacy 802.11n networks.
256-QAM, a higher modulation scheme that increases data transfer efficiency.
802.11ac-compliant transmit and receive beamforming for extended coverage for 802.11ac and legacy devices
Low Density Parity Check (LDPC) Codes for increased rate at range
PCI Express® 2.0 host interface
Enhanced Bluetooth® coexistence interface support for seamless BT + 5G WiFi operation

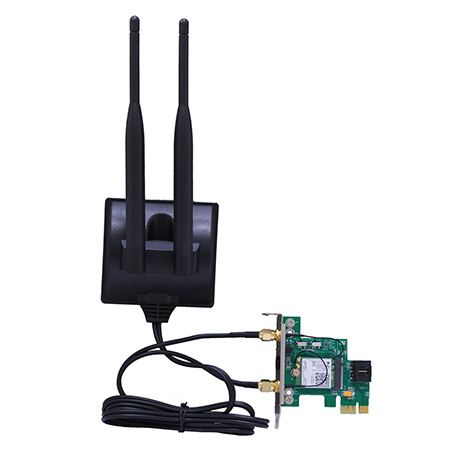

Dual 2.4/5.0 GHz rubber duck antennas with magnet mount
U.FL/IPX to RP-SMA pigtail WiFi RF cable adapters
IEEE WLAN Standard 802.11a/b/g/n/ac 802.11d/e/i/h
Up to 867 Mbps of bandwidth
Dual Mode Bluetooth: 2.1, 2.1+EDR, 3.0, 3.0+HS, 4.0(BLE)
CE/FCC certifications
Intel® Dual Band Wireless-AC 7260 brief download
DRIVER download(http://downloadcenter.intel.com)
Operating Systems: Microsoft Windows 7, Microsoft Windows 8, Linux
Intel® Smart Connect Technology
0°C to +80°C

No driver CD accompanied.
Make sure you download and install the proper driver before you install the adapter.

MP2H Brief	Taiwan 1	Taiwan 2	China
Dimension V2.3	Taiwan 1	Taiwan 2	China
Schematic	Taiwan 1	Taiwan 2	China
MP2H-7260 User Manual	Taiwan 1	Taiwan 2	China
PCIE WiFiCardsSelection Guide	Taiwan 1	Taiwan 2	China
