P34SF-USB

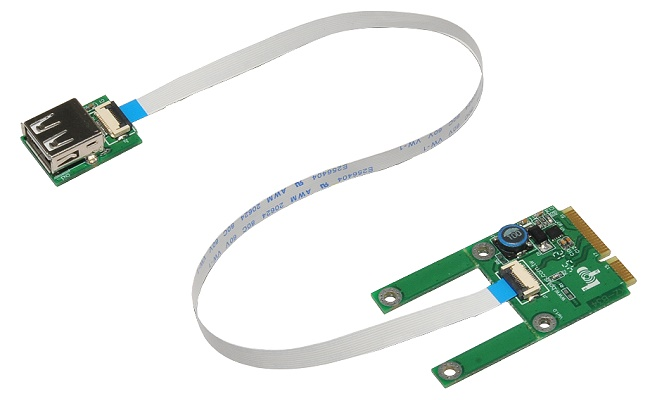

P34SF-USB Extender is a debug and test tool to extend USB port from MiniCard (mPCIe) slot. Design the FFC (Flat Flexible Cable) cable for flexible use.

Not only for Full-size MiniCard adapter but also Half-size MiniCard by removing extra Full-size extensions.

The extender is designed to minimize the signal degradation effects of the extender by proven design techniques. It’s also a powerful tool for engineers and factory tests.

manufacture:Bplus

P34SF-USB (KZ-B34-USB):FFC cable length 20cm ,Width 6mm, Thickness 0.1mm

Specification:

PCI Express™ Mini Card Electromechanical Specification Revision 1.0
USB Specification, Release 2.0 Hi-Speed (Up to 480Mbps)
Power Supply: 5V (For USB, from FDD 4 pin).

Requirements:

PCI express mini card slot

Function:

Easy Installation, Plug and Play
No drivers needed for this USB to MiniCard Extender
Support Windows 2000/Server 2003/XP & XP 64-bit/Vista & Vista 64-bit/ 7 & 7 64-bit / 8 & 8 64-bit
Supports USB 2.0 based MiniCard slot
Supports USB 2.0 480 Mb/s data rate

Warning:
If MiniCard slot on the host does not support USB interface, the interface can not be supported.
